Müpro Wall Bracket Galvanized 640 mm

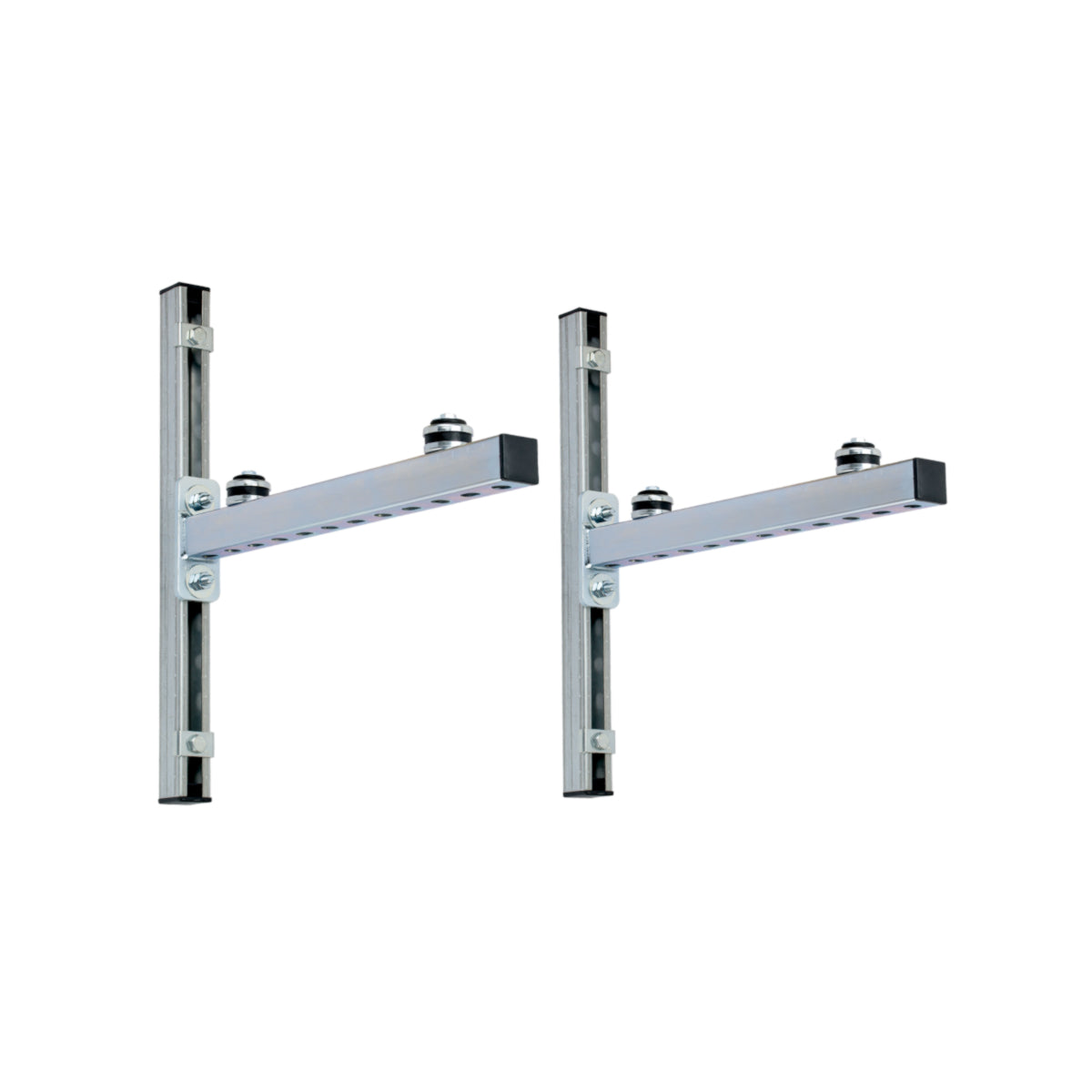

MPC console set with sound insulation, length: 640mm, galvanized.

Technical Data

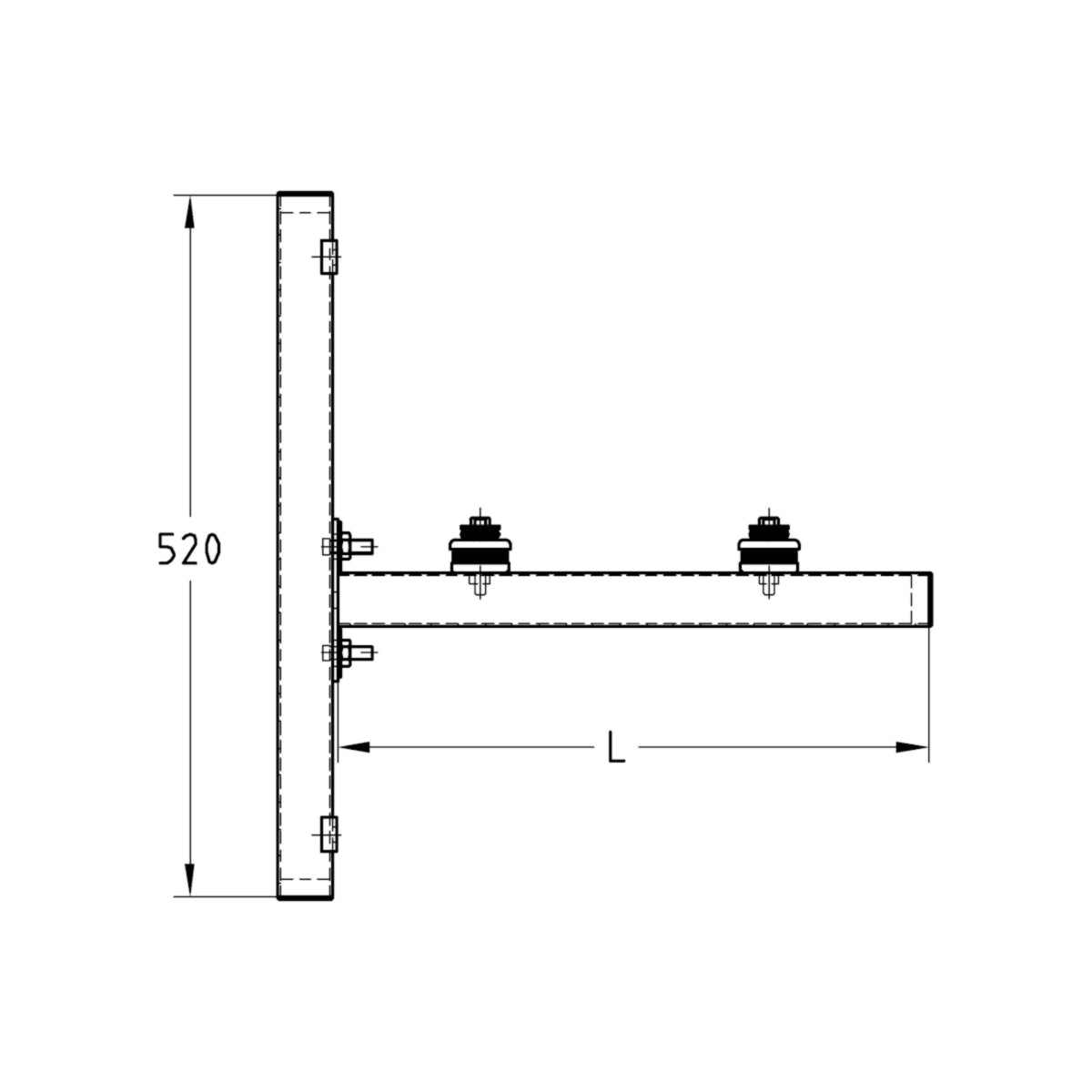

• Bracket length L = 640 mm
• Load capacity: 150kg
• 2 System Rails 38/40 | 520 mm
• 2 Rail Brackets 38/40
• 4 Rubber Buffers 43 x 11 mm
• 6 End Caps
• 4 Hammer Head Bolts M10/30
• 4 Washers 8.5 x 28 mm
• 4 U-Washers 8.5 x 28 x 1 mm
• 4 Sliding Nuts M8 for Profile 38/40
• 4 Hex Head Screws M8/55
• 4 Retaining Clips M10 for Profile 38/40

General Features

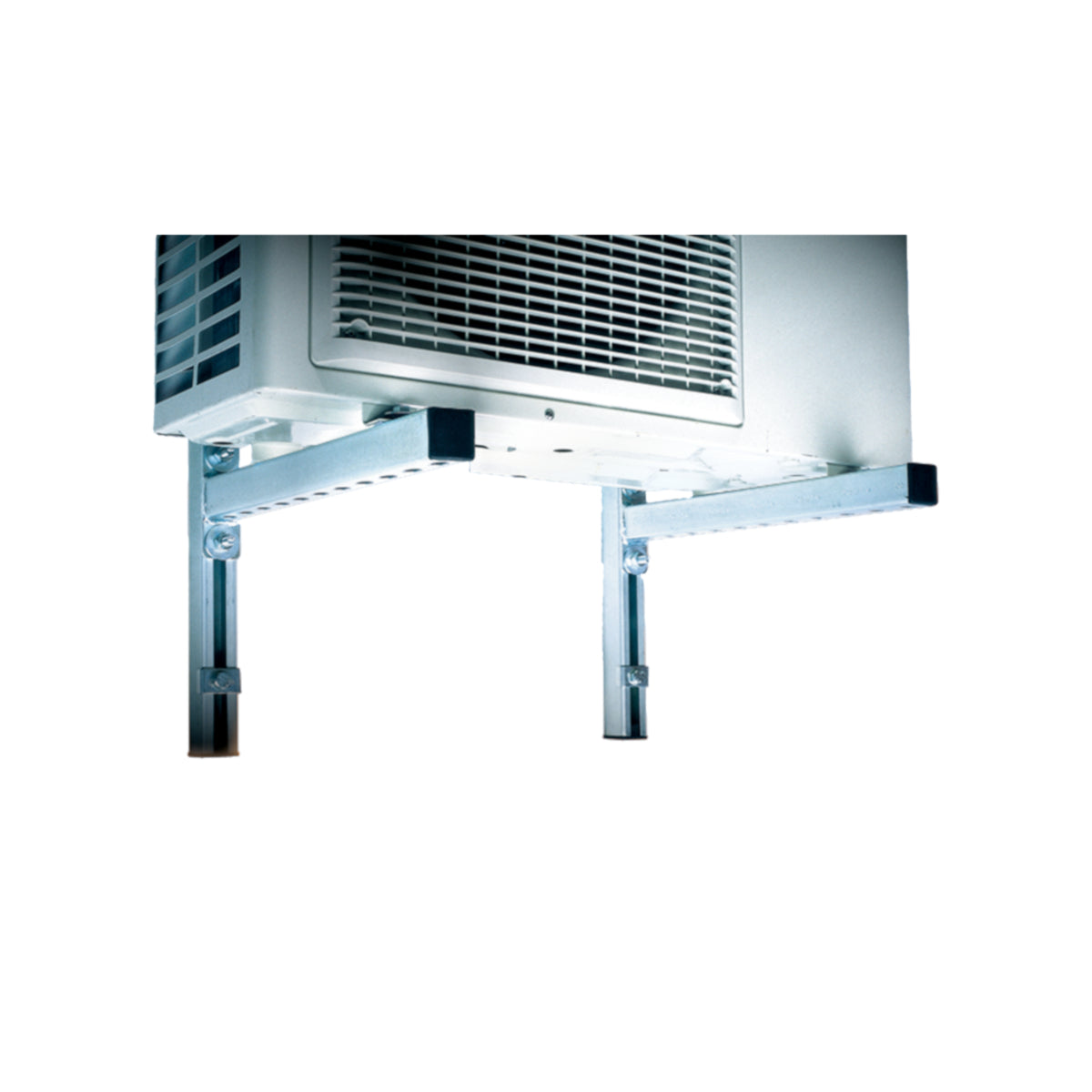

• For sound-insulated mounting of units such as ventilation and air conditioning units, pumps, domestic water systems, etc. on the wall
• Quick assembly thanks to pre-assembled components
• Cut-to-size and back-perforated system rails with end caps
• Various bracket lengths available (depending on unit type)
• Easy height adjustment of the brackets using sliding hammer head bolts
• Variable adjustment of fastening distances on the bracket using sliding nuts
• Average sound level reduction of 17 dB (A) thanks to sound buffers
