Mini Orange Silent+ Aspen FP3430

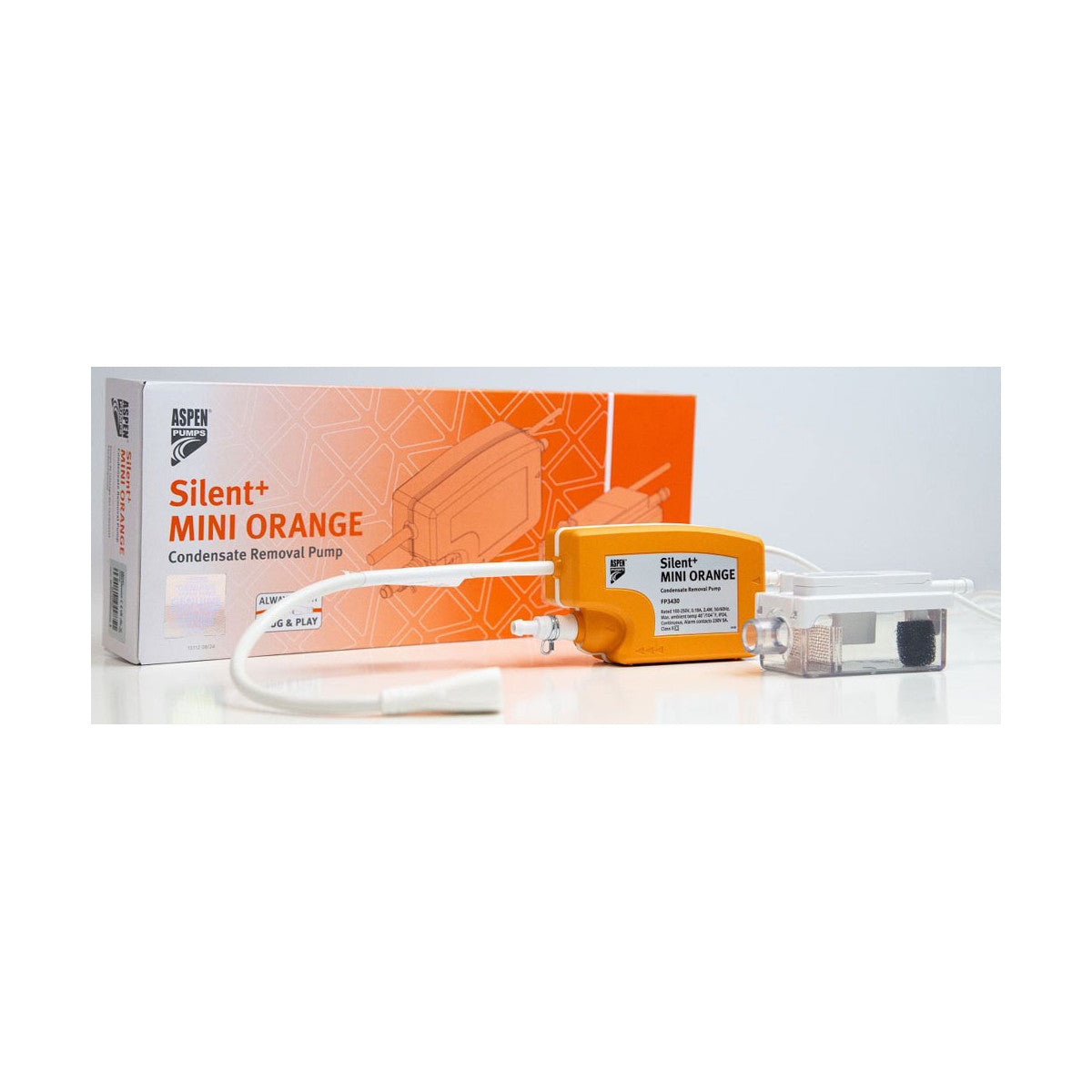

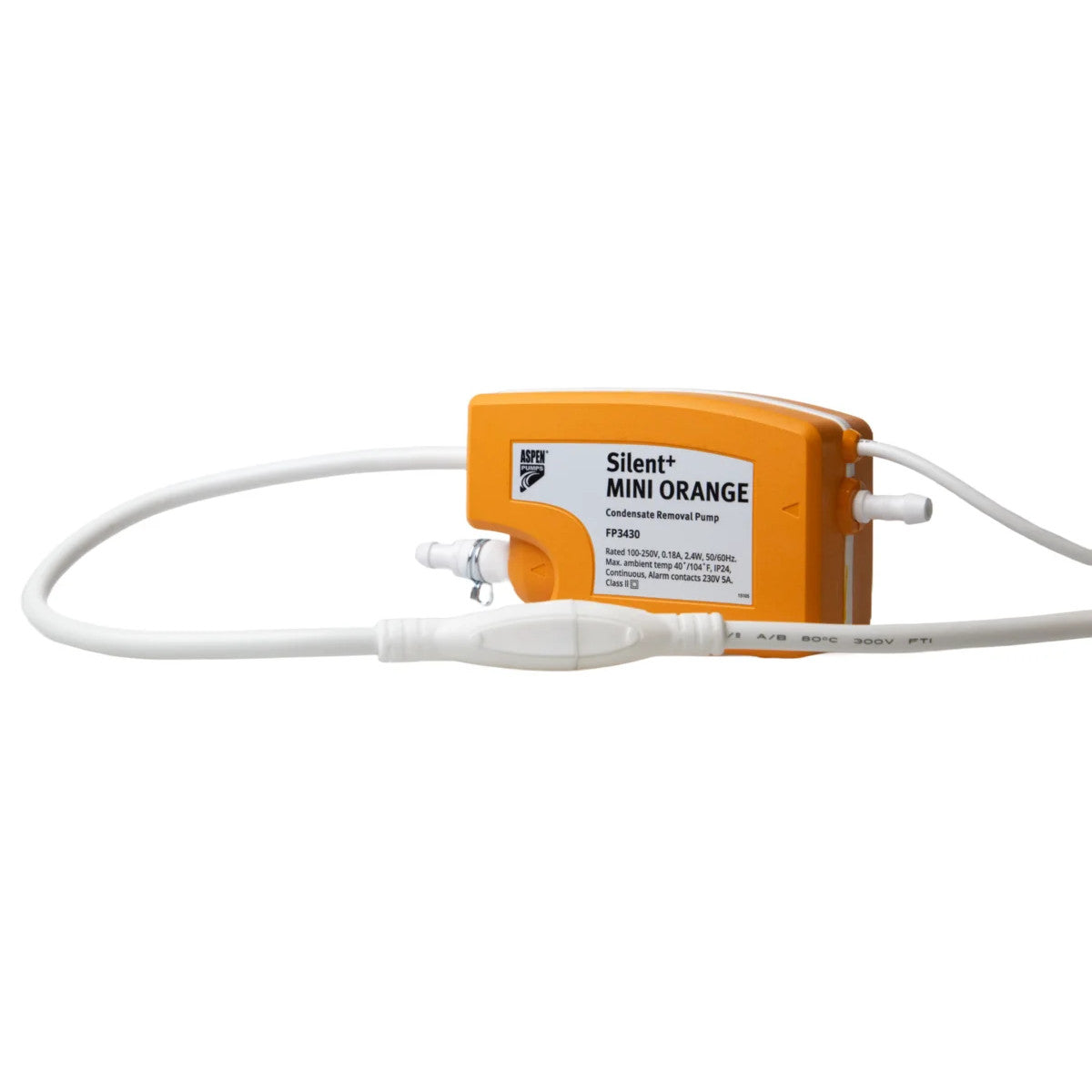

Condensate Pump Mini Orange Silent+ Gen. 5 Aspen FP3430

The world's best Mini Orange pump is now more powerful than ever. Thanks to proven 5th generation pump technology, the Silent+ Mini Orange achieves a sound level of only 16 dB(A). So quiet that no additional noise or vibration dampeners are required. Capacitive sensor technology ensures intelligently adaptive flow rates. It works effortlessly in the background, so you can install it and forget about it. Ideal for wall-mounted units, ducted units, floor convectors, ceiling cassettes; mini-split systems. Ideally installed in a ceiling void or a similar area. Silent+ Mini Orange. Brilliantly Quiet.

The new Mini Orange Silent+ FP3430 condensate pump from Aspen was designed for installation in suspended ceilings, behind split wall-mounted units, or in plastic ducts. Due to its particularly slim design, it can also be installed in tight spaces at the installation site. The condensate pump therefore offers a lot of flexibility during installation. It is also characterized by particularly quiet operation, made possible by an innovative high-performance motor with sound insulation. The condensate outlet is connected to the float switch and the pump is mounted inside the wall unit.

Technical Data

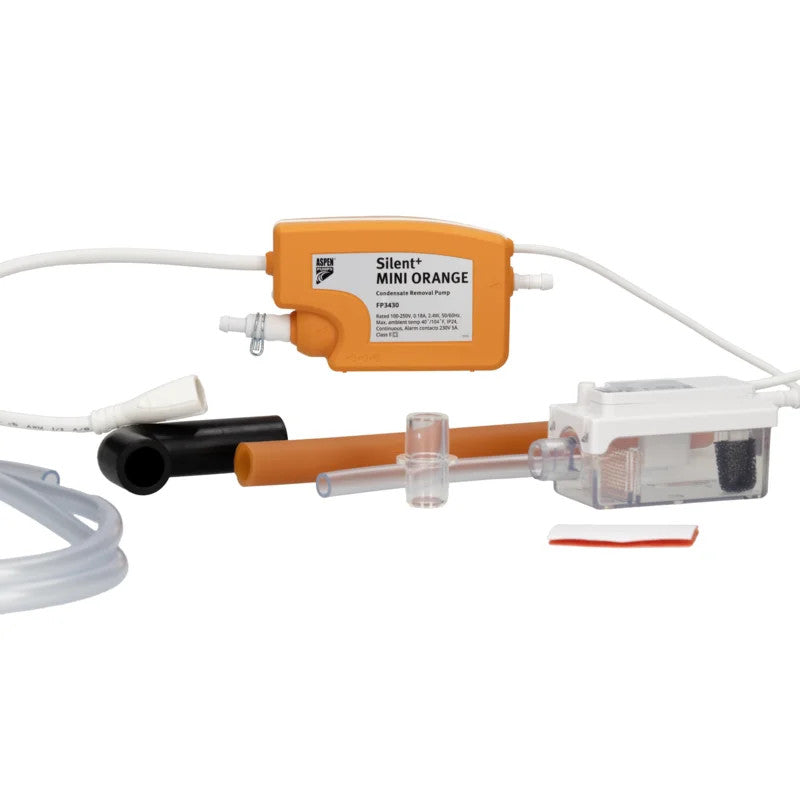

• Reservoir (incl. filter and lid)
• 1.5 m Plug & Play cable
• 1.5 m clear PVC hose
• 1.5 m clear vent hose
• Inlet hose: 150 mm orange
• Drain connection kit: straight connector and rubber elbow

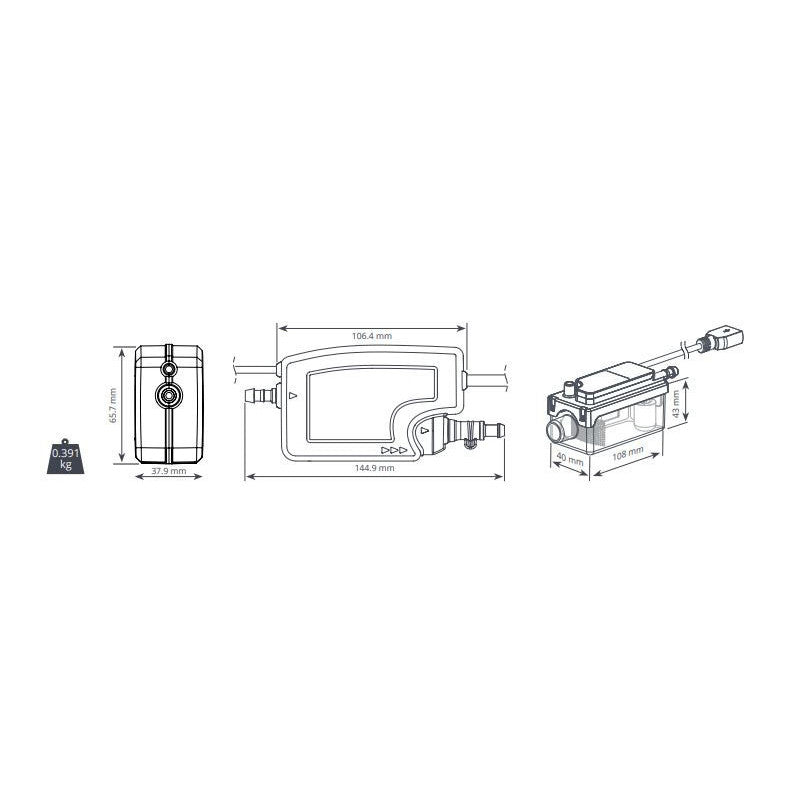

• Dimensions: H 65.7 mm x W 144.9 mm x D 37.9 mm

General Features:

• max. flow rate: 30l/h
• max. head: 10m
• Power supply: 230V 50/60 Hz, 2.4 W
• Sound level: 16 dB(A)
• Outlet: 6 mm
• Dimensions HxWxD: 65.7 x 144.9 x 37.9 mm
