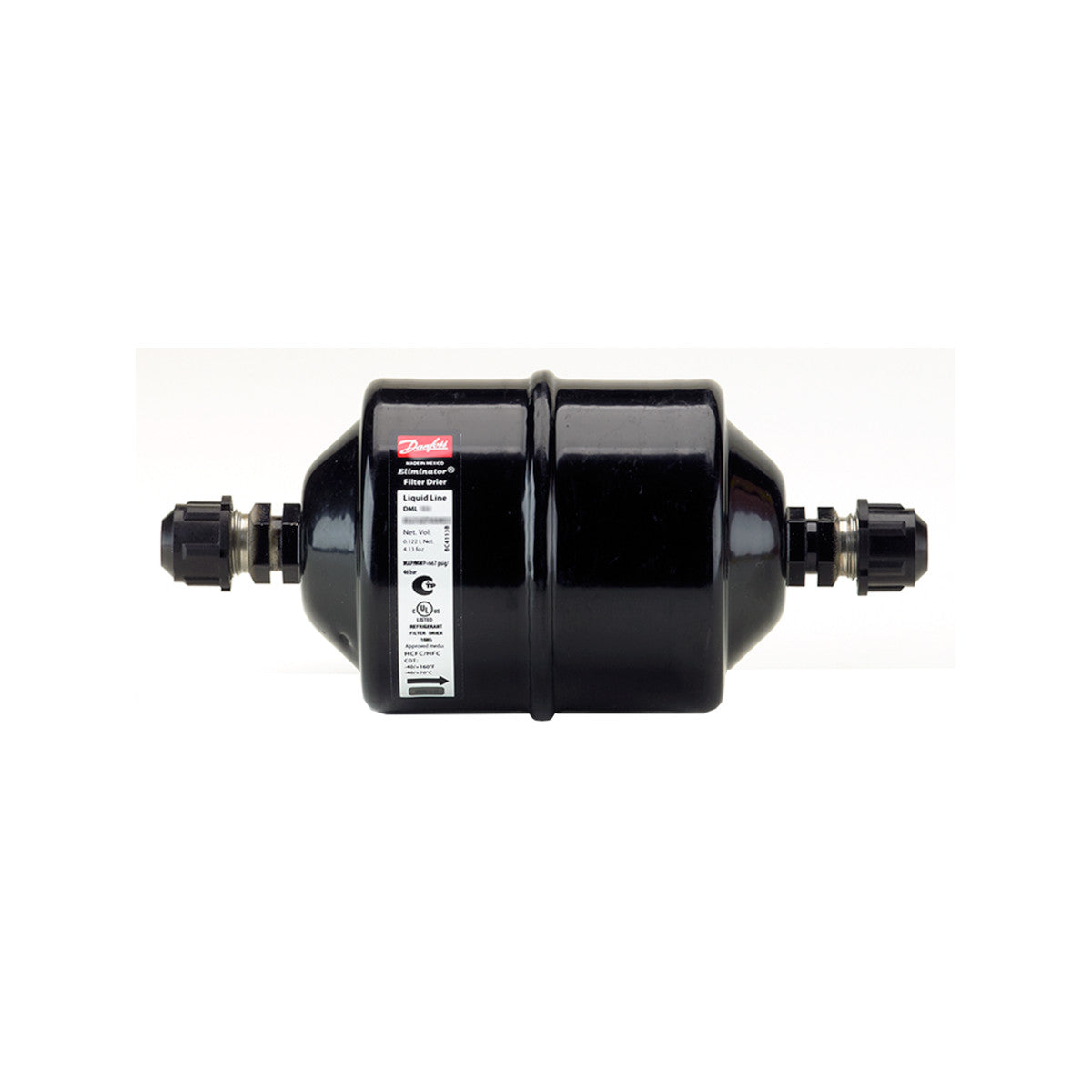

DML082 Filter Drier Danfoss

Filter Drier DML 082 / 023Z5039 Danfoss

Filter Drier DML 082 / 023Z5039 Danfoss Flare 6 mm, 1/4" SAE, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyol ester (POE) or polyalkylene glycol (PAG) oils.

Technical data

• thermally stable up to 120°C
• max. allowable operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 7/16" UNF, 1/4" SAE
• length: 145mm
• solid insert surface: 131cm2
• solid insert volume: 104cm3
• drying capacity refrigerant R134a: 24°C: 12.6g, 52°C: 11.9g
• drying capacity refrigerant R404A: 24°C: 13.6g, 52°C: 12.9g
• drying capacity refrigerant R507A: 24°C: 13.8g, 52°C: 12.8g
• drying capacity refrigerant R407C: 24°C: 12.7g, 52°C: 11.7g
• drying capacity refrigerant R410A: 24°C: 11.5g, 52°C: 10.6g
• liquid capacity: R134a: 7.68kW, R404A: 5.44kW, R507A: 5.27kW, R407C: 7.85kW; R410A: 8.02kW
