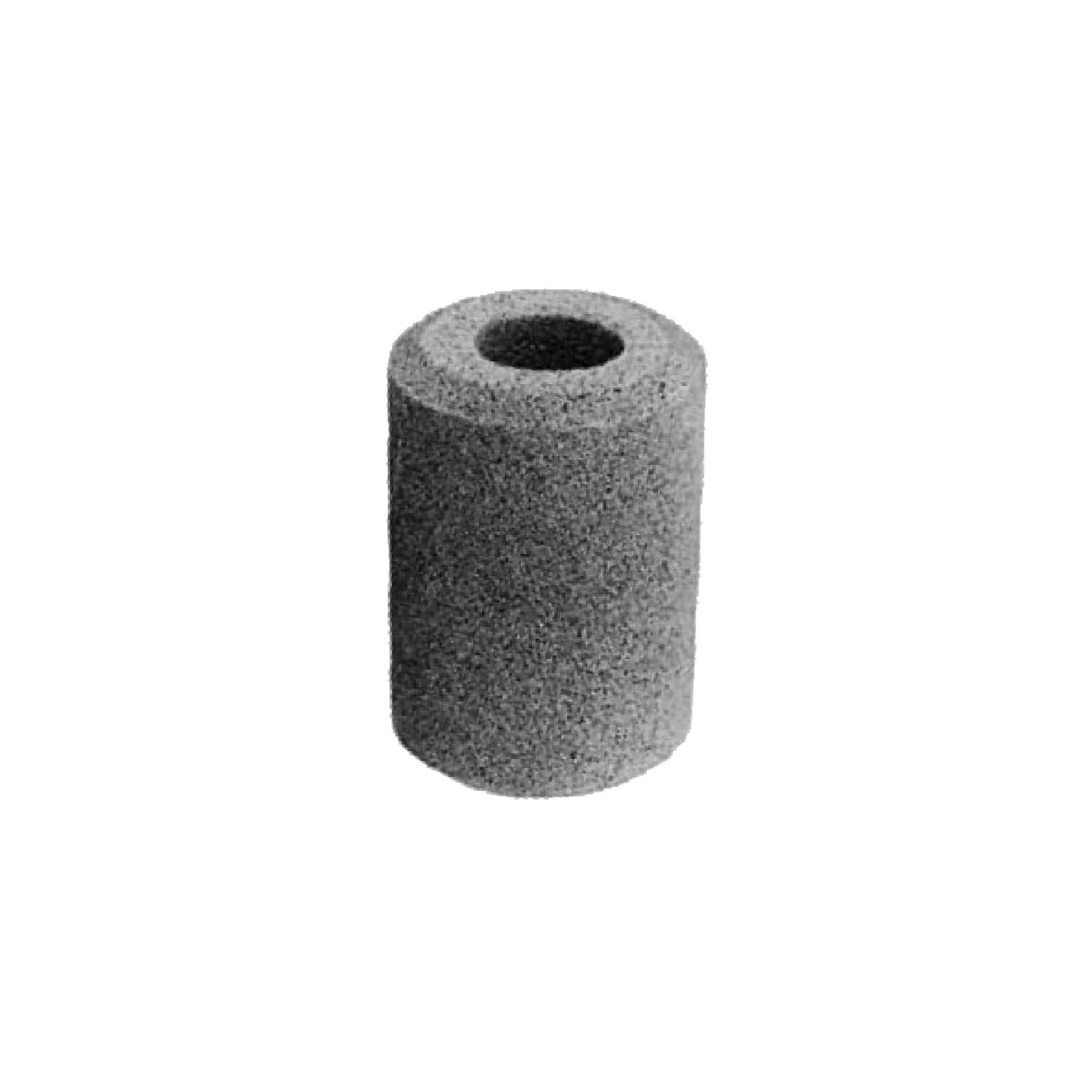

S48 Block Insert 003508 Alco

Alco Block Insert / Filter Insert / Filter Cartridge S48 | 003508 for ADKS-Plus and FDK Filter Housings from Alco

Technical Data

• Connections: 22 mm ODF
• Length: 246 mm
• Outer diameter: 80 mm
• Solid insert: Surface area: 378 cm³, Volume: 494 cm³
• Drying capacity R134a: 24°C: 79.7 g, 52°C: 73.0 g
• Drying capacity R407/R507A: 24°C: 82.3 g, 52°C: 75.9 g
• Drying capacity R407C: 24°C: 56.7 g, 52°C: 48.9 g
• For all F-gas refrigerants
• Liquid and suction gas for high humidity
• Acid absorption capacity: 16.3 g
• Optimal mixture of molecular sieve and activated alumina
• High water and acid absorption capacity
• Fine filtration down to 25 micron
