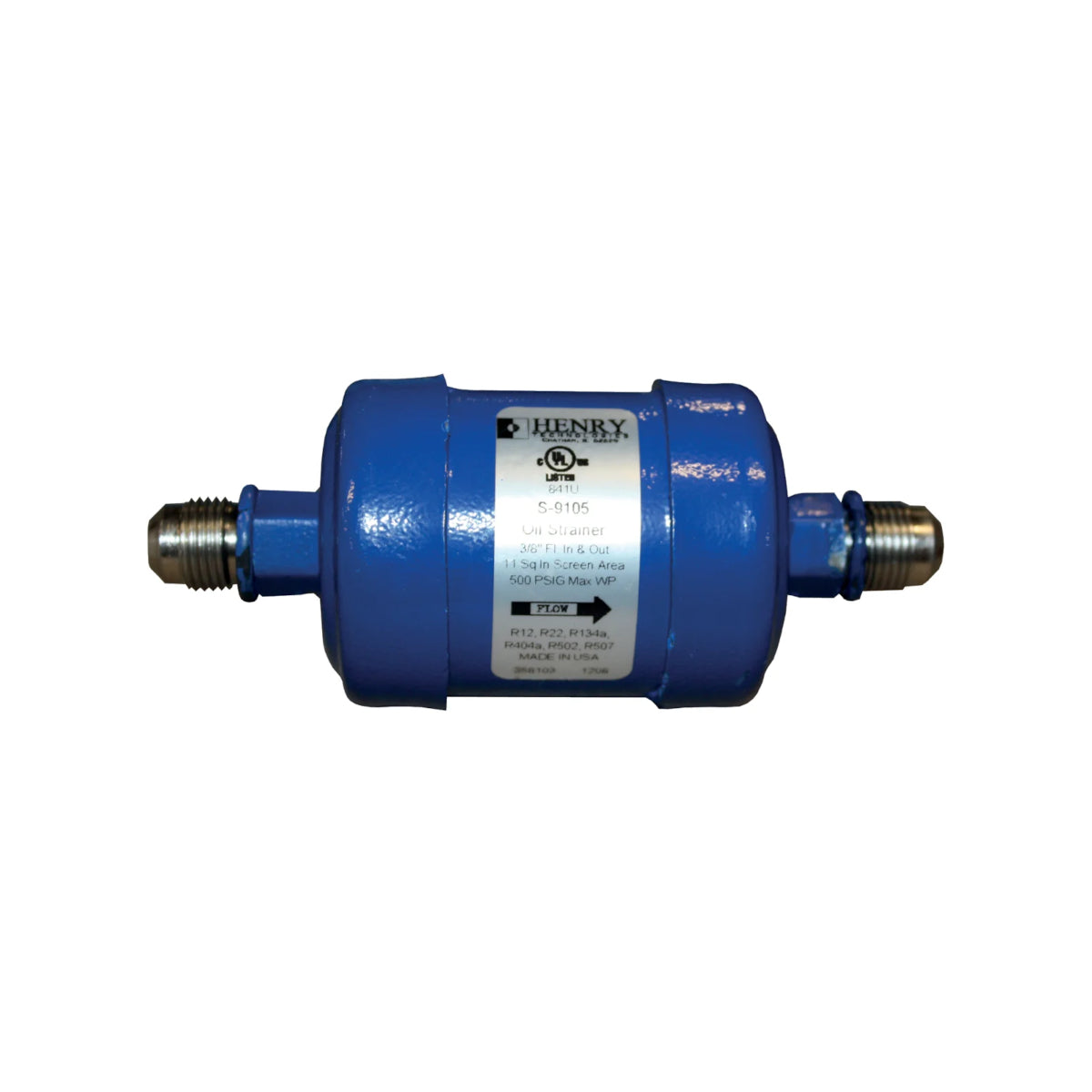

Oil filter SH-9105

Oil filter SH-9105 AC&R / HENRY 3/8-SAE Flare

Specifications

• Inlet / Outlet: 3/8" SAE
• Dimensions: Length: 153 mm, Diameter: 66 mm
• max. operating pressure: 45 bar
• Area: 91 cm²
• permissible operating temperature: 0 °C to +100 °C
• Sieve size = 71cm² / 7095 mm filter surface, 100 mesh
• large screen for maximum capacity and long service life
• Stainless steel screen
• low pressure drop
• SAE or ODS connections available

The oil filter serves to remove foreign matter from the refrigerant oil, so that the oil level regulators and compressors are protected.

The S-91 series oil filters are suitable for both low-pressure and high-pressure oil control systems. The filters are suitable for HCFC and HFC refrigerants and their associated oils. Although the S-91 series filters are also suitable for HFC/POE combinations, AC&R recommends the S-40 series oil filters (possibly with integrated dryer). The use of an oil filter or oil filter dryer provides a higher level of system protection than a mesh screen filter. The oil filter should be installed directly upstream of a mechanical oil level regulator to protect the float-operated needle valve from dirt.

Features:

• large screen for maximum capacity and long service life
• Stainless steel screen
• low pressure drop
• SAE or ODS connections available
