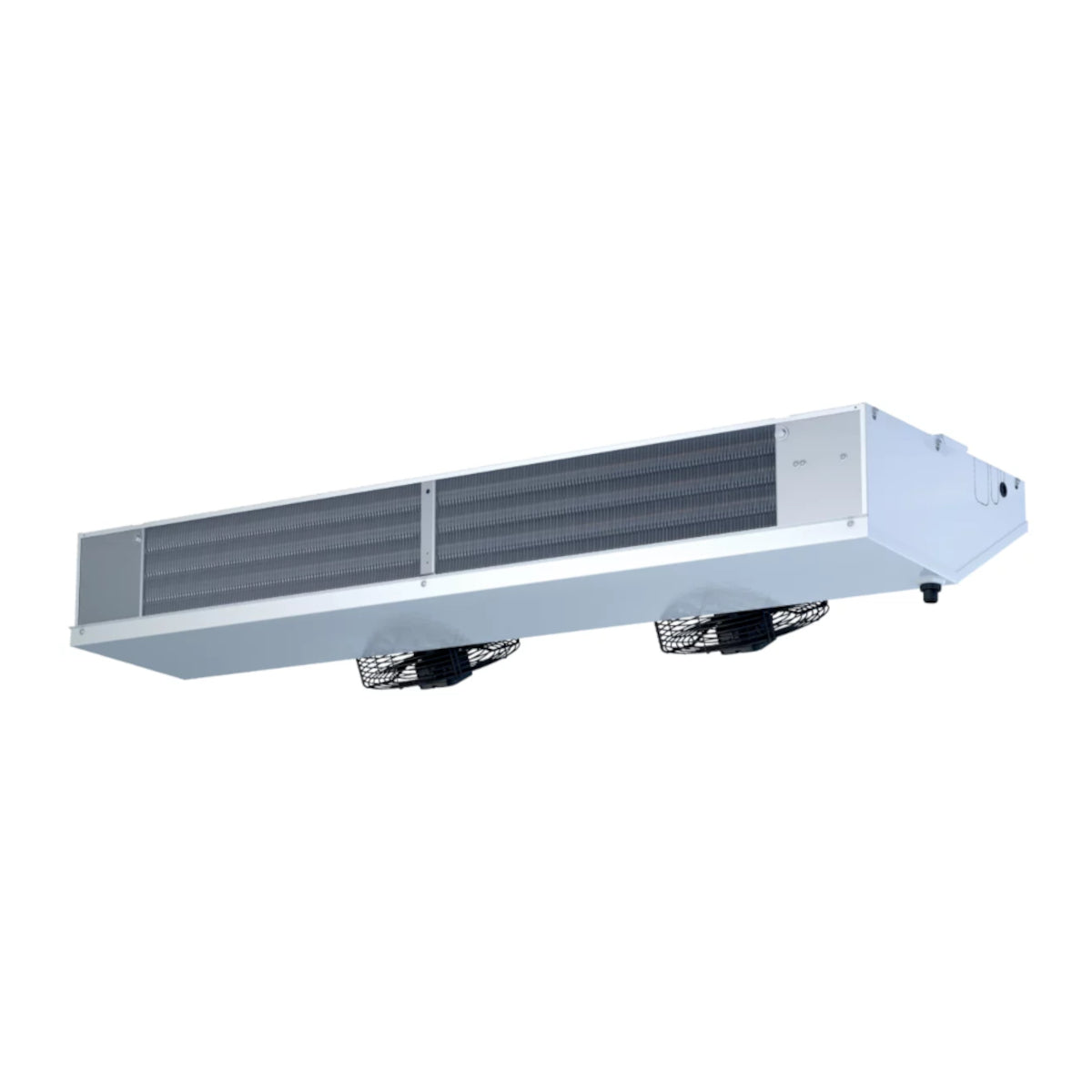

MCK-302-5BE-HX32-1 / DEBE082D ceiling air cooler Kelvion

MCK-302-5BE-HX32-1 / DEBE082D ceiling air cooler Kelvion

Ceiling air cooler MCK-302-5BE-HX32-1 (100742491) from Kelvion with defrost heater with a mains voltage of 230V/1/50/60Hz. Replaces model DEBE082D from Küba.


  • food-safe thanks to aluminum housing

  • easily accessible components for optimal cleaning

  • compact & flat design

excl. VAT incl. VAT
2.319,00 € 2.759,61 € incl. VAT
excl. VAT 0,00 € incl. VAT 2.319,00 € excl. VAT 2.759,61 € incl. VAT
Sale Sold out
Available immediately
1–3 working days
zzgl. Versandkosten

ArtNr 4421204 Hersteller Küba / Kelvion Datenblatt

  • 12 months material warranty
  • Purchase on account
  • 14-day return policy
View full details

Product description
Kelvion air cooler / Ceiling evaporator MCK-302-5BE-HX32-1 with defrost heater
    The Kelvion air cooler is a powerful solution for a wide range of commercial applications, featuring a defrost heating system. Its compact design makes it ideal for complex cooling tasks in small and low-ceilinged spaces. The MCK is capable of withstanding the most challenging environmental conditions, such as frequent door openings, open sales areas, or demands for low noise levels. The Kelvion MCK-302-5BE-HX32-1 replaces the Küba ceiling fan model DEBE 082D.
      Technical details of the evaporator:
      • Power: 3,60 kW at DeltaT = 8K To = 0°C
      • Power: 2,86 kW at DeltaT = 7K To = -18°C
      • Lamella spacing: 7.0 mm
      • Cooling surface area: 21,2 m²
      • Air flow rate: 2440 m³/h
      • Throwing distance / Blowing distance: 12 m
      • Inlet/outlet connections: 12 mm / 22 mm
      • Number x dimeter of fans: 2 x 300 mm
      • Fan voltage: 230 V 50/60 Hz
      • Fan power: 77 W
      • Current consumption: 0.35 A
      • Height, width, depth, length: 260 mm, 1780 mm, 660 mm, 672 mm
      • OEM number: 100742491
      Details of the design
      • Aluminum housing, steel sendzimir
      • Food grade
      • Easy to clean due to smooth, powder-coated surface
      • Foldable and removable drip tray
      • Removable side panels
      • Integrated additional intermediate plate in the drip tray
      • Axial fans with 300 mm diameter
      • food-safe thanks to aluminum housing
      • easily accessible components for optimal cleaning
      • compact & flat design

      General characteristics

      • Versandklasse: Freight forwarder
      • Marke: Küba / Kelvion
      • Gewicht: 50.0 kg
