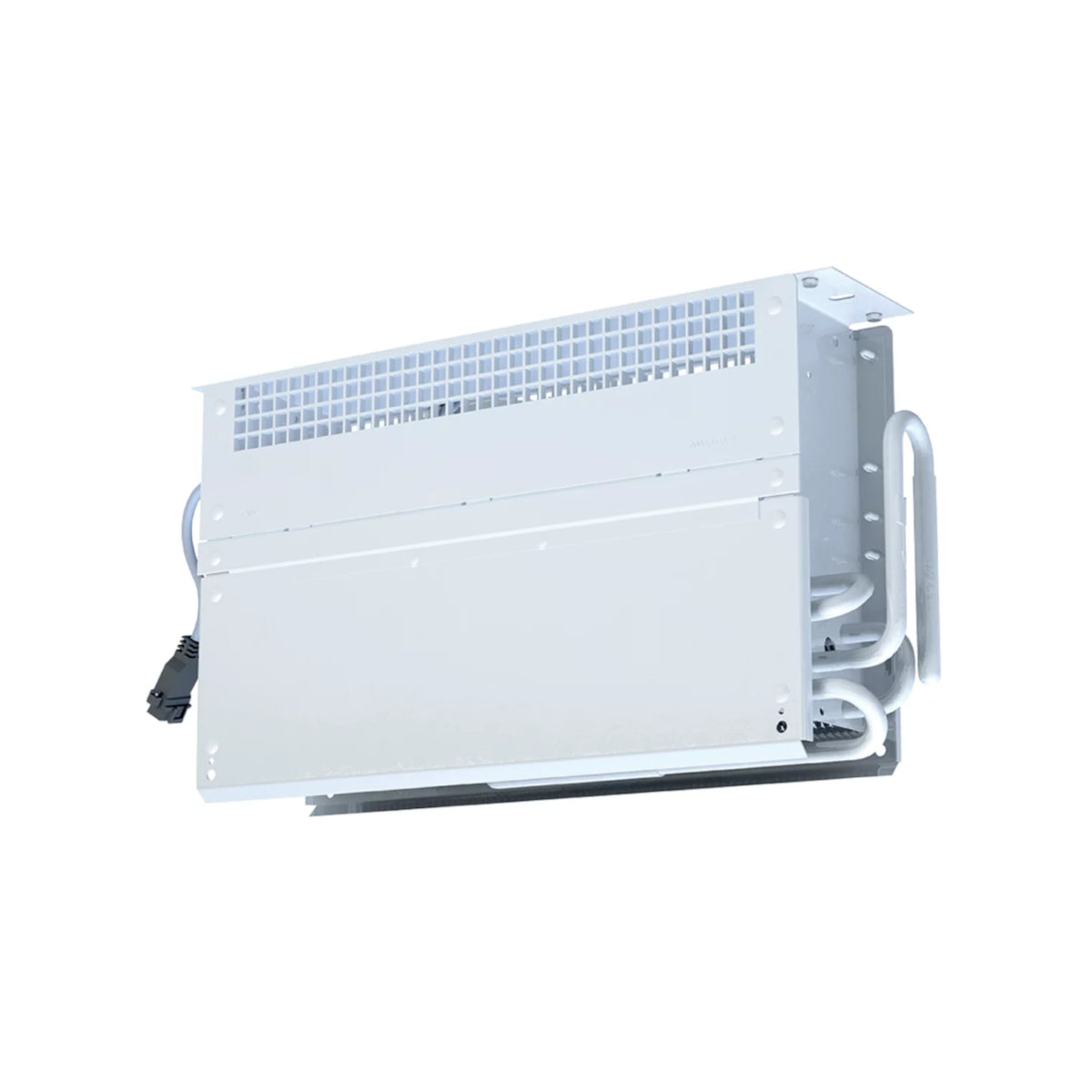

FMA022D Counter Evaporator Küba / Kelvion

Counter Evaporator FM-092-3AN-FX32-2 Multi-Gas for Refrigerated Display Cases Kelvion Küba Gastro

Counter Evaporator 260W FM-092-3AN-FX32-2 replaces air cooler FMA022D Küba Kelvion 100455004 The gastro FM / gastro slim FM air coolers from Kelvion / Küba deliver maximum performance for refrigerated counters, dispensing counters, and refrigerated worktops. They can be mounted either on the side wall, blowing out unilaterally, or behind the central support, blowing out bilaterally. The patented air straightener ensures even temperature distribution in the refrigerated display case, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be retrofitted with minimal effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical Data

• max. operating pressure: 32 bar
• Rated power R404A at 50Hz: 0.27 kW at + 5°C to 10K
• Rated power R454C at 50Hz: 0.35 kW at + 5°C to 10K
• Rated power R290 at 50Hz: 0.28 kW at + 5°C to 10K
• Surface area: 1.8 m²
• Air flow rate: 165 m³/h
• Tube volume: 0.3 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Fan diameter: 90mm
• Voltage: 230V/1/50/60Hz
• Speed: 4500 rpm
• Power consumption: 7.1W
• Operating current: 0.05 A

Design Details:

• Smooth aluminum housing
• Food-safe and suitable for open or acidic goods thanks to powder coating
• Easy to clean due to removable housing
• FMA side discharge
• FMOA top bilateral discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
