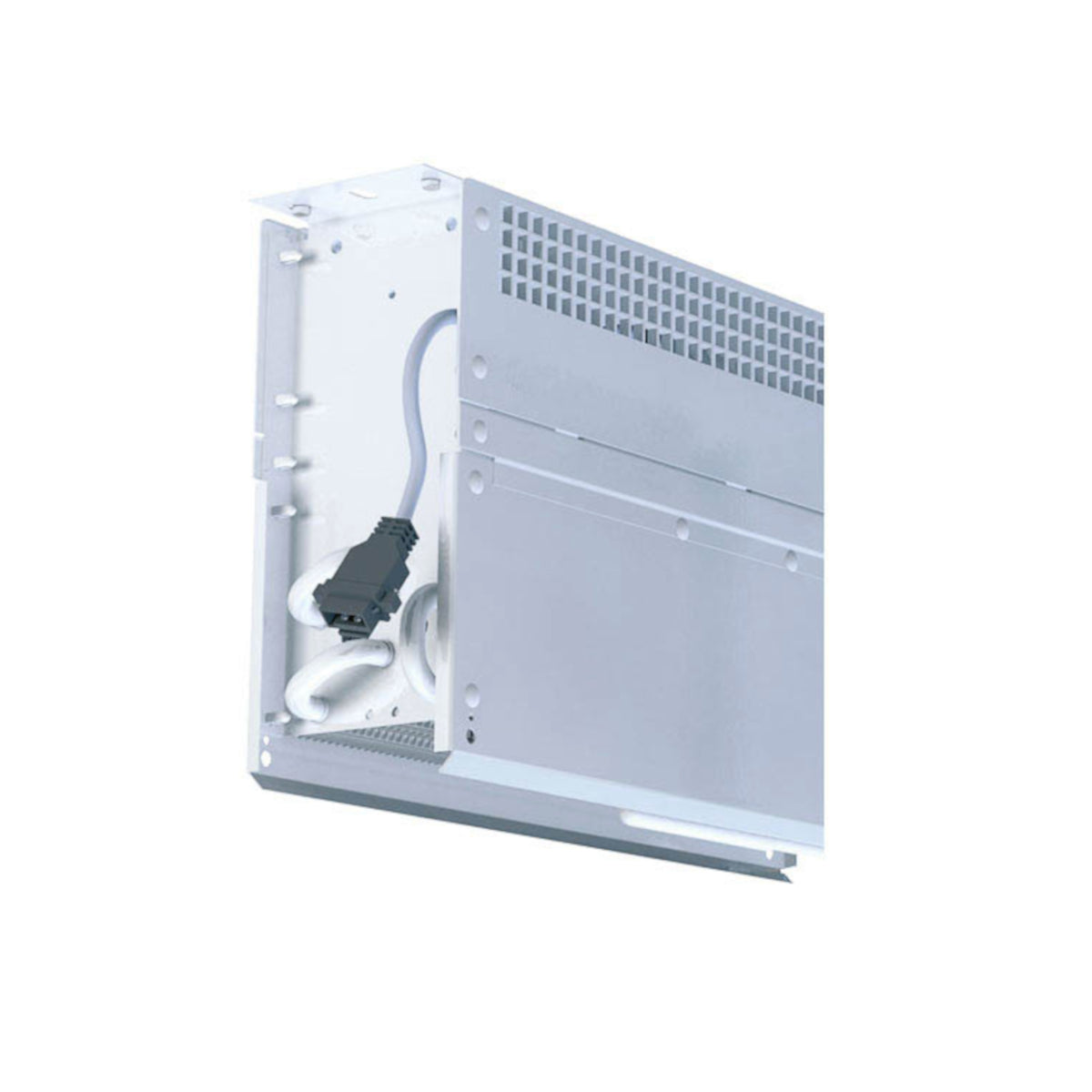

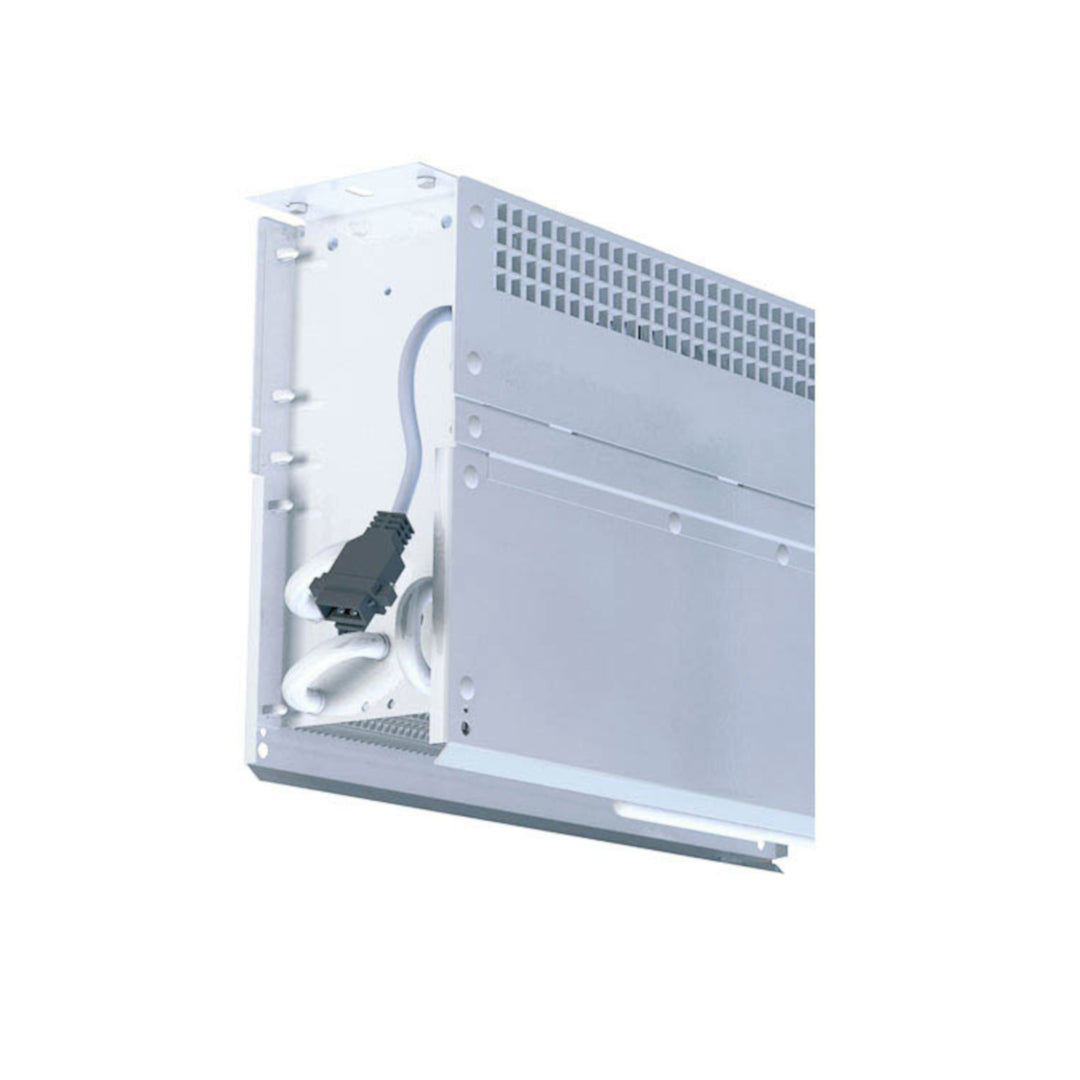

FMOA011D Air Cooler Küba / Kelvion

FMOA011D Air Cooler Küba / Kelvion

The gastro FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters, and refrigerated tables. It can be mounted on the side wall, blowing out on one side, or behind the central mullion, blowing out on both sides. The patented air straightener ensures even temperature distribution in the refrigerated cabinet, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be retrofitted with little effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements. Successor FM-091-2AN-FX32-2

Technical Data

• Max. operating pressure: 32 bar
• Nominal capacity R404A at 50Hz: 0.15 kW at +5°C to 10K
• Surface area: 1.2 m²
• Air flow rate: 85 m³/h
• Tube volume: 0.3 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Fan diameter: 90mm
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Execution Details:

• Housing made of smooth aluminum
• Food-safe and, thanks to powder coating, also suitable for open or acidic goods
• Easy to clean due to removable housing
• FMA side discharge
• FMOA top, double-sided discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
