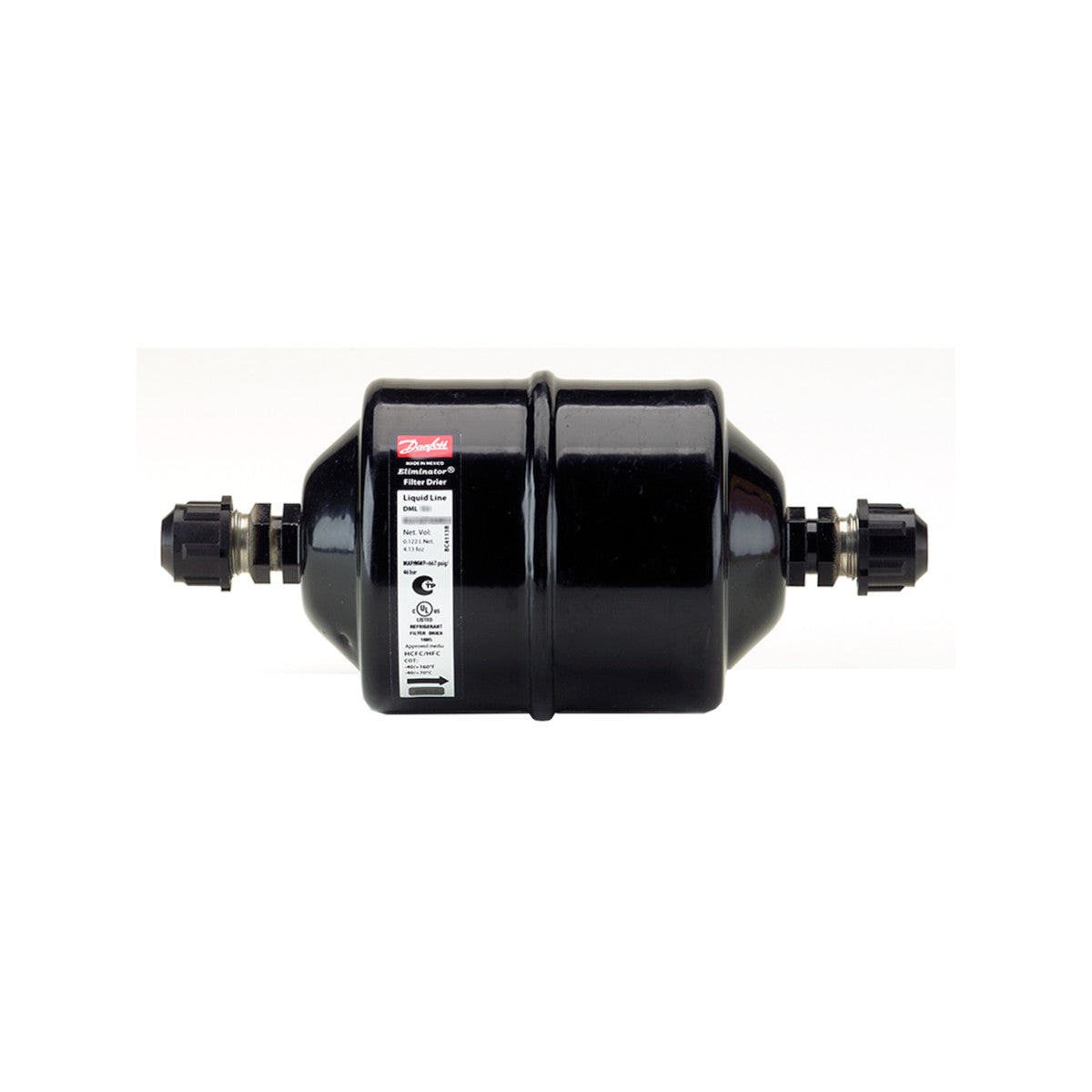

DML304 Filter Drier 023Z0050

Filter Drier DML304 12 mm 1/2" UNF Flare Danfoss 023Z0050

Filter Drier DML 304 / 023Z0050 Danfoss Flare 12 mm, 1/2 UNF, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyolester (POE) or polyalkylene glycol (PAG) oils.

Technical Data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• Connection: 3/4" UNF, 1/2" SAE
• Length: 251mm
• Solid insert surface: 378cm2
• Solid insert volume: 494cm3
• Drying capacity refrigerant R134a: 24°C: 57.7g, 52°C: 54.6g
• Drying capacity refrigerant R404A: 24°C: 62.0g, 52°C: 58.8g
• Drying capacity refrigerant R507A: 24°C: 63.1g, 52°C: 58.3g
• Drying capacity refrigerant R407C: 24°C: 57.8g, 52°C: 53.4g
• Drying capacity refrigerant R410A: 24°C: 52.6g, 52°C: 48.5g
• Liquid capacity: R134a: 32.51kW, R404A: 25.00kW, R507A: 24.26kW, R407C: 35.06kW; R410A: 37.19kW
