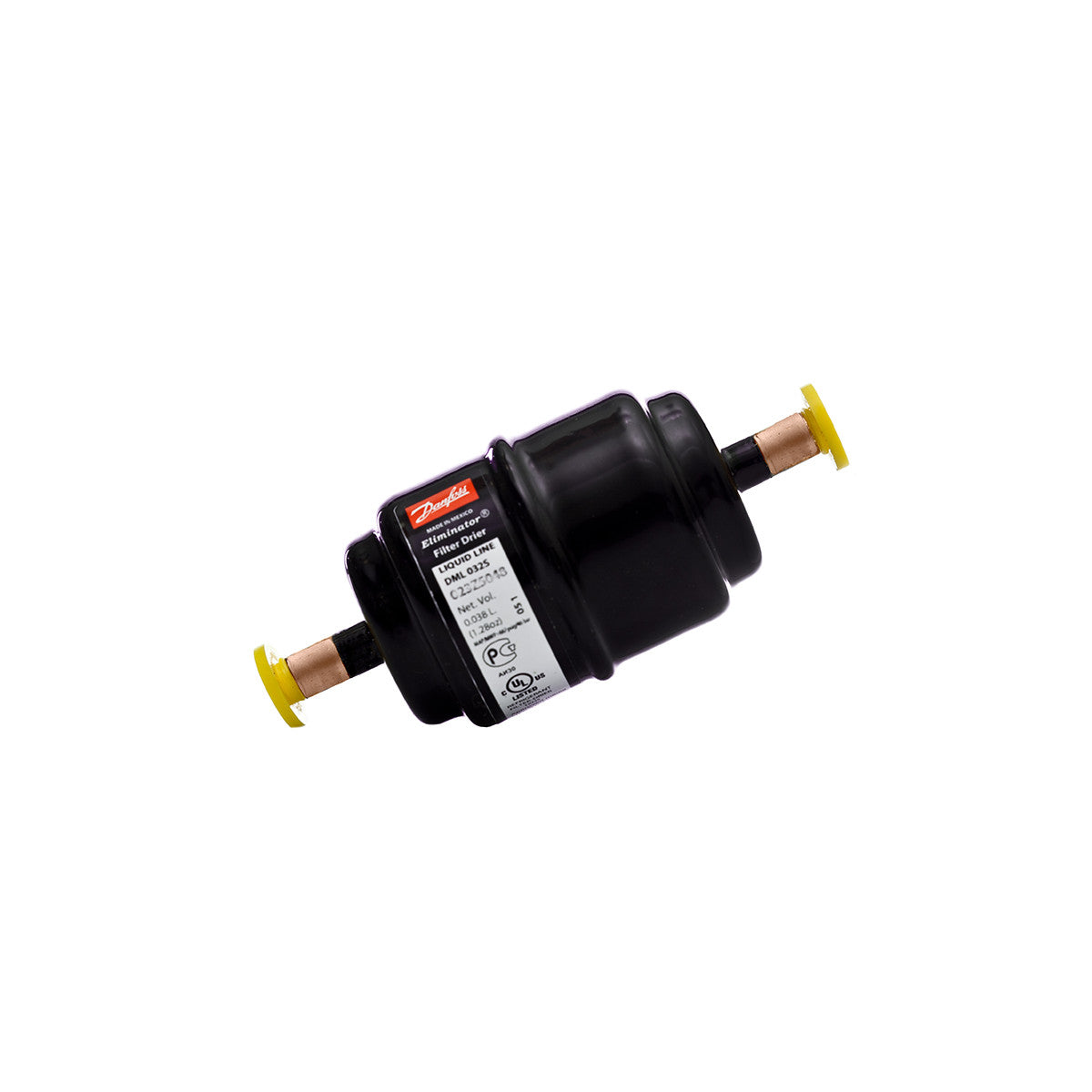

DML164S Filter Drier 023Z4579 Danfoss

Filter Drier DML164s Danfoss 023Z4579 | 023Z4580 12 mm Solder

Filter drier DML 164s 023Z4579 | 023Z4580 Danfoss 12 mm Solder / ODF, Eliminator with copper-plated steel solder connection, 100% 3A molecular sieve, optimized for HFC refrigerants and POE or PAG oils.

Technical Data

• thermally stable up to 120°C
• max. allowable operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 12 mm ODF
• length: 152mm
• solid core surface area: 220cm2
• solid core volume: 234cm3
• drying capacity refrigerant R134a: 24°C: 27.7g, 52°C: 26.2g
• drying capacity refrigerant R404A: 24°C: 29.8g, 52°C: 28.3g
• drying capacity refrigerant R507A: 24°C: 30.4g, 52°C: 28.0g
• drying capacity refrigerant R407C: 24°C: 27.8g, 52°C: 25.7g
• drying capacity refrigerant R410A: 24°C: 25.3g, 52°C: 23.3g
• liquid capacity: R134a: 32.19kW, R404A: 23.54kW, R507A: 22.81kW, R407C: 33.60kW; R410A: 34.83kW
