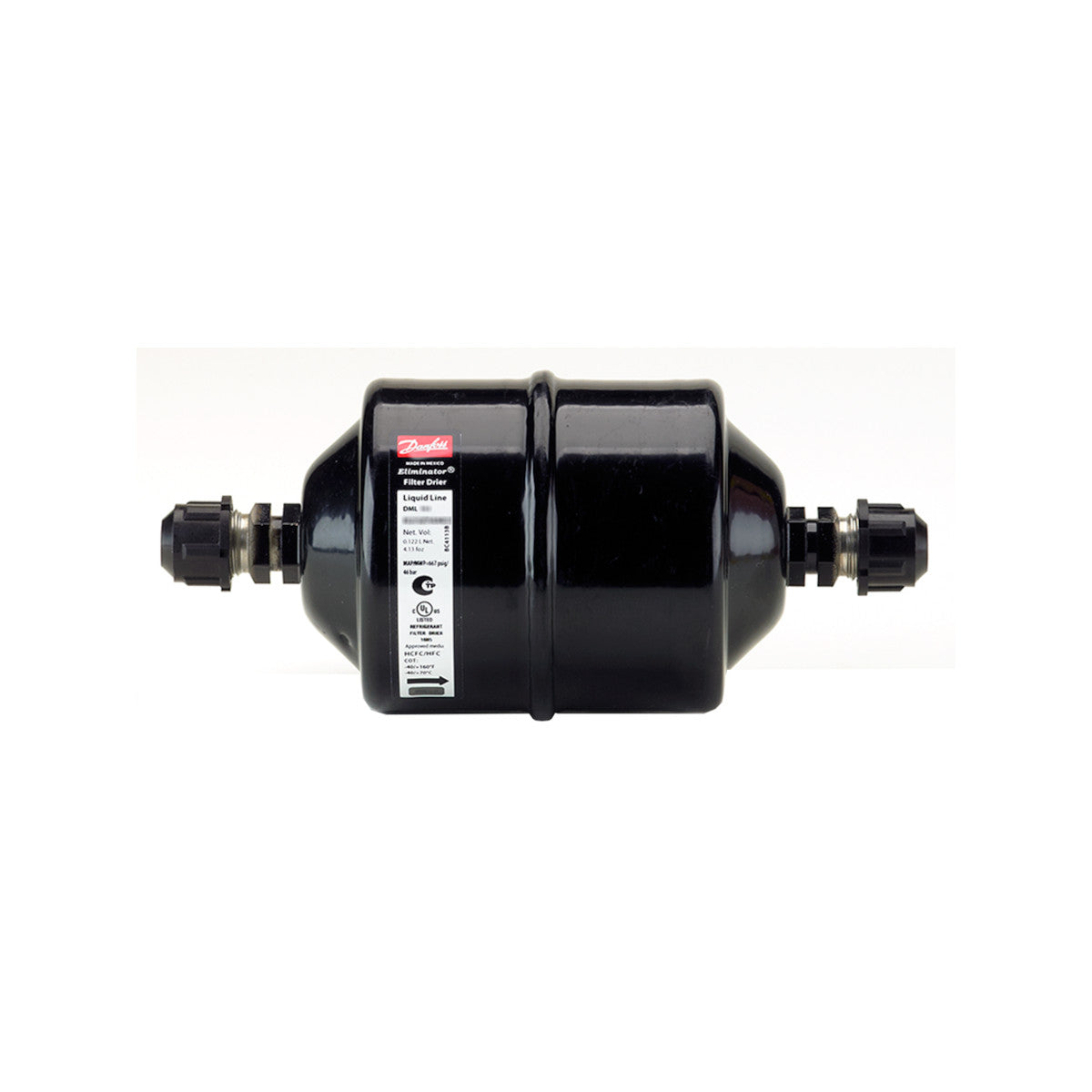

DML162 Filter Drier Danfoss

Filter Drier DML162 6 mm flare, 1/4" SAE Danfoss 023Z504291

Filter drier DML 162 / 023Z504291 Danfoss flare 6 mm, 1/4" SAE, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyol ester (POE) or polyalkylene glycol (PAG) oils.

Technical data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• Temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• Connection: 7/16" UNF, 1/4" SAE
• Length: 154mm
• Solid insert surface: 220cm2
• Solid insert volume: 234cm3
• Drying capacity refrigerant R134a: 24°C: 27.7g, 52°C: 26.2g
• Drying capacity refrigerant R404A: 24°C: 29.8g, 52°C: 28.3g
• Drying capacity refrigerant R507A: 24°C: 30.4g, 52°C: 28.0g
• Drying capacity refrigerant R407C: 24°C: 27.8g, 52°C: 25.7g
• Drying capacity refrigerant R410A: 24°C: 25.3g, 52°C: 23.3g
• Liquid capacity: R134a: 7.68kW, R404A: 5.43kW, R507A: 5.26kW, R407C: 7.85kW; R410A: 8.01kW
