DML053 Filter Drier 023Z5038

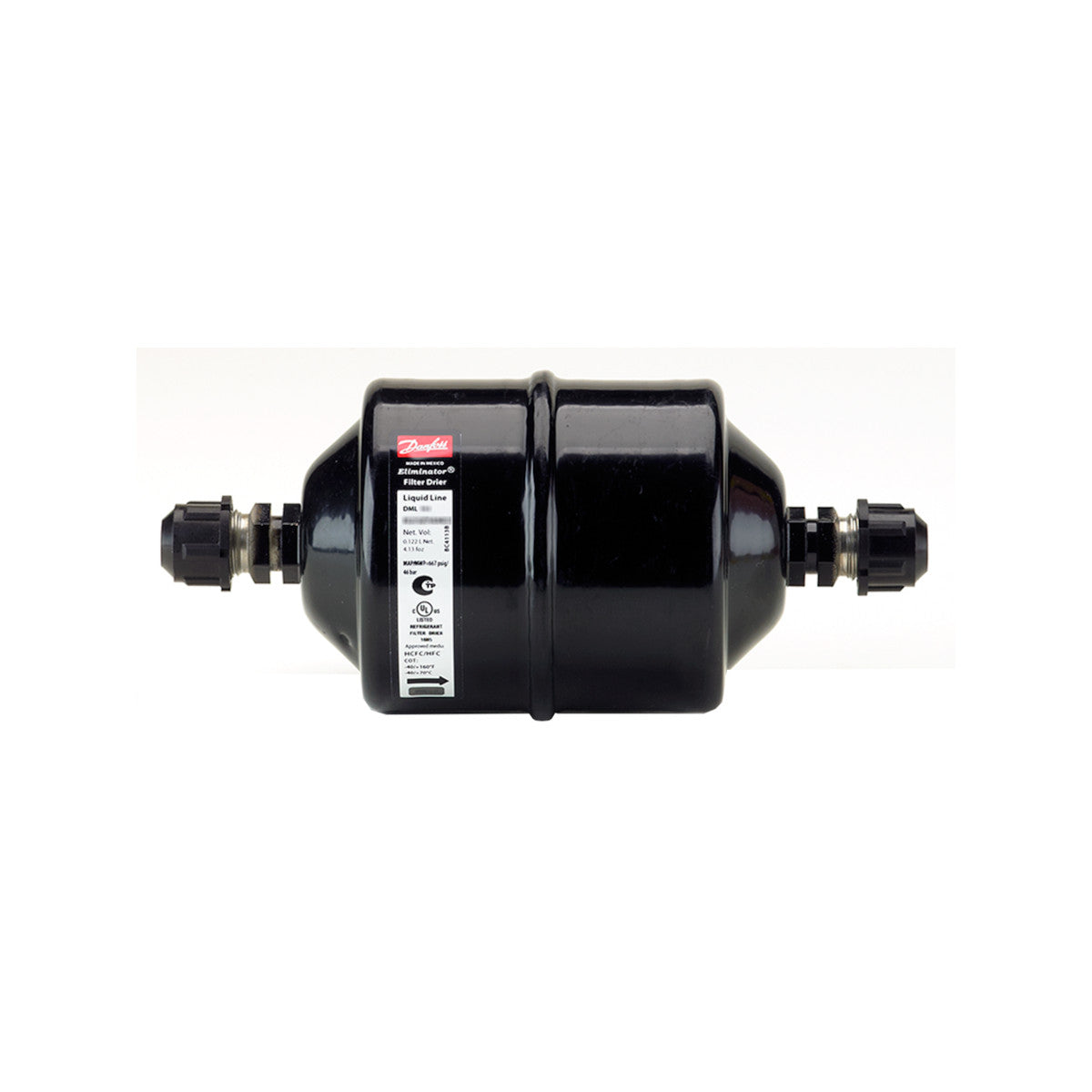

Filter Drier DML 053 / 023Z5038 Danfoss

Filter Drier DML 053 / 023Z5038 Danfoss Flare 10 mm, 3/8" SAE, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyol ester (POE) or polyalkylene glycol (PAG) oils.

Technical data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any mounting position with flow in arrow direction
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 5/8" UNF, 3/8" SAE
• length: 132mm
• solid core surface area: 95cm2
• solid core volume: 67cm3
• drying capacity refrigerant R134a: 24°C: 7.9g, 52°C: 7.5g
• drying capacity refrigerant R404A: 24°C: 8.5g, 52°C: 8.1g
• drying capacity refrigerant R507A: 24°C: 8.6g, 52°C: 8.0g
• drying capacity refrigerant R407C: 24°C: 7.9g, 52°C: 7.3g
• drying capacity refrigerant R410A: 24°C: 7.2g, 52°C: 6.6g
• liquid capacity: R134a: 12.87kW, R404A: 9.81kW, R507A: 9.52kW, R407C: 13.80kW; R410A: 14.58kW
