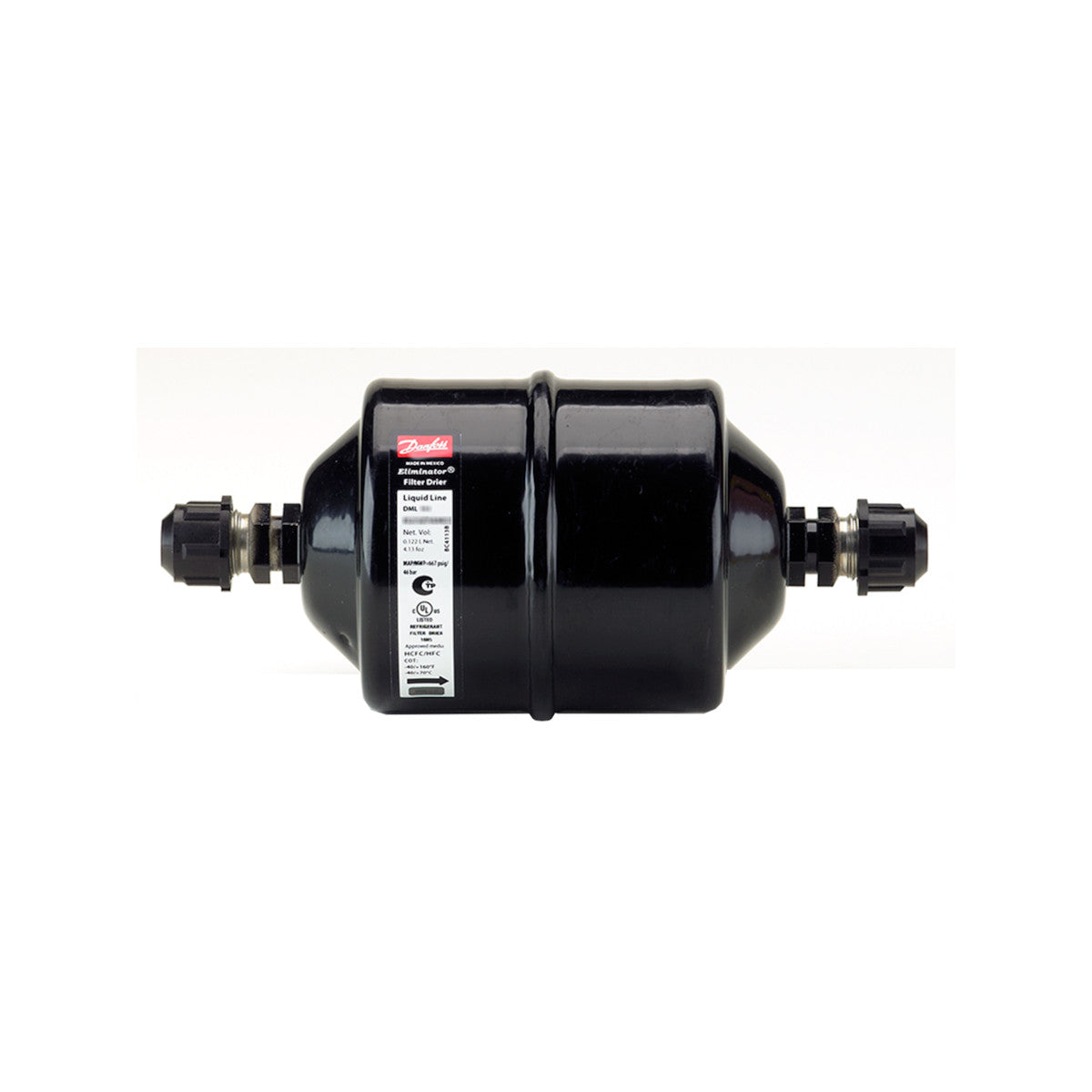

DML052 Filter Drier Danfoss

Filter Drier DML052 6 mm, 1/4" SAE Danfoss 023Z5037

Filter Drier DML 052 Danfoss Flare 6 mm, 1/4" SAE, Eliminator filter drier with 100% 3Å molecular sieve, optimized for HFC refrigerants and polyol ester (POE) or polyalkylene glycol (PAG) oils.

Technical Data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 7/16" UNF, 1/4" SAE
• length: 119mm
• solid core surface: 95cm2
• solid core volume: 67cm3
• drying capacity refrigerant R134a: 24°C: 7.9g, 52°C: 7.5g
• drying capacity refrigerant R404A: 24°C: 8.5g, 52°C: 8.1g
• drying capacity refrigerant R507A: 24°C: 8.6g, 52°C: 8.0g
• drying capacity refrigerant R407C: 24°C: 7.9g, 52°C: 7.3g
• drying capacity refrigerant R410A: 24°C: 7.2g, 52°C: 6.6g
• liquid capacity: R134a: 7.67kW, R404A: 5.62kW, R507A: 5.45kW, R407C: 8.02kW; R410A: 8.32kW
