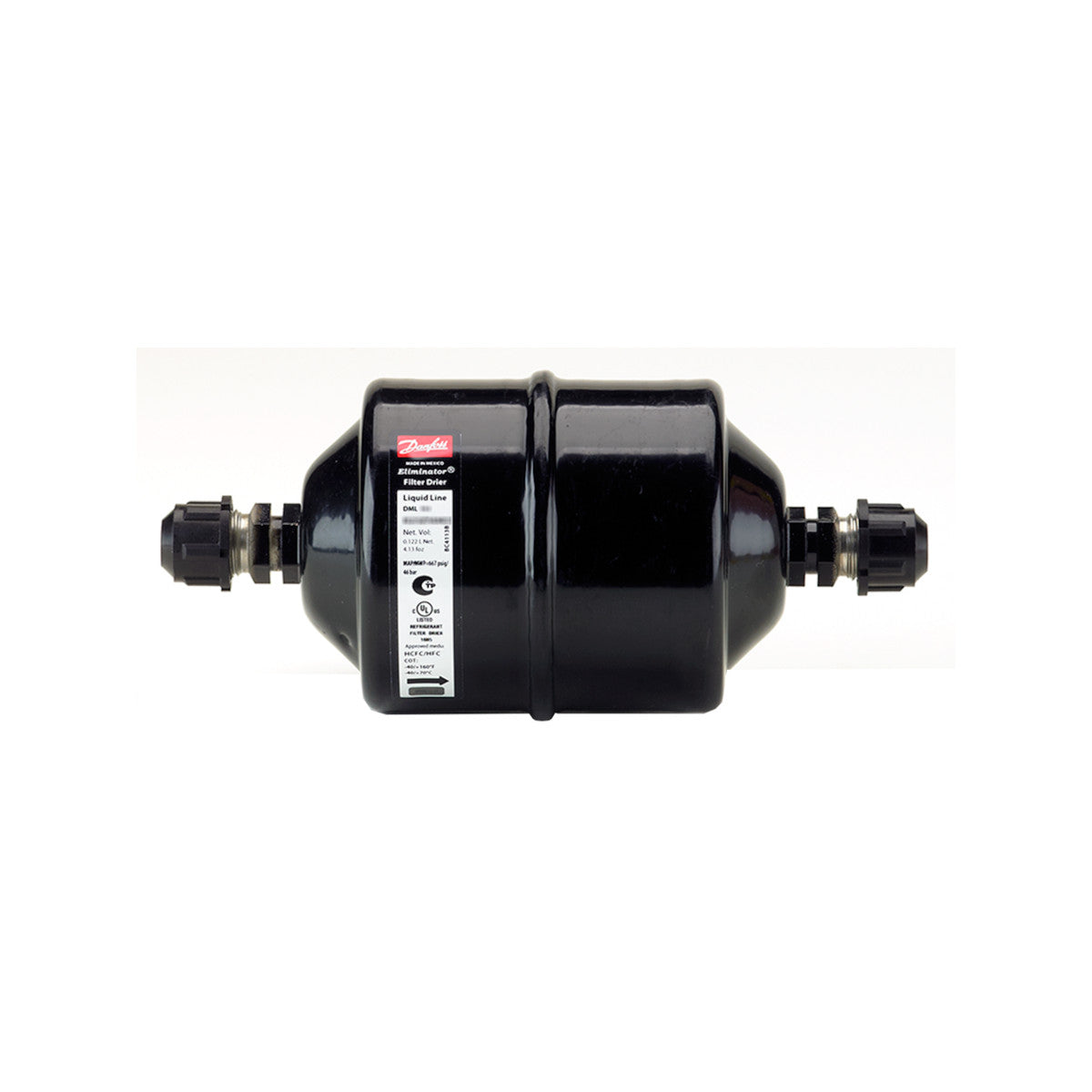

DML033 Filter Drier 023Z5090

Filter drier DML 033 / 023Z5090 Danfoss

Filter drier DML 033 / 023Z5090 Danfoss Flare 10 mm, 3/8" SAE, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyolester (POE) or polyalkylene glycol (PAG) oils.

Technical data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in direction of arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 5/8" UNF, 3/8" SAE
• length: 123
• solid insert surface: 82cm2
• solid insert volume: 41cm3
• drying capacity refrigerant R134a: 24°C: 5.0g, 52°C: 4.7g
• drying capacity refrigerant R404A: 24°C: 5.3g, 52°C: 5.1g
• drying capacity refrigerant R507A: 24°C: 5.4g, 52°C: 5.0g
• drying capacity refrigerant R407C: 24°C: 5.0g, 52°C: 4.6g
• drying capacity refrigerant R410A: 24°C: 4.5g, 52°C: 4.2g
• liquid capacity: R134a: 12.85kW, R404A: 9.86 kW, R507A: 9.57 kW, R407C: 13.84 kW, R410A: 14.67
