DML032S Filter Drier 023Z4551

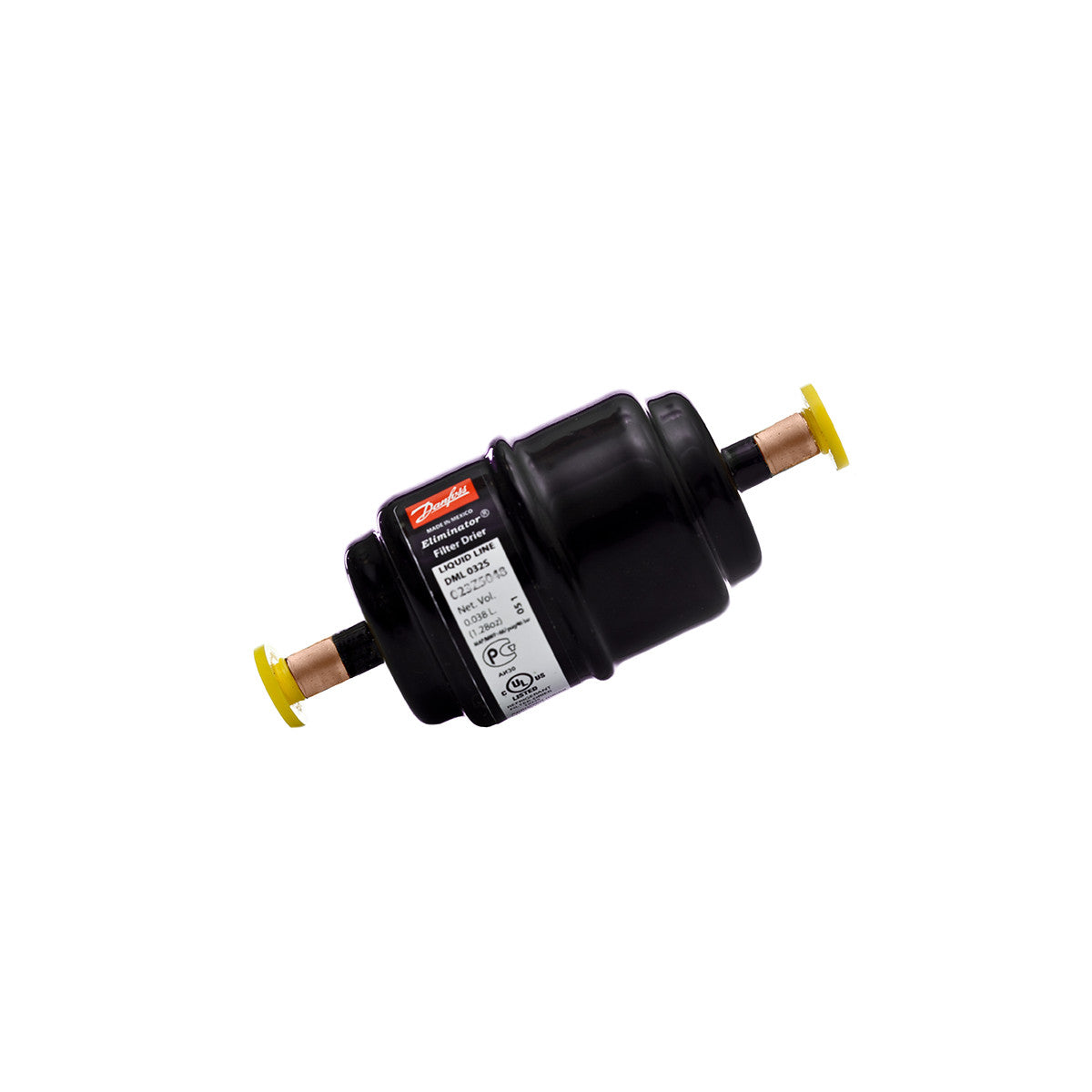

Filter Drier DML 032S / 023Z4551 Danfoss

Filter drier DML 032S / 023Z4551 Danfoss 6 mm solder ODF, Eliminator filter drier with copper-plated steel solder connection, 100% 3A molecular sieve, optimized for HFC refrigerants and POE or PAG oils.

Technical data

• thermally stable up to 120°C
• max. permissible operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 6mm ODF
• length: 98mm
• solid core surface: 82cm2
• solid core volume: 41cm3
• drying capacity refrigerant R134a: 24°C: 5.0g, 52°C: 4.7g
• drying capacity refrigerant R404A: 24°C: 5.3g, 52°C: 5.1g
• drying capacity refrigerant R507A: 24°C: 5.4g, 52°C: 5.0g
• drying capacity refrigerant R407C: 24°C: 5.0g, 52°C: 4.6g
• drying capacity refrigerant R410A: 24°C: 4.5g, 52°C: 4.2g
• liquid capacity: R134a: 6.70kW, R404A: 5.01kW, R507A: 4.86kW, R407C: 7.09kW; R410A: 7.43kW
