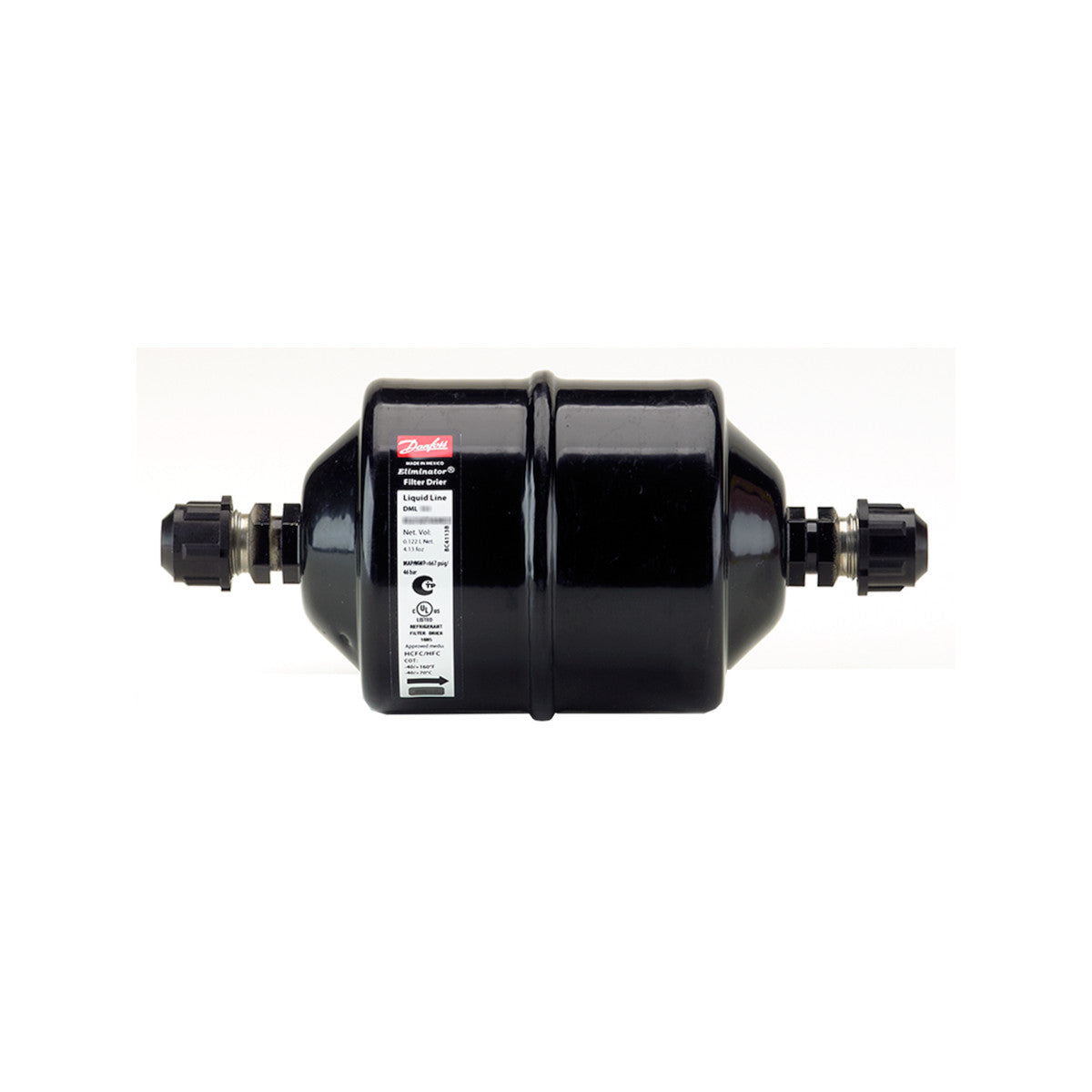

DML032 Filter Drier 023Z5035

Filter Drier DML 032 / 023Z5035 Danfoss

Filter Drier DML 032 / 023Z5035 Danfoss flare 6 mm, 1/4" SAE, Eliminator filter drier with 100% 3A molecular sieve, optimized for HFC refrigerants and polyol ester (POE) or polyalkylene glycol (PAG) oils.

Technical data

• thermally stable up to 120°C
• max. allowable operating pressure: 46 bar
• temperature range: -40 to +70°C
• available with flare or solder connections (copper-plated steel connections)
• any installation position with flow in the direction of the arrow
• suitable for flammable refrigerants (DML 032s to DML 607s)
• connection: 7/16" UNF, 1/4" SAE
• length: 110mm
• solid insert surface: 82cm2
• solid insert volume: 41cm3
• drying capacity refrigerant R134a: 24°C: 5.0g, 52°C: 4.7g
• drying capacity refrigerant R404A: 24°C: 5.3g, 52°C: 5.1g
• drying capacity refrigerant R507A: 24°C: 5.4g, 52°C: 5.0g
• drying capacity refrigerant R407C: 24°C: 5.0g, 52°C: 4.6g
• drying capacity refrigerant R410A: 24°C: 4.5g, 52°C: 4.2g
• liquid capacity: R134a: 6.70kW, R404A: 5.01kW, R507A: 4.86kW, R407C: 7.09kW; R410A: 7.43kW
