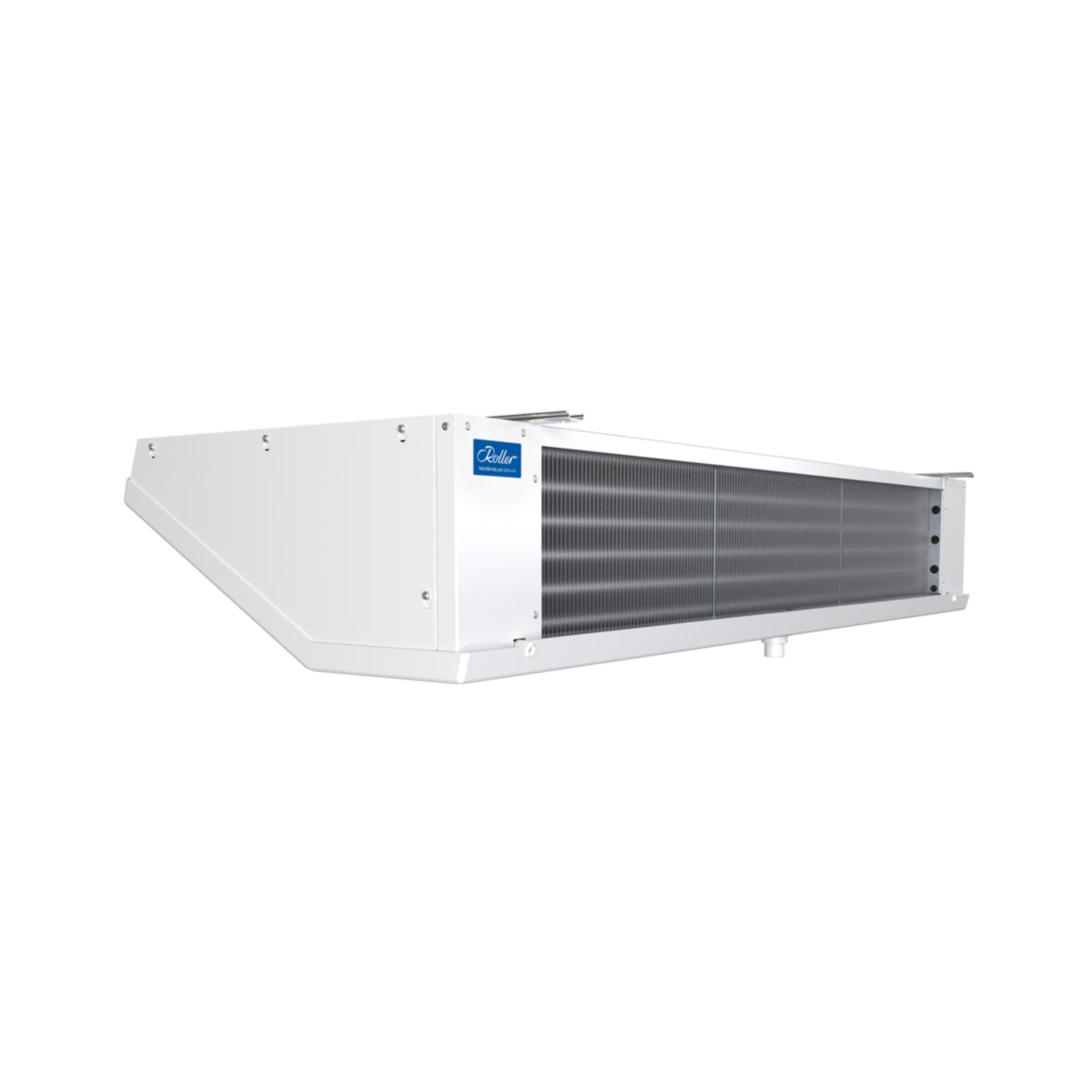

DLKT632EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT632EC | 2.61 kW DLK/T flatline series with defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements, be it frequent access, aggressive particles from various goods, or temporarily differing uses. With uniform air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V11
• Capacity R134a: 2.16 kW at -5°C to 7K, 2.48 kW at -5°C to 8K, 2.83 kW at -5°C to 9K, 3.20 kW at -5°C to 10K
• Capacity R513A: 2.15 kW at -5°C to 7K, 2.47 kW at -5°C to 8K, 2.82 kW at -5°C to 9K, 3.19 kW at -5°C to 10K
• Capacity R449A: 2.26 kW at -5°C to 7K, 2.60 kW at -5°C to 8K, 2.96 kW at -5°C to 9K, 3.35 kW at -5°C to 10K
• Capacity R452A: 2.21 kW at -5°C to 7K, 2.54 kW at -5°C to 8K, 2.90 kW at -5°C to 9K, 3.28 kW at -5°C to 10K
• Capacity R134a: 1.52 kW at -30°C to 7K, 1.68 kW at -30°C to 8K, 1.84 kW at -30°C to 9K
• Capacity R513A: 1.50 kW at -30°C to 7K, 1.65 kW at -30°C to 8K, 1.81 kW at -30°C to 9K
• Capacity R449A: 1.77 kW at -30°C to 7K, 1.95 kW at -30°C to 8K, 2.14 kW at -30°C to 9K
• Capacity R452A: 1.73 kW at -30°C to 7K, 1.91 kW at -30°C to 8K, 2.09 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 10.8 m²
• Airflow: 1820 m³/h
• Throw distance: 8m
• Connections Inlet/Outlet: 12 mm / 22 mm
• Number x Diameter of Fans: 2 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Airflow: 0.24 A
• Tube volume: 2.9 dm³
• Dimensions (H x L x D): 246 x 1462 x 497 mm
• Sound pressure level: 49 db(A)
• Sound power level: 70 db(A)
