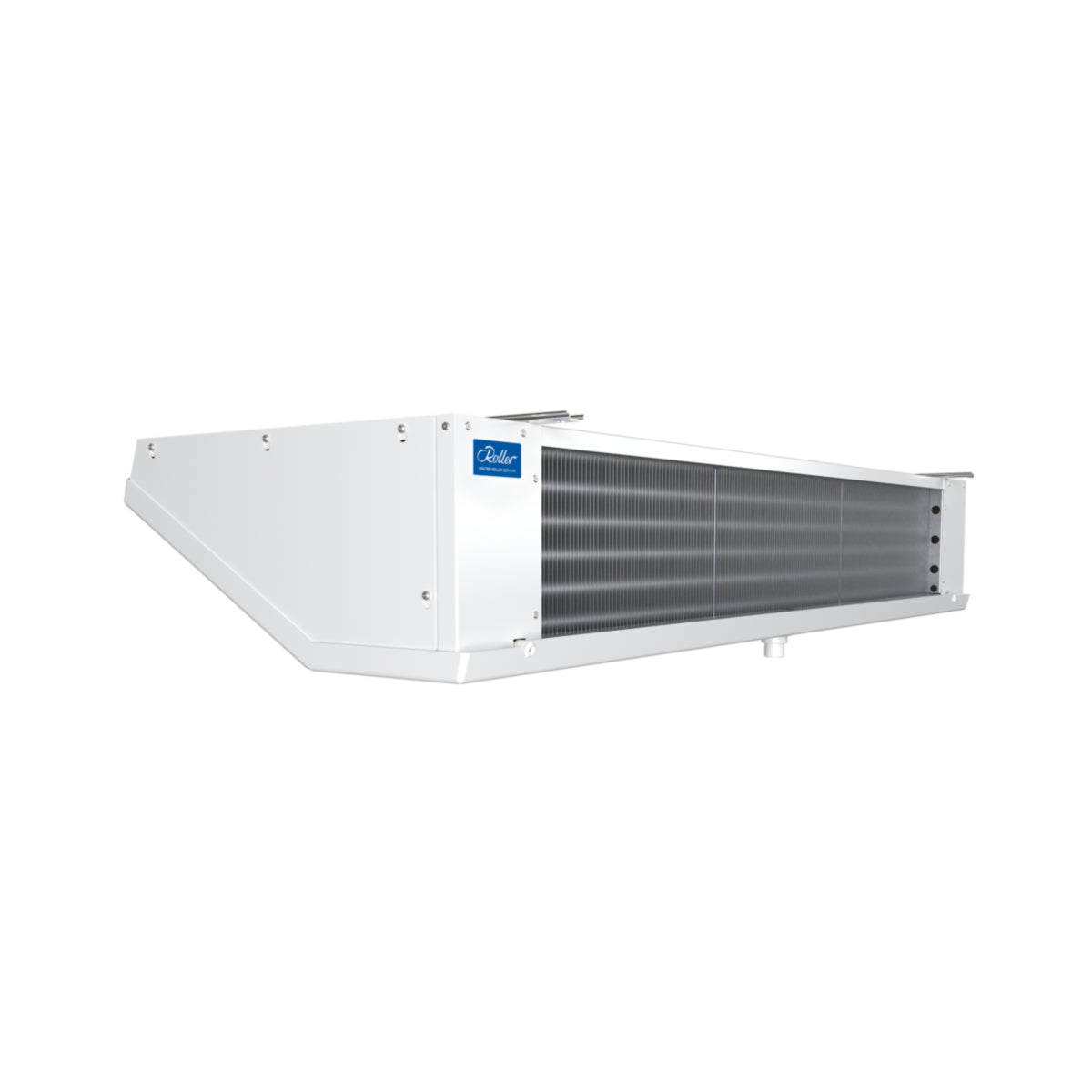

DLKT432EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT432EC | 230V 50/60Hz DLK/T flatline series with defrost heater

With its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to various goods, or temporarily different applications. With uniform air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V14
• Capacity R134a: 2.56 kW at -5°C to 7K, 2.96 kW at -5°C to 8K, 3.39 kW at -5°C to 9K, 3.84 kW at -5°C to 10K
• Capacity R513A: 2.54 kW at -5°C to 7K, 2.94 kW at -5°C to 8K, 3.37 kW at -5°C to 9K, 3.82 kW at -5°C to 10K
• Capacity R449A: 2.68 kW at -5°C to 7K, 3.09 kW at -5°C to 8K, 3.55 kW at -5°C to 9K, 4.01 kW at -5°C to 10K
• Capacity R452A: 2.62 kW at -5°C to 7K, 3.03 kW at -5°C to 8K, 3.47 kW at -5°C to 9K, 3.93 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 15.7 m²
• Air flow: 1700 m³/h
• Throw distance: 8m
• Connections Inlet/Outlet: 12 mm / 22 mm
• Number x Diameter Fans: 2 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Air flow: 0.24 A
• Tube volume: 2.9 dm³
• Dimensions (H x L x D): 246 x 1462 x 497 mm
• Sound pressure level: 49 db(A)
• Sound power level: 70 db(A)
