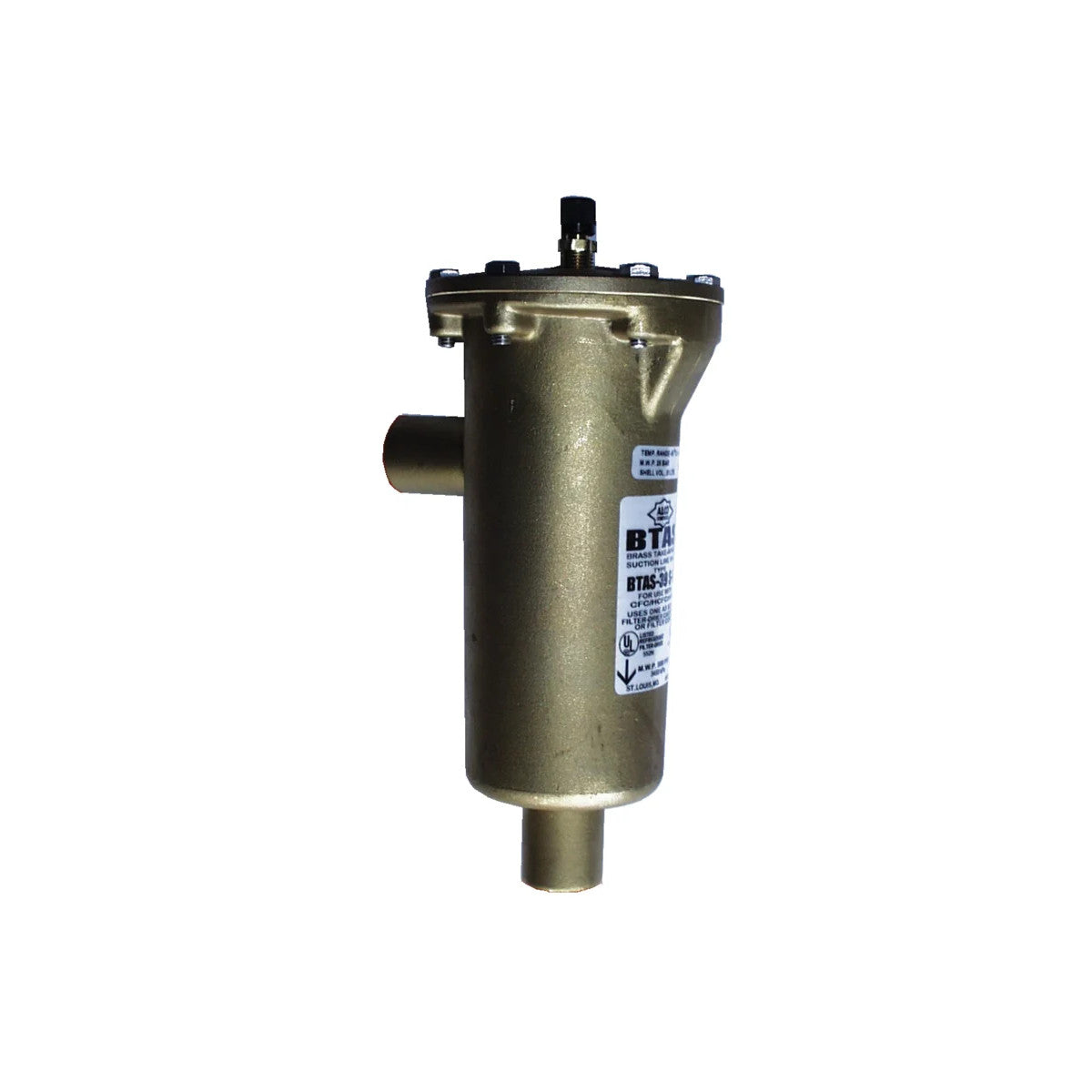

BTAS-27 015354 Suction Line Dryer Alco

Suction Line Filter | Dryer Housing BTAS-27 Alco 015354 for Filter Insert Type A2F

Technical Data

• Temperature range TS: -45 to +50°C
• max. operating pressure PS: 24 bar
• Connection: 22mm ODF, 7/8"
• Length: 249mm
• Drying capacity with filter dryer insert R134a: 24°C: 2.8g, 52°C: 2.3g
• Drying capacity with filter dryer insert R404A/R507A: 24°C: 2.9g, 52°C: 2.3g
• Drying capacity with filter dryer insert R407C: 24°C: 4.8g, 52°C: 5.0g
• Nominal capacity filter dryer insert: R134a: 19.1kW, R404A: 20.6kW, R407C: 23.4kW
• Nominal capacity suction filter insert: R134a: 22.3kW, R404A: 24.3kW, R407C: 27.5kW
• Insert type: A2F(-D)
• Acid absorption capacity: 3.7
