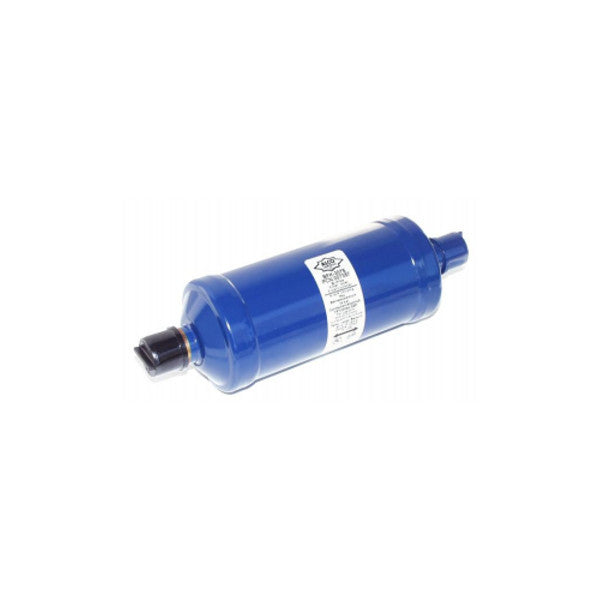

BFK307S Bi-Flow Filter Drier Alco

Bi-flow Filter Drier BFK 307S solder 22 mm, 7/8" ODF Alco 007357

Filter drier with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated aluminum oxide.

Technical details of the filter drier:

• Connections: 7/8" ODF / solder 22 mm
• Temperature range: -45°C - +65°C
• max. operating pressure: 45 bar
• high water absorption capacity
• high acid absorption capacity
• fine filtration down to 20 micron
• closed design
• CE marking according to PED 97/23 EC not required
• HP marking according to the Pressure Equipment Directive

English description: Filter dryer BFK307S / 007357 Alco, solder 22 mm, 7/8" ODF, filter dryer with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated aluminium oxide.

• volume: 250 cm³
• connections:7/8" ODF / solder 22 mm
• temperature range: -45°C - +65°C
• max. working pressure: 45 bar
• high water capacity
• high acid capacity
• finest filtration up to 20 micron
• closed Version
• CE-marking in accordance with PED 97/23 EC not necessary
• HP-marking in accordance with the pressure equipment directive
