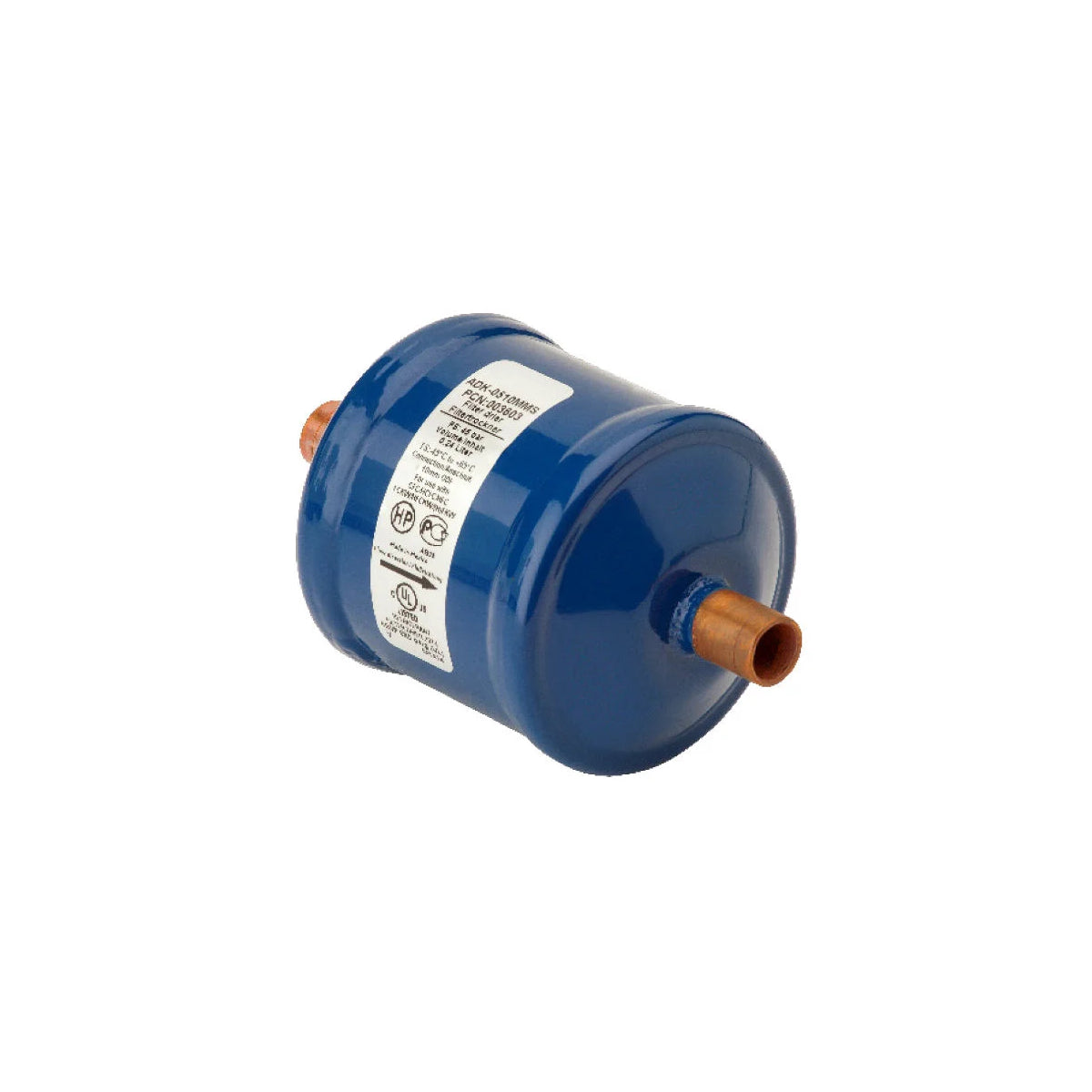

ADK305S Filter Drier 003627 Alco

Filter Dryer ADK 305S solder 16mm, 5/8" ODF Alco 003627

Filter dryer with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated alumina.

Technical Data

• Connections: 5/8" ODF
• Length: 194 mm
• Outer diameter: 76 mm
• Drying capacity R134a: 24°C: 51.8 g, 52°C: 47.4 g
• Drying capacity R407C: 24°C: 36.9 g, 52°C: 31.8 g
• Liquid capacity: R134a: 48.4 kW, R454C: 39.0 kW, R407C: 50.4 kW, R455A: 41.4 kW, R1234yf: 34.8 kW, R744: 6.8 kW
• Temperature range: -40°C - +65°C
• Max. operating pressure: 45 bar
• High water absorption capacity
• High acid absorption capacity
• Fine filtration down to 20 micron
• Closed design
• CE marking according to PED 97/23 EC not required
• HP marking according to Pressure Equipment Directive
