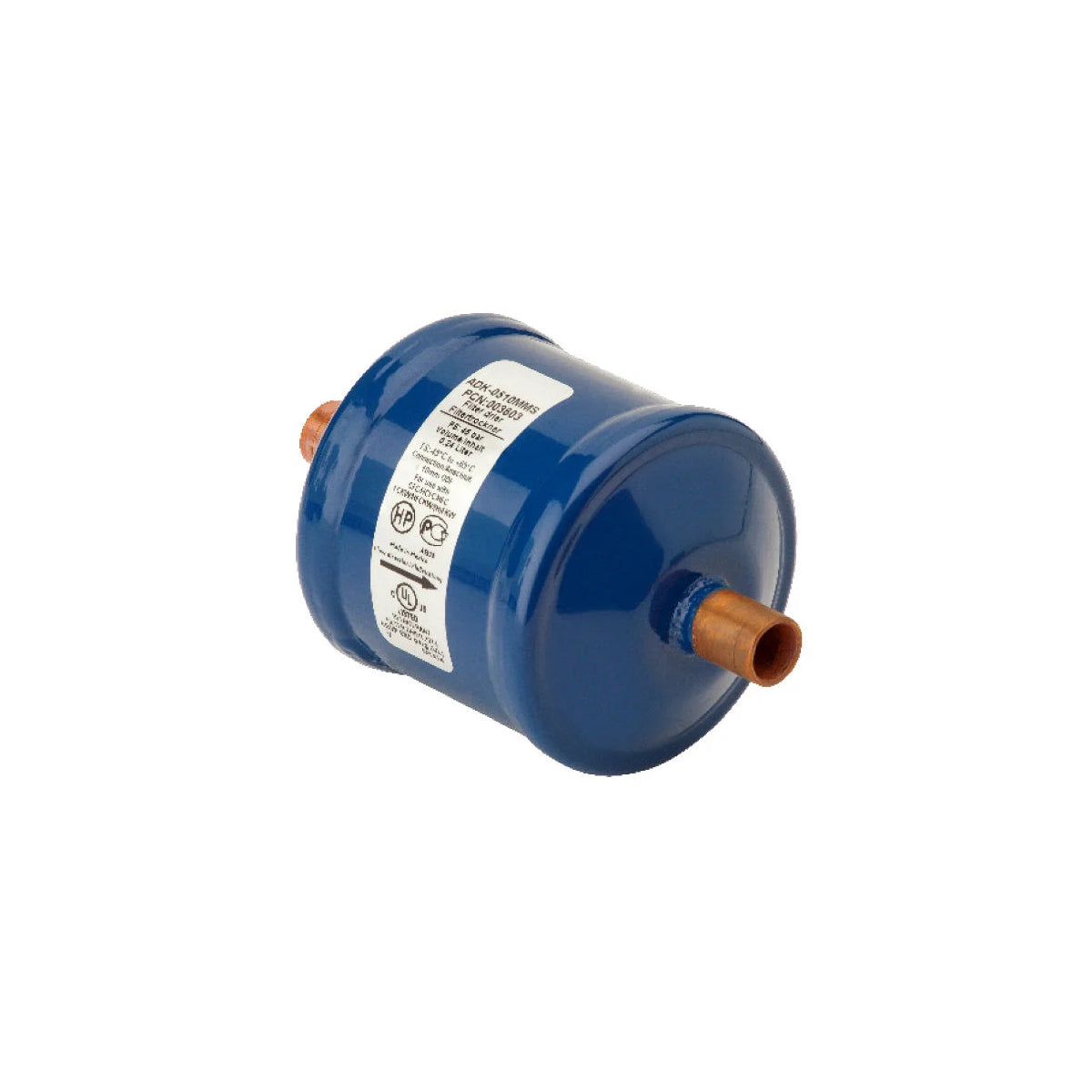

ADK305 Filter Drier 003626 Alco

Filter Drier ADK 305 flare 16 mm, 5/8" SAE Alco 003626

Filter drier with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated alumina.

Technical data

• Connections: 7/8" UNF, 5/8" SAE
• Length: 259 mm
• Outer diameter: 76 mm
• Drying capacity R134a: 24°C: 51.8 g, 52°C: 47.4 g
• Drying capacity R407C: 24°C: 36.9 g, 52°C: 31.8 g
• Liquid capacity: R134a: 48.2 kW, R454C: 38.9 kW, R407C: 50.2 kW, R455A: 41.2 kW, R1234yf: 34.7 kW, R744: 76.6 kW
• Temperature range: -40°C - +65°C
• Max. operating pressure: 45 bar
• High water absorption capacity
• High acid absorption capacity
• Fine filtration down to 20 micron
• Sealed design
• CE marking according to PED 97/23 EC not required
• HP marking according to Pressure Equipment Directive
