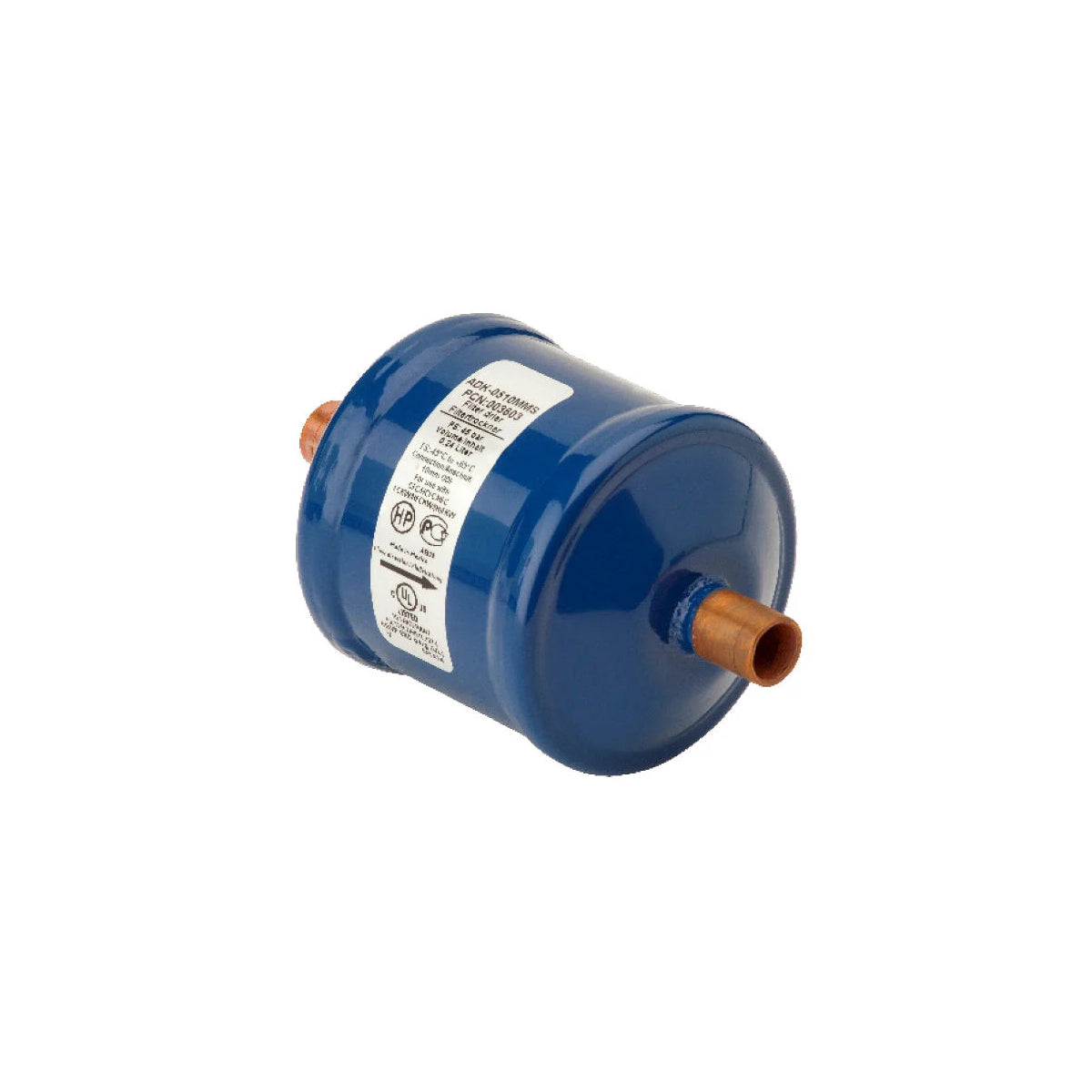

ADK164 Filter Drier 003617 Alco

Name: ADK164 Filter Drier 003617 Alco
Brand: Alco
SKU: 1009209
Price: 35.60 EUR
Availability: InStock

Filter dryer ADK 164 crimped 12 mm, 1/2" SAE Alco 003617

excl. VAT incl. VAT

35,60 € 42,36 € incl. VAT

35,60 € excl. VAT 42,36 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 1009209 Manufacturer Alco

Filter Drier ADK 164 flare 12 mm, 1/2" SAE Alco 003617

Filter drier with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated aluminum oxide.

Connections: 3/4" UNF, 1/2“ SAE
Length: 181 mm
Outer diameter: 64 mm
Drying capacity R134a: 24°C: 23 g, 52°C: 20.8 g
Drying capacity R407C: 24°C: 16 g, 52°C: 13.8 g
Liquid capacity: R134a: 28.7 kW, R454C: 23.2 kW, R407C: 29.9 kW, R455A: 24.5 kW, R1234yf: 20.6 kW, R744: 45.5 KW
Temperature range: -40°C - +65°C
Max. operating pressure: 45 bar
High water absorption capacity
High acid absorption capacity
Fine filtration down to 20 micron
Closed design
CE marking according to PED 97/23 EC not required
HP marking according to Pressure Equipment Directive
