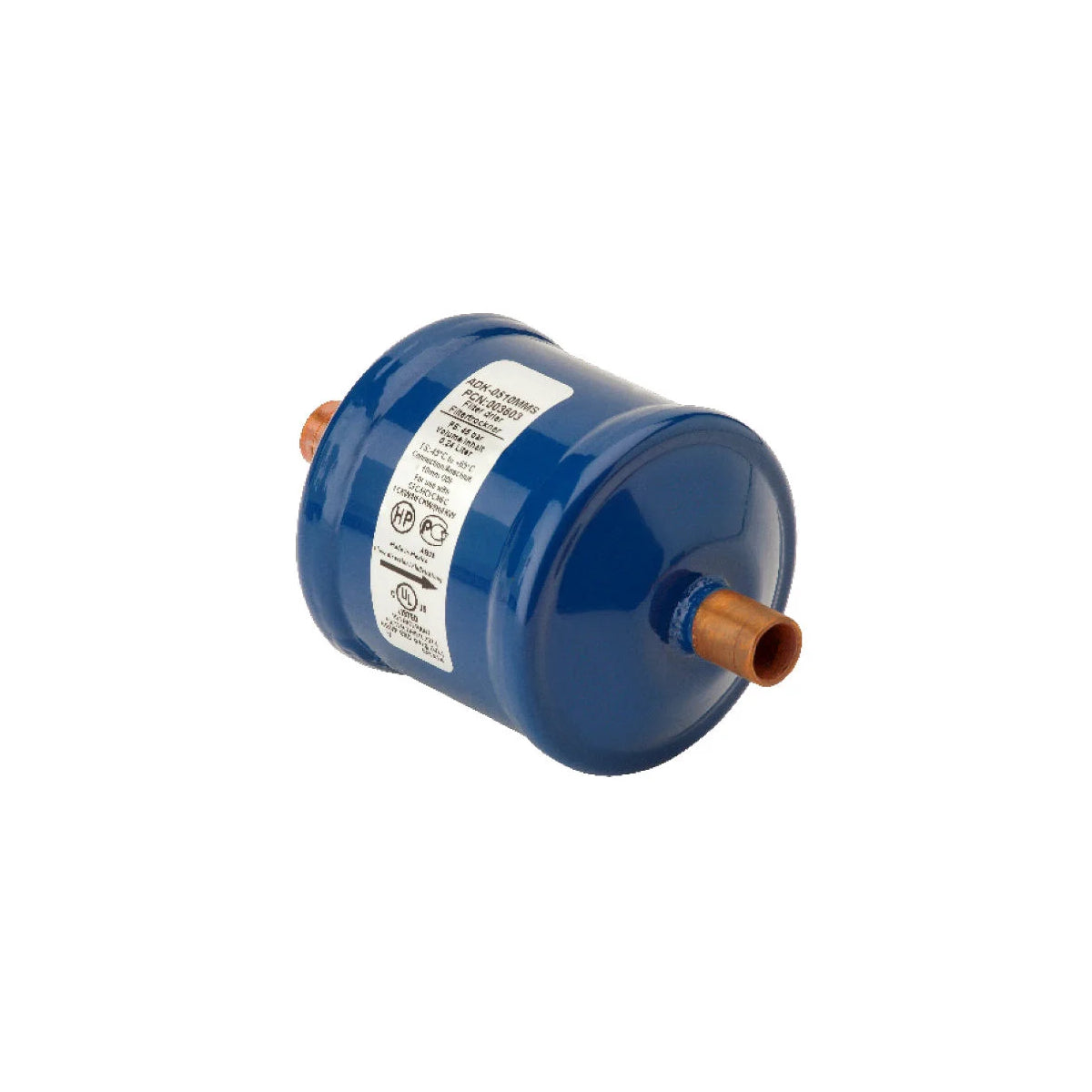

ADK162 Filter Drier Alco 003613

Filter Drier ADK 162 6mm flared, 1/4" SAE Alco 003613

Filter drier with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated aluminum oxide.

Technical Data

• Connections: 7/16" UNF, 1/4" SAE
• Outer diameter: 64 mm
• Length: 167 mm
• Drying capacity R134a: 24°C: 23 g, 52°C: 20.8 g
• Drying capacity R407C: 24°C: 16 g, 52°C: 13.8 g
• Liquid capacity: R134a: 7.3 kW, R454C: 5.9 kW, R407C: 7.6 KW, R455A: 6.2 kW, R1234yf: 5.2 kW, R744: 11.6 KW
• Temperature range: -40°C - +65°C
• Max. operating pressure: 45 bar
• High water absorption capacity
• High acid absorption capacity
• Fine filtration down to 20 micron
• Closed design
• CE marking according to PED 97/23 EC not required
• HP marking according to Pressure Equipment Directive
