Compressor ZR28K3E-PFJ-522 Copeland

Fully hermetic scroll compressor ZR28K3E-PFJ-522 from Copeland for medium and high pressure applications. Alternative model designation: ZR28K3E-PFJ-930

most efficient compressors on the market

wide range of applications

suitable for various refrigerants

excl. VAT incl. VAT

880,00 € 1.047,20 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 880,00 € excl. VAT 1.047,20 € incl. VAT

Sale Sold out

Available immediately

4 working days

zzgl. Versandkosten

ArtNr 9301108 Hersteller Copeland Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

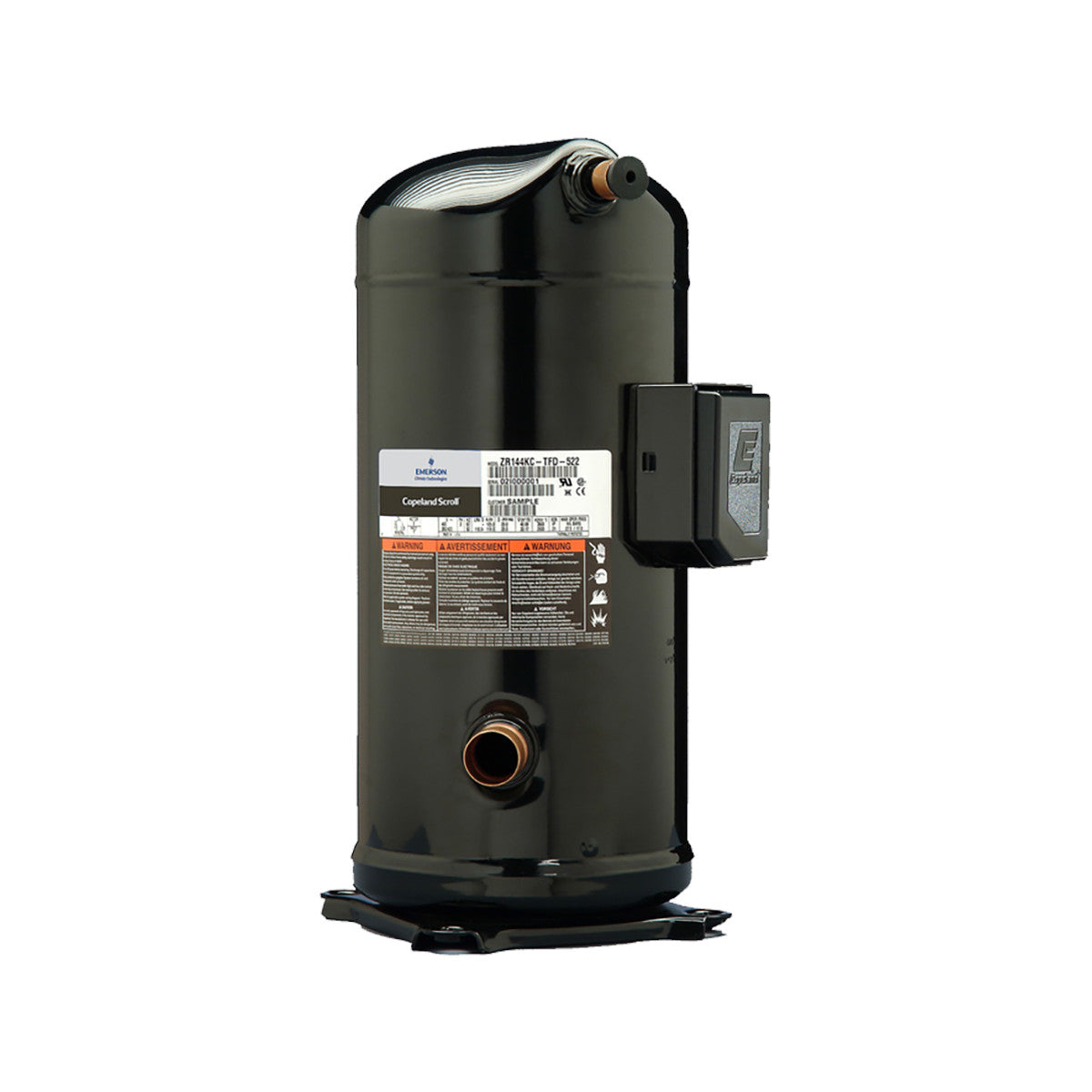

Compressor ZR28K3E-PFJ-522 by Copeland

Hermetic scroll compressor ZR28K3E-PFJ-522 for medium and high pressure applications by Copeland. The compressor is also frequently listed under the alternative model designation ZR28K3E-PFJ-930.

The exact performance data can be found in the technical data sheet.

General features:

Motor type: PFJ
Refrigerant: R134a, R407C
Mains voltage: 220-240V/1/50Hz
Displacement: 6.83 cm³
Oil charge: POE RL32-3MAF, 1.12l
Max. operating current: 14.8 A
Suction connection: 3/4"
Discharge connection: 1/2"
Dimensions (LxWxH): 246 x 246 x 77 mm
Sound level: 54 dBA
Recommended crankcase heater: 70 W

most efficient compressors on the market
wide range of applications
suitable for various refrigerants

General characteristics

Versandklasse: Freight forwarder
Marke: Copeland
Gewicht: 30.0 kg

Download

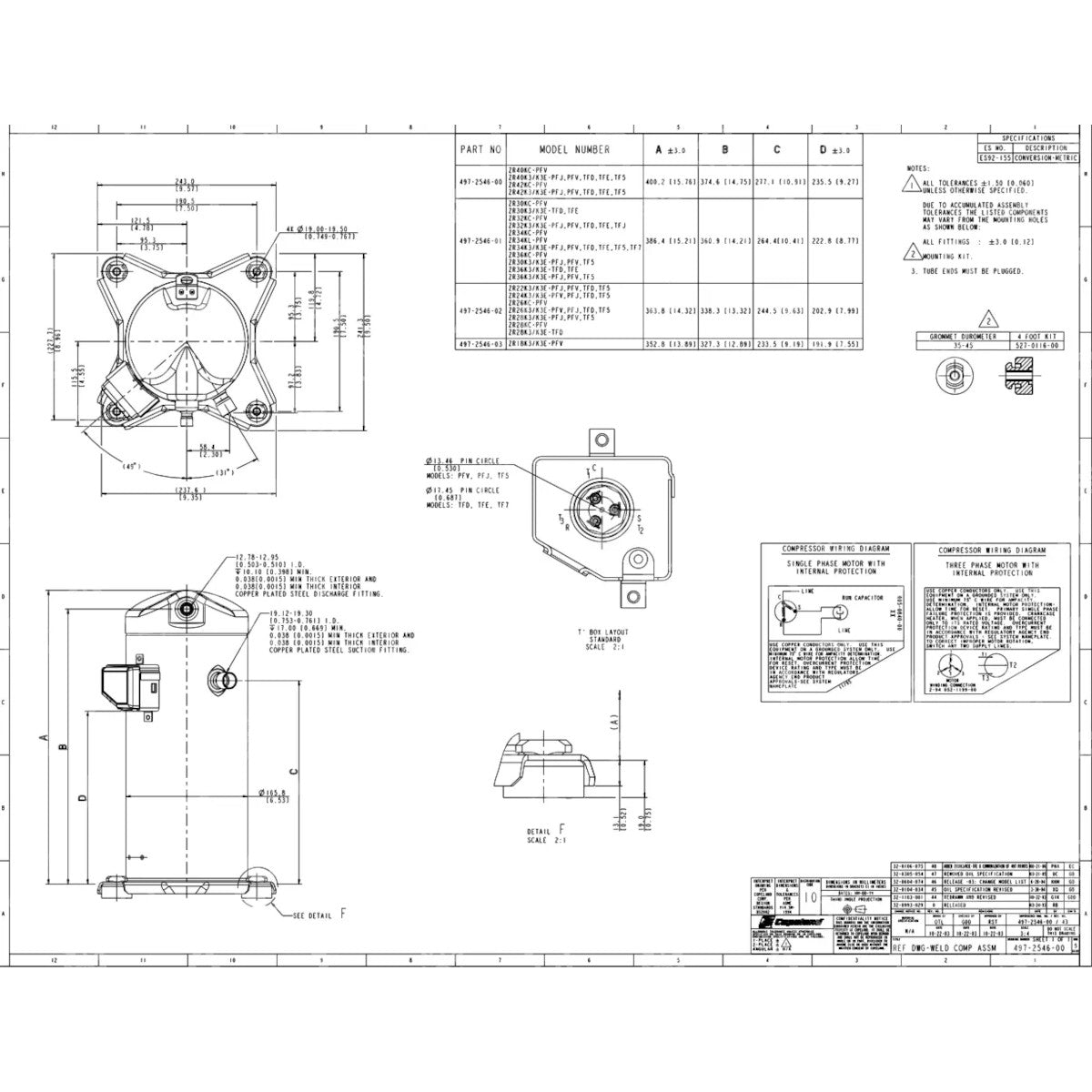

9301108 Datenblatt Kompressor ZR28K3E PFJ

Frequently Asked Questions

Ist der Kompressor mit Kältemittel vorgefüllt?

Nein, der Kompressor wird nicht mit Kältemittel vorgefüllt geliefert. Die Befüllung sollte vom Kältetechniker im Rahmen der Inbetriebnahme der Anlage erfolgen.
