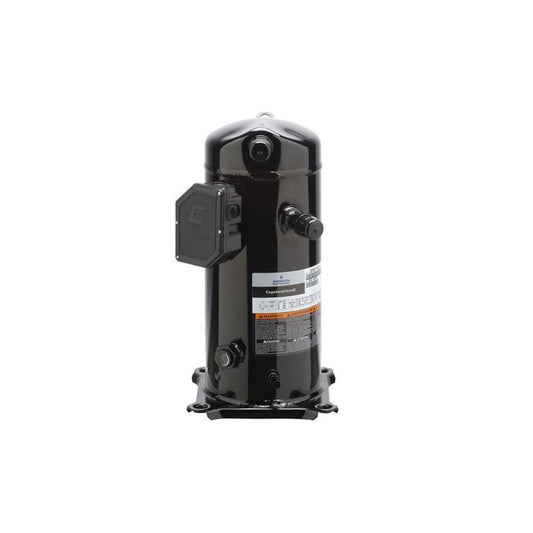

Compressor ZR12M3E-TWD 551 Copeland

Fully hermetic scroll compressor ZR12M3E-TWD 551 from Copeland for medium and high pressure applications.

most efficient compressors on the market

wide range of applications

suitable for various refrigerants

excl. VAT incl. VAT

4.980,45 € 5.926,74 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 4.980,45 € excl. VAT 5.926,74 € incl. VAT

Sale Sold out

Not available

Successor item available

zzgl. Versandkosten

View successor

ArtNr 9301027 Hersteller Copeland

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Compressor ZR12M3E-TWD 551 by Copeland

Hermetic scroll compressor ZR12M3E-TWD 551 for medium and high pressure applications by Copeland.

For precise performance data, please refer to the technical data sheet.

General features:

Motor type: TWD
Refrigerant: R134a, R407C
Mains voltage: 380-420V/3/50Hz
Displacement: 28.8 cm³
Oil charge: POE RL32-3MAF, 4.1l
Max. operating current: 22 A
Suction connection: Rotalock: 1 3/4"; Solder: 1 3/8"
Discharge connection: Rotalock: 1 1/4"; Solder: 7/8"
Dimensions (LxWxH): 319 x 357 x 525 mm
Noise level: 67 dBA
Recommended crankcase heater: 49 W

Note: In case of supply shortages, the ZR12M3E-TWD 961 can be supplied as a replacement. If the ZR12M3E-TWD 551 is currently unavailable, a Copeland ZR12-M3E-TWD-961 scroll compressor 380-420V 50/60Hz with Rotalock threaded connectors and Rotalock to solder adapter set (suction and discharge side) will be supplied.
