XR70CX-5N0C0 Dixell

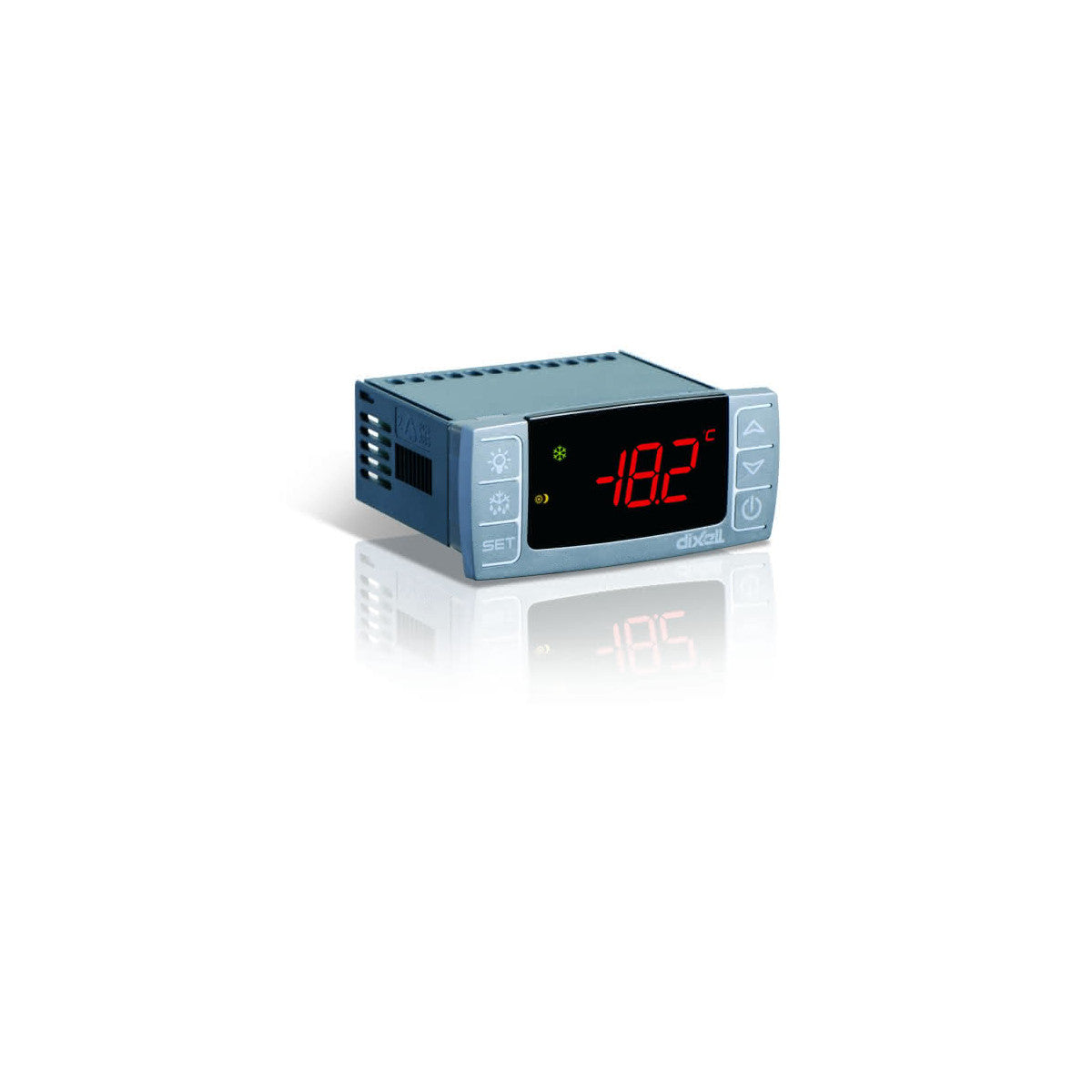

Cold room controller Dixell XR70CX-5N0C0 with 3 relays, 230V version

Cold room controller XR70CX-5N0C0 230V version with 2x PTC/NTC input and 3x relays (16A+8A+5A) Dixell Copeland

Technical data

• Type XR70CX-5N0C3, panel mount device 29mm x 71mm, 230V
• 2x PTC/NTC input (-55...+150°C)
• 1x compressor relay 16A
• 1x defrost 8A
• 1x fan 5A
• 1x configurable digital input
• 1x HOT-KEY connection
• 2x PTC/NTC input (cold room)
• Version: without X-REP output, without buzzer, without RTC
• Electrical connection: screw terminals for max. conductor diameter 2.5mm²
• Protection class: IP 20, front: IP 65
• Power consumption: 3 W
• Dimensions (W x H x D): 78 x 37 x 60 mm
• Temperature measuring range NTC: - 40°C to + 110°C
• Ambient temperature: 0 to 60°C

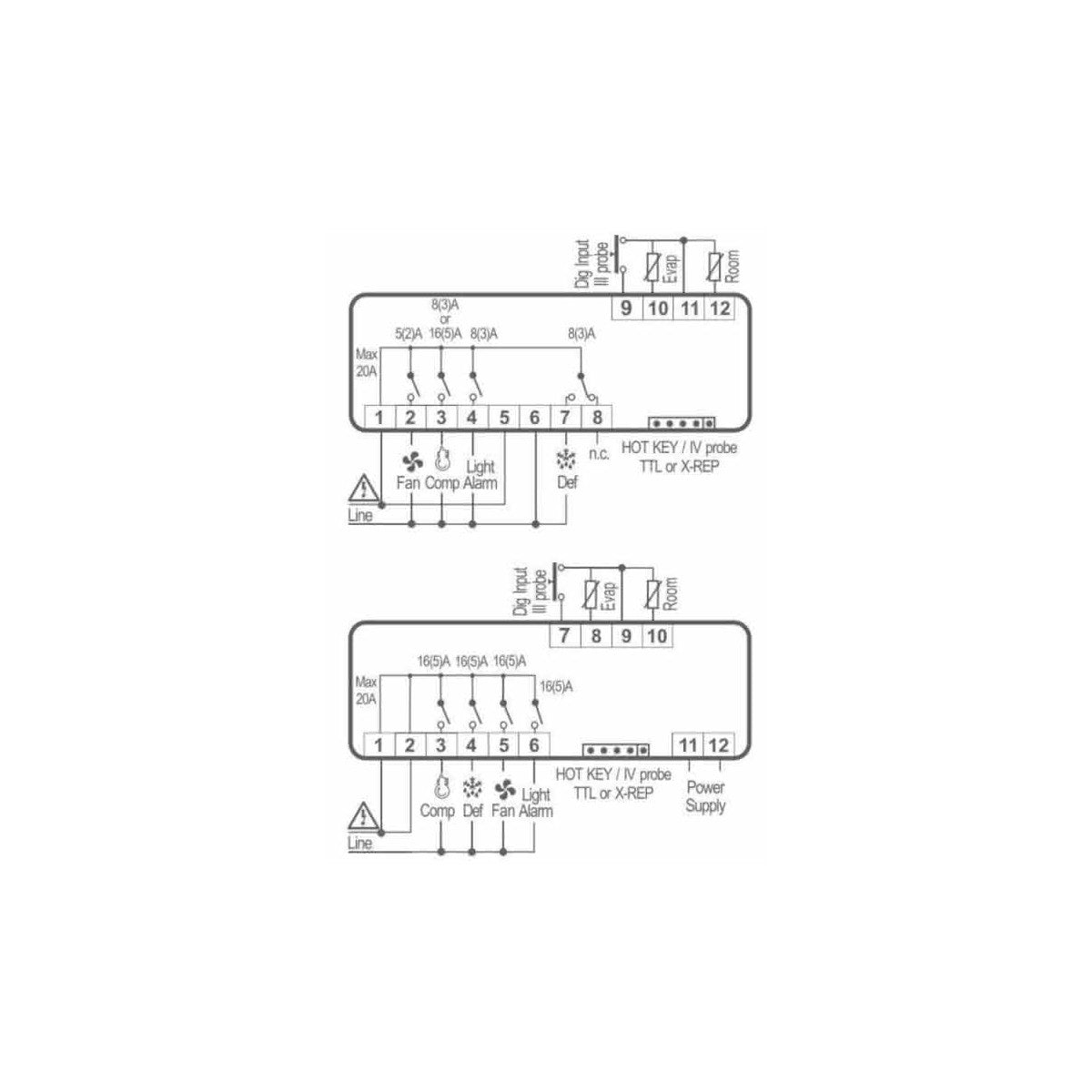

The XR70CX panel-mount device, with a front dimension of 74x32mm, is a microprocessor-controlled cold room controller for normal and low temperatures. It features three relay outputs for controlling the compressor, defrosting (which can be electric or hot gas), and the evaporator fan. There is also a 4th configurable relay (e.g., for switching light on or off via a front button). Depending on the version, up to three NTC or PTC probes can be connected simultaneously. Depending on the configuration, these can be used for room temperature, defrosting, fan control, etc. For the third probe, the digital input is reconfigured (depending on the version), and the 4th probe (depending on the version) is wired via the HOT-KEY connection. This is used for condenser temperature alarm. The device can be programmed via HOT-KEY, or a parameter set can be saved to HOT-KEY. Depending on the model, an external X-REP display can alternatively be connected to the HOT-KEY connection.
