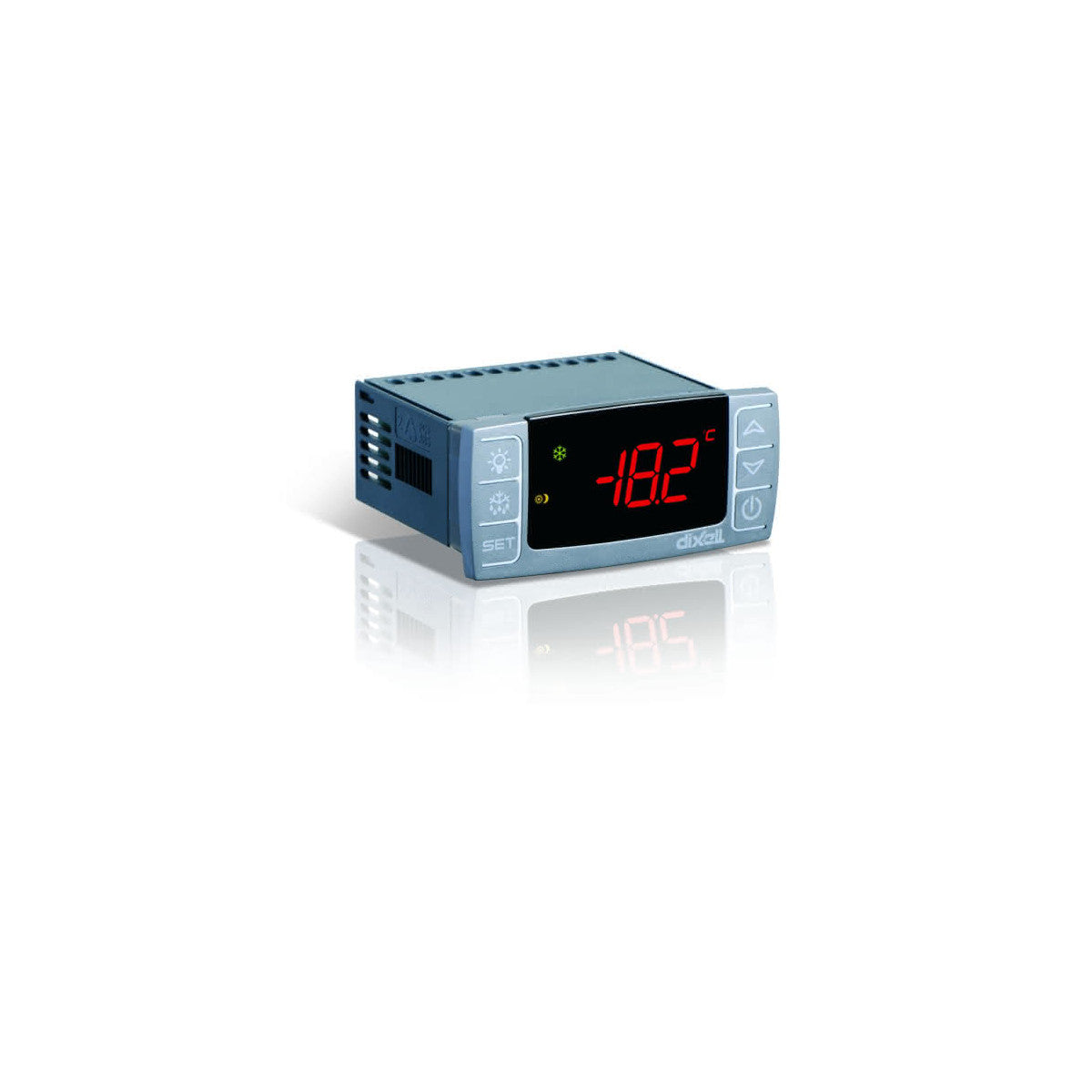

XR40CX-5N0C1 Dixell

Cold Room Controller Defrost Controller XR40CX-5N0C1 230 Vac Dixell

Technical Data

• Type XR40CX-5N0C1, panel mount device 71 x 29 mm, front panel dimensions 74 x 32 mm
• PTC/NTC 2-inputs (PTC -55...+150°C, NTC -40 ...+110 °C)
• ON/OFF button
• Version: without X-REP output, without buzzer, without RTC
• Electrical connection: screw terminals for max. conductor diameter 2.5mm²
• Voltage: 230 V
• 1x compressor relay 20(8)A, 250Vac
• 1x defrost relay 8 (3)A, 250Vac
• 1x configurable digital input
• 1x HOT-KEY connection
• Protection class: IP 20, Front: IP 65
• Dimensions (W x H x D): 78 x 37 x 60 mm
• Temperature measuring range NTC: - 40°C to + 110°C
• Ambient temperature: 0 to 60°C
• Cyclic defrosts via compressor stop possible
