XR20CX-5N0C1 Dixell

Dixell XR20CX-5N0C1 Cold Room Controller 230 V AC/DC Thermostat with 1x PTC/NTC input and 1x relay (20A), cyclic defrosts via compressor stop possible.

easy setup

attractive design

durable and robust

excl. VAT incl. VAT

46,90 € 55,81 € incl. VAT

~~52,91 € excl. VAT~~ ~~62,96 € incl. VAT~~ 46,90 € 52,91 € excl. VAT 55,81 € 62,96 € incl. VAT 52,91 € 62,96 €

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 1202020 Manufacturer Copeland Dixell Datasheet

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

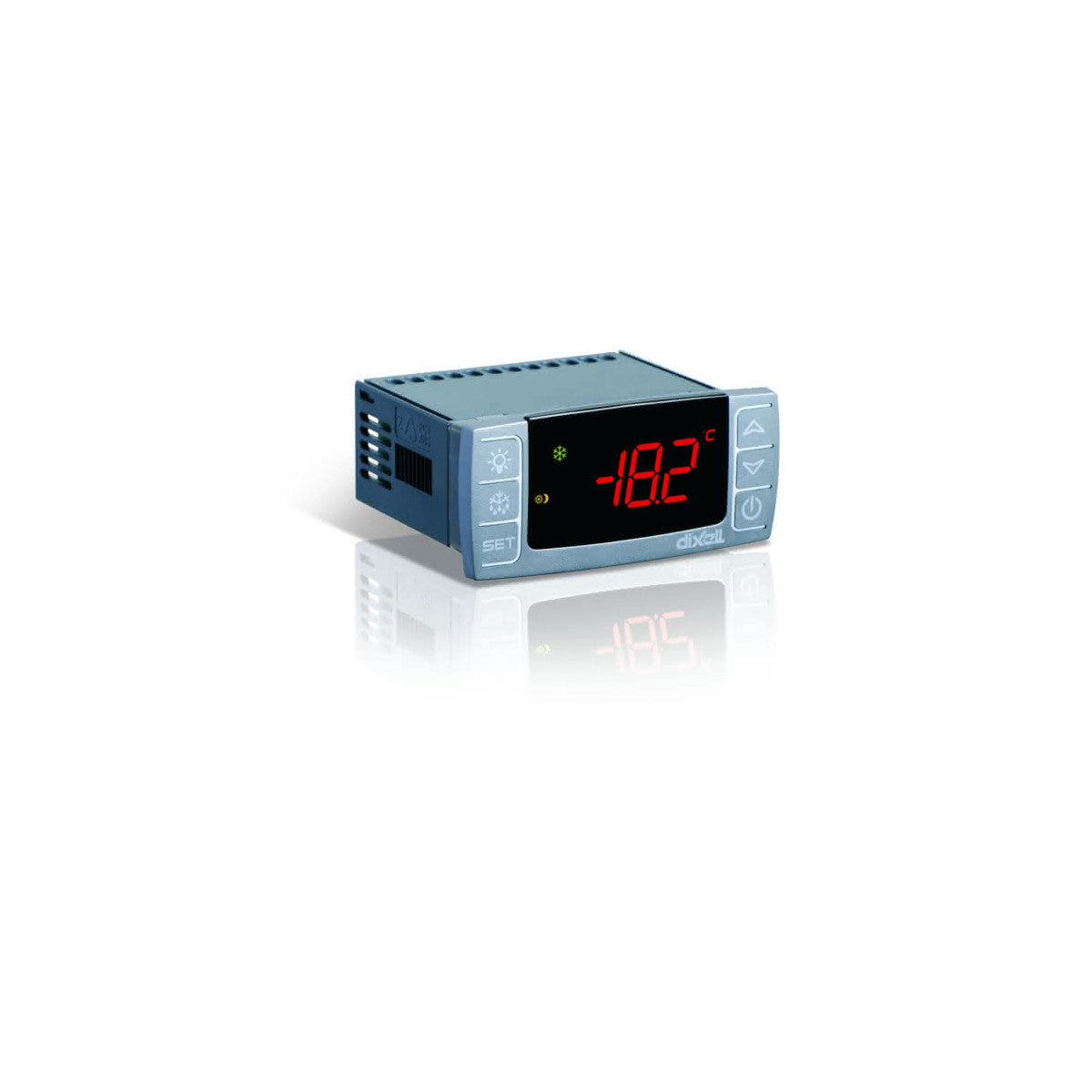

Cold Room Controller Dixell XR20CX-5N0C1

Cold room controller Dixell XR20CX-5N0C1 with 1 relay 20A, 230V.

Technical Data

Type XR20CX-5N0C1, panel mount device 29mm x 71mm, 230V
1x PTC/NTC input (-55...+150°C)
1x Compressor relay 20A
1x configurable digital input
1x HOT-KEY connection
1x PTC/NTC input (cold room)
Cyclic defrosting possible via compressor stop
Protection class: IP 20, Front: IP 65
Power consumption: 3 W
Ambient temperature: 0 to 60°C
Temperature measurement range NTC: -40 to 110°C
Dimensions (W x H x D): 78 x 37 x 60 mm
Electrical connection: Screw terminals for max. conductor diameter 2.5mm²

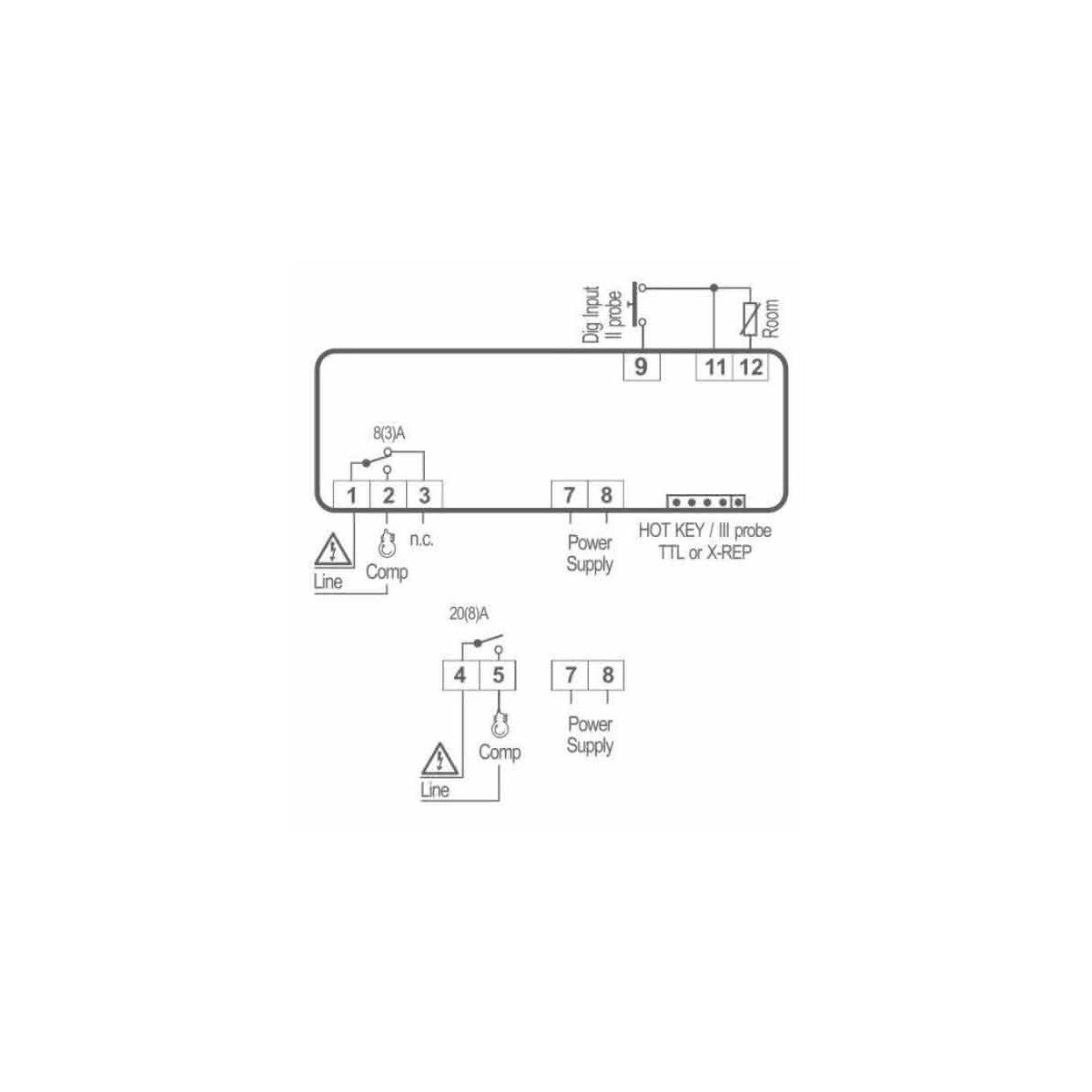

Can also be used as a replacement for the XR20CX-5N0C0 if you do not require the normally open contact 1 in the 8A version. Please note that there will be a different pin assignment (4,5 instead of 2,3!).
