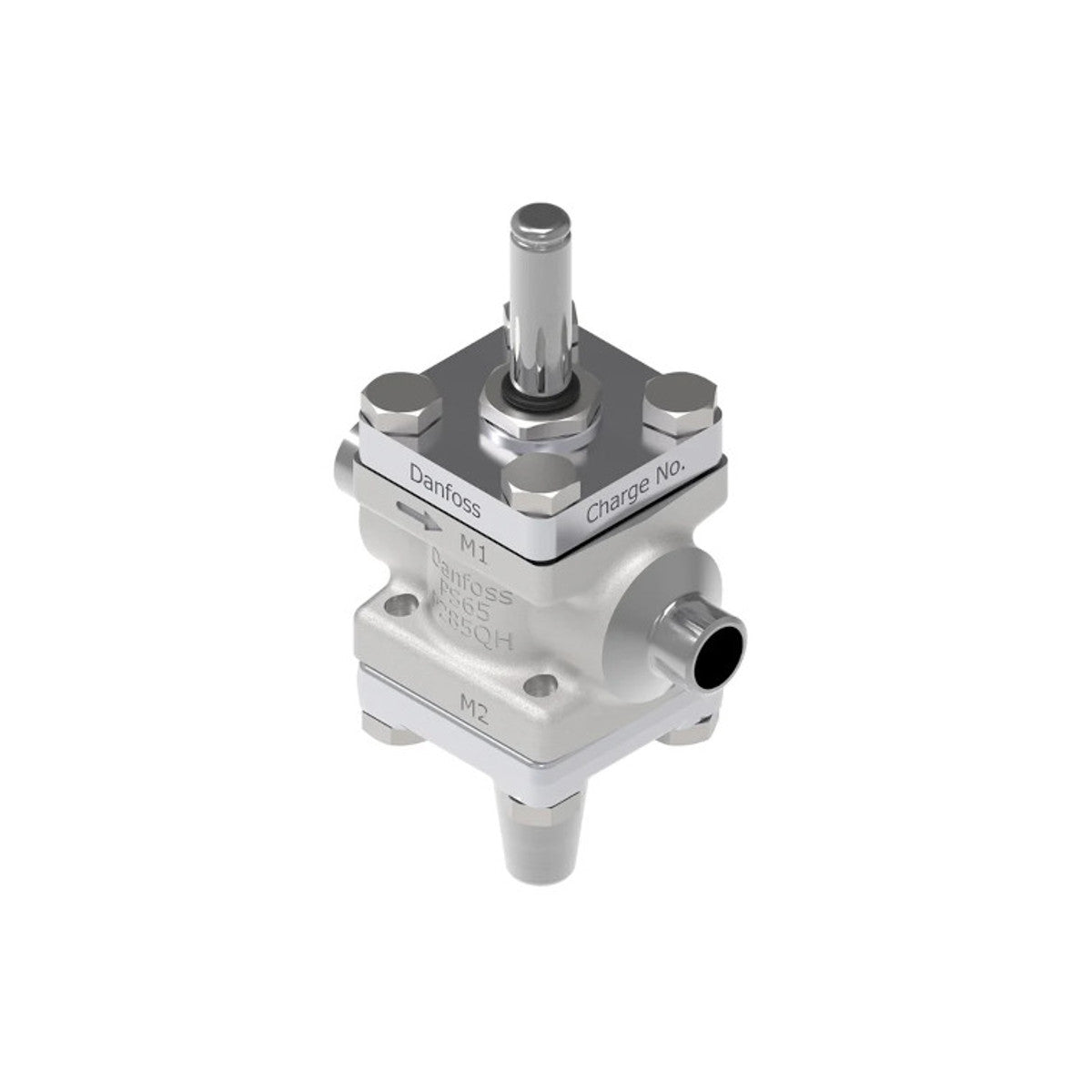

Valve station ICF 20-2-121 Danfoss 027L3826

Valve Station ICF 20-2-121 15mm DIN 15 Solenoid Valve Danfoss 027L3826

Danfoss Valve Station ICF 20-2-121L DIN 15 globe valve with solenoid valve module, 65 bar. In this configuration, the valve station functions as a solenoid valve.

Technical Details:

• Max. allowable operating pressure: 65 bar
• Length: 121 mm
• Temperature range: -60 °C to +120 °C
• Connection size: 15mm, 1/2 inch
• Min. 0.0 bar
• MOPD: 21 bar
• Kv=1.8 m³/h
• Without coil

The ICF valve station is based on advanced technology and combines several functions in one housing, which can replace a number of conventional mechanical, electromechanical, and electronically operated valves. ICF valve stations are designed for low and high-pressure refrigerants and can be used in lines for pumped liquids, liquid injection lines, liquid drain lines, and hot gas lines. They are supplied as a complete assembly and are fully high-pressure tested, and their functions are also tested under factory-controlled conditions. An identification number corresponds to an application solution.
