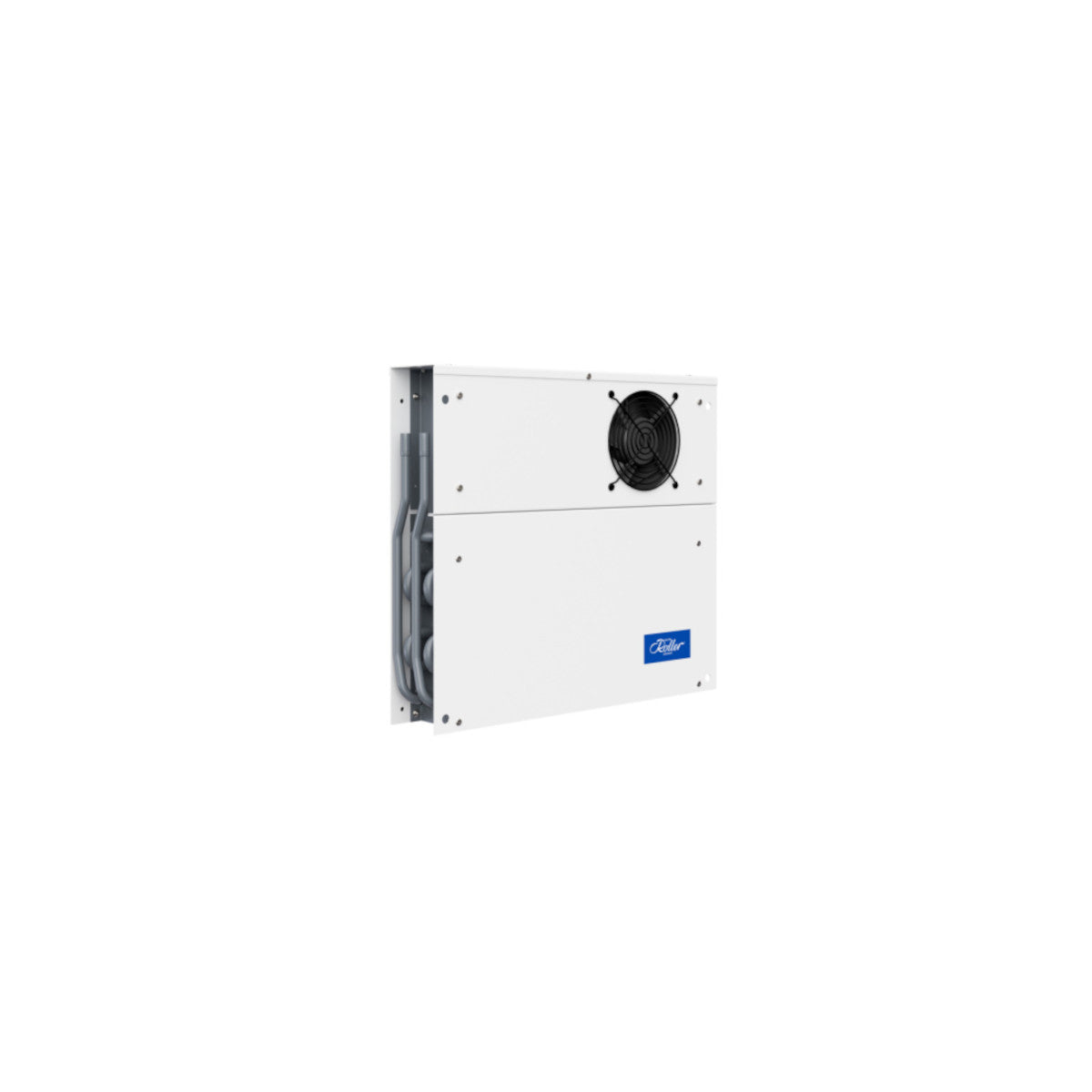

VD2ECplus Roller

VD 2 EC Plus Counter Evaporator Roller 0015860

Fan air cooler Roller air cooler VD2ECPlus heat exchanger with protective coating for refrigerated display cases and cold rooms above 0°C. Replaces the VD2 Plus

Technical data

• Highly efficient EC fans (S2 EC 120)
• Protection class: IP 65
• Impeller diameter: 120 mm
• wired to junction box
• Cooling capacity R134a: 0.545 kW at 15 K to - 8°C, 0.333 kW at 10 K to - 5°C
• Cooling capacity R513A: 0.545 kW at 15 K to - 8°C, 0.333 kW at 10 K to - 5°C
• Cooling capacity R449A: 0.571 kW at 15 K to - 8°C, 0.348 kW at 10 K to - 5°C
• Cooling capacity R452A: 0.564 kW at 15 K to - 8°C, 0.345 kW at 10 K to - 5°C
• Fin spacing: 4.5 mm
• Cooling surface: 2.2 m²
• Air flow: 205 m³/h
• Tube volume: 0.37 dm³
• MS0390 (8.5 mm)
• Connections inlet/outlet: 10 x1mm
• Voltage: 230V 50/60 Hz
• Fan 2 x 6 W / 0.07 A
• Dimensions (H x L x D): 440 x 85 x 390 mm

Housing: Aluminum, white powder-coated, corrosion-resistant, impact and scratch-proof.
