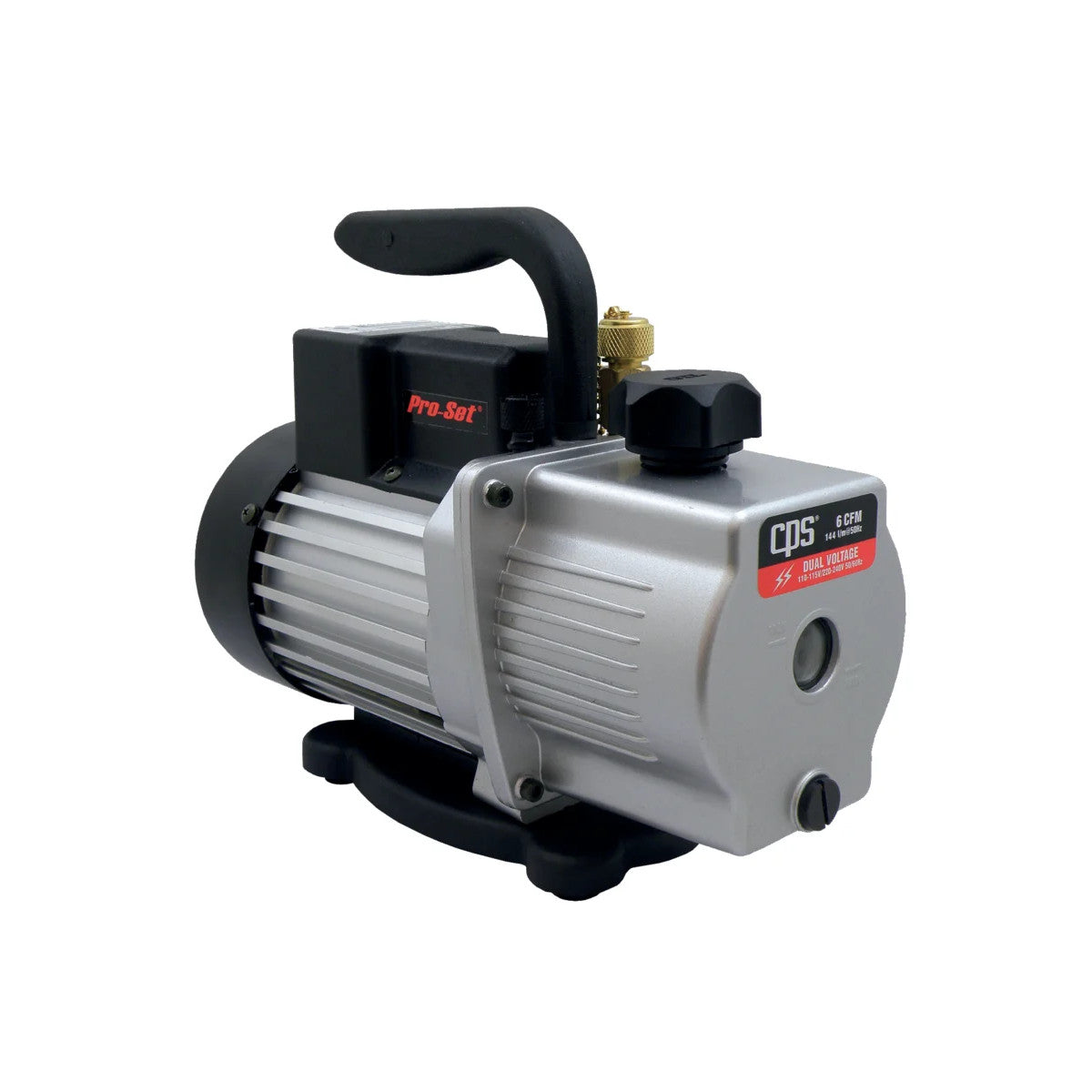

Vacuum Pump VPS6DEV 2-stage cps

Spark-Proof Vacuum Pump VS6DEV Pro-Set CPS for all refrigerants of class A1, A2L and A3 and NH3

The VS6DEV vacuum pump is no longer manufactured and has been replaced by the VPB6D. The 2-stage VPS6DEV vacuum pump from CPS is a 6 CFM pump for safety group A1/A2L refrigerants (R600, R290, R1234yf, R32), ammonia, with a versatile 1/2 HP dual voltage motor and a solenoid valve. The solenoid valve prevents air from re-entering the vacuumed system. The VPS6DEV and VPS12DE models, with their sealed components, are also suitable for use with class A3 (non-toxic, explosive) refrigerants such as R600, R290, and ammonia systems. CPS two-stage vacuum pumps are the premium solution for achieving the deepest ultimate vacuum (10 or 25 microns, depending on the model), the widest range of power output (1/3 to 1 HP), and free air displacement (48 l/mm to 288 l/m) within the Pro-Set range. These pumps are also equipped with a gas ballast valve, which accelerates the achievement of a deep vacuum, and are offered as single and dual voltage models. All models are suitable for use with class A1 (non-toxic, non-flammable) and A2 (non-toxic, flammable) refrigerants.

Technical data

• Stages: 2
• Ultimate vacuum: 10 Micron
• Refrigerant class: A1
• Free air displacement: 144 l/min at 50 Hz
• Motor power: 2880 / 3440 rpm / 1/2 HP
• Voltage: 220-240V/50Hz
• Power cable connection: Universal IEC socket
• On/off switch: yes
• Operating temperature range: 0 °C to 52 °C
• Oil capacity: 470 ml
• Gas ballast valve: yes
• Inlet connections: 1/4" SAE and 3/8" SAE
• Dimensions: 33.27 x 13.97 x 25.4 cm
