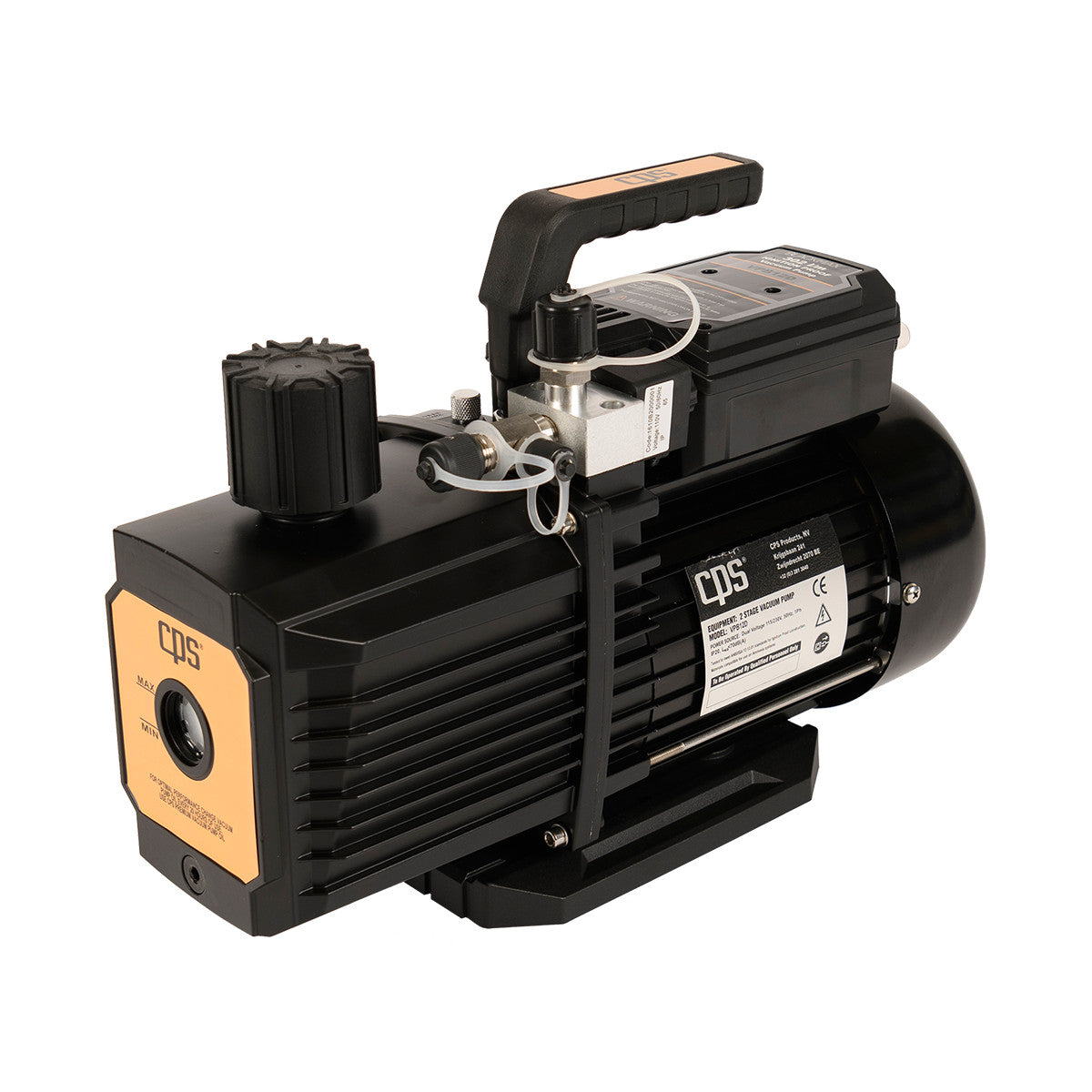

Vacuum Pump VPB6D 2-stage cps

Spark-Proof Vacuum Pump VPB6D Black Max cps products

Technical Data

• Stages: 2
• Ultimate Vacuum: 10 Micron
• Refrigerant Class: A1/A2L/A2/A3/B2
• Free Air Displacement: 151 l/min at 50 Hz
• Motor Power: 2880 / 3440 RPM / 1/2 HP
• Voltage: Dual-Voltage (110-120V and 220-240V 50/60Hz)
• Power Cord Connection: Universal IEC Socket
• On/Off Switch: Yes
• Operating Temperature Range: 0 °C to 52 °C
• Oil Capacity: 470 ml
• Gas Ballast Valve: Yes
• Inlet Connections: 1/4" SAE and 3/8" SAE
• Dimensions: 310 x 127 x 244 mm
• Weight: 11 kg

Replaces the vacuum pump VPS6DEV. The 2-stage vacuum pump VPB6D replaces the VPS6DEV for all refrigerants of safety group A1/A2L (R600, R290, R1234yf, R32) & Ammonia (NH3) with a versatile dual voltage 1/2 HP motor and a solenoid valve. The solenoid valve prevents air from re-entering the evacuated system. The VPB12D and VPS12DE models, with their sealed components, are also suitable for use with Class A3 (non-toxic, explosive) refrigerants such as R600, R290, and ammonia systems. CPS two-stage vacuum pumps are the premium solution for achieving the deepest ultimate vacuum (10 or 25 microns, depending on model), the widest range of performance (1/3 to 1 HP), and free air displacement (48 l/min to 288 l/min) within the Pro-Set range. These pumps are also equipped with a gas ballast valve, which accelerates the achievement of a deep vacuum, and are offered as single and dual voltage models. All models are suitable for use with Class A1 (non-toxic, non-flammable) and A2 (non-toxic, flammable) refrigerants.
