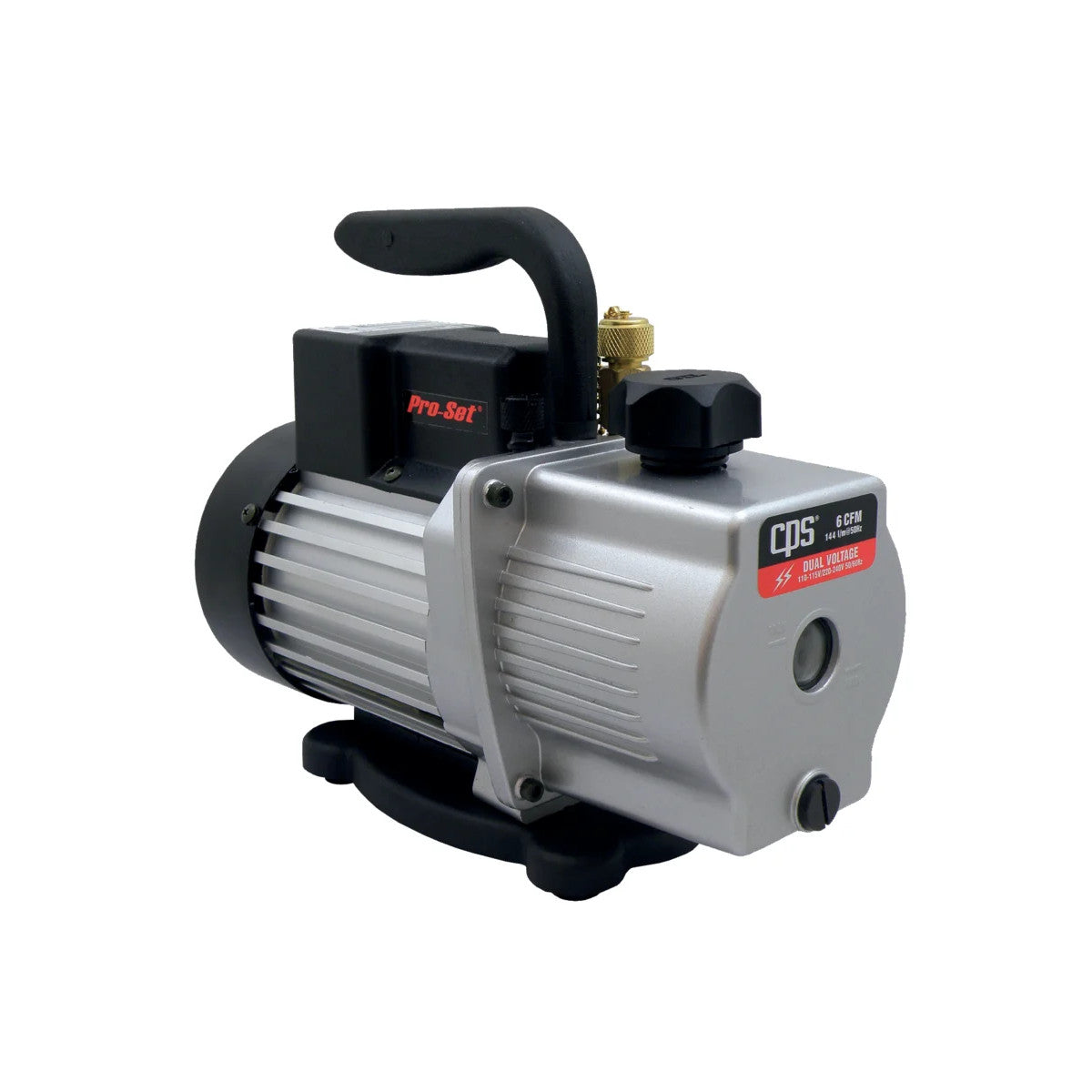

Vacuum Pump VP2D 110-120V / 220-240V 50-60Hz 2-Stage cps

Vacuum Pump VP2D Pro-Set 2-stage, Suction Ports 1/4" SAE, 3/8" SAE, 110-120V or 220-240V/50-60Hz

Two-stage vacuum pump VP2D Pro-Set® CPS, the premium solution for achieving the deepest ultimate vacuum, the widest range of performance, and the free air displacement within the Pro-Set series.

Technical Data

• Stages: Two
• Ultimate Vacuum: 10 Micron
• Refrigerant Class: A1
• Free Air Displacement: 48 l/min at 50 Hz
• Motor Power: 1440 / 1720 RPM / 1/3 HP
• Voltage: 110-120V or 220-240V/50-60Hz
• Power Cord Connection: Universal IEC socket and voltage selector switch
• On/Off Switch: Yes
• Operating Temperature Range: 0 °C to 52 °C
• Oil Capacity: 330 ml
• Gas Ballast Valve: Yes
• Inlet Connections: 1/4" SAE and 3/8" SAE
• Dimensions: 31 x 12.7 x 24.38 cm
• Weight: 8.0 kg
