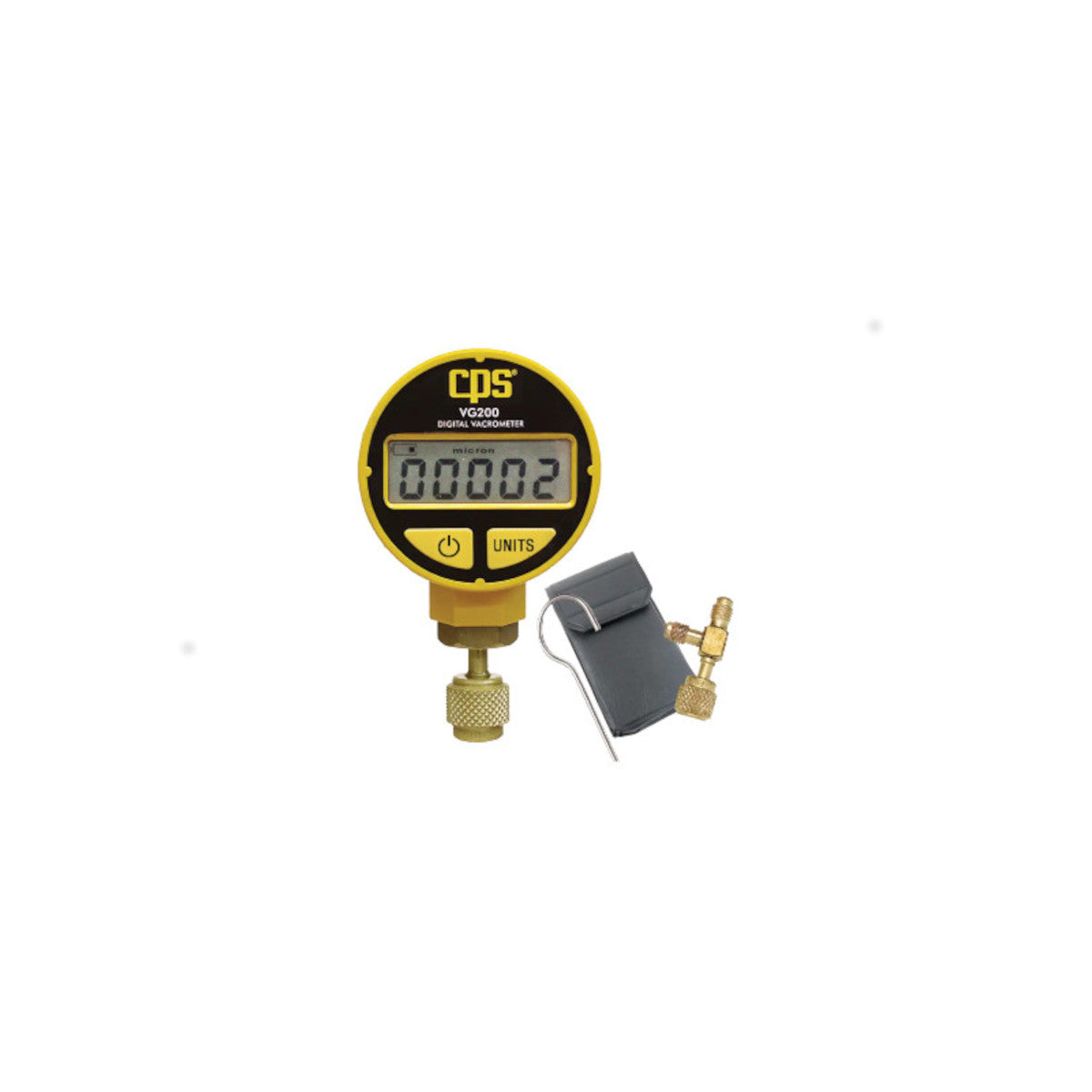

Vacuum Gauge VG201 Set

Digital Vacuum Gauge VG201 SET

Extraction stations, vacuum pumps, vacuum gauges, incl. carrying case; hook for hanging; adapter AVT45, 9V battery, CE tested | VG201 is identical to VG200 plus an additional 1/8” NPT threaded adapter for mounting on the test manifold. This measuring instrument with advantageous and integrated technology offers you continuous digital readings of the respective evacuation process on a large 5-digit LCD. The measuring device is adjustable for readings in Microns, Torr, in/hg or mBar. The integrated sensor is resistant up to approx. 28 bar. 20 hours of continuous use with 9V alkaline batteries. The integrated warning device alerts you when the battery is low and automatically switches off when not in use.

Technical data

• Operating pressure range: atmospheric pressure up to max. operating pressure: approx. 28 bar
• Accuracy +/- 10% of reading
• Operating temperature 0°C to 50°C
• Operating and storage humidity 0 - 95%
• Storage temperature: -40 to 85°C
• Power supply: 1 pc. 9V alkaline battery (ANSI 1604AC - IEC 6LR61)
• Battery life: >20 hours continuous use. Device automatically switches off after 5 minutes of inactivity.
• Weight 153 g. without battery
• Dimensions 68 mm Ø with 40 mm depth and 124 mm overall length
• Standard 1/4”SAE female with valve core depressor
• Battery indicator: Battery symbol with 3 segments (VG200). LED low battery indicator (VG100)
