Cooling unit TTF300 wall plug

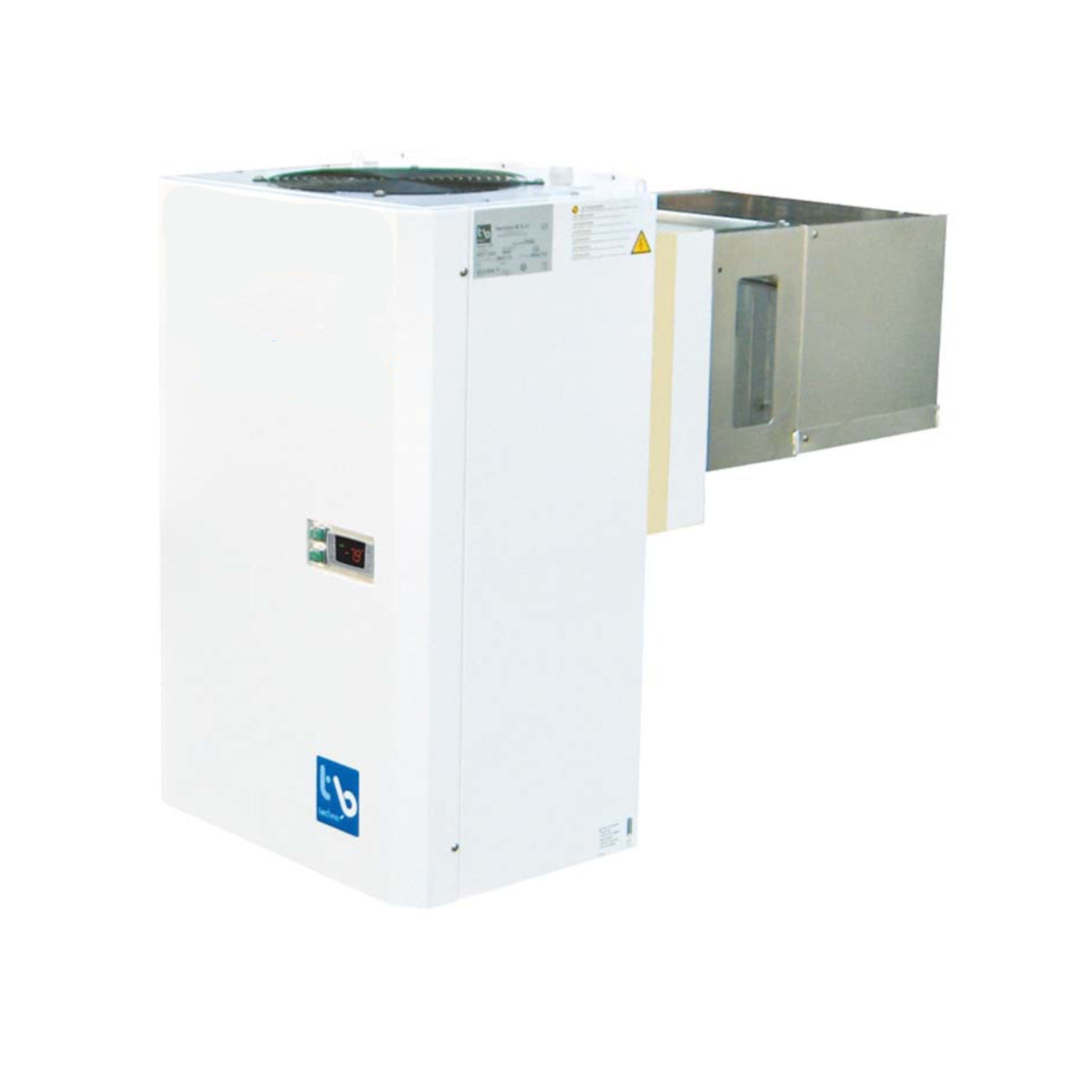

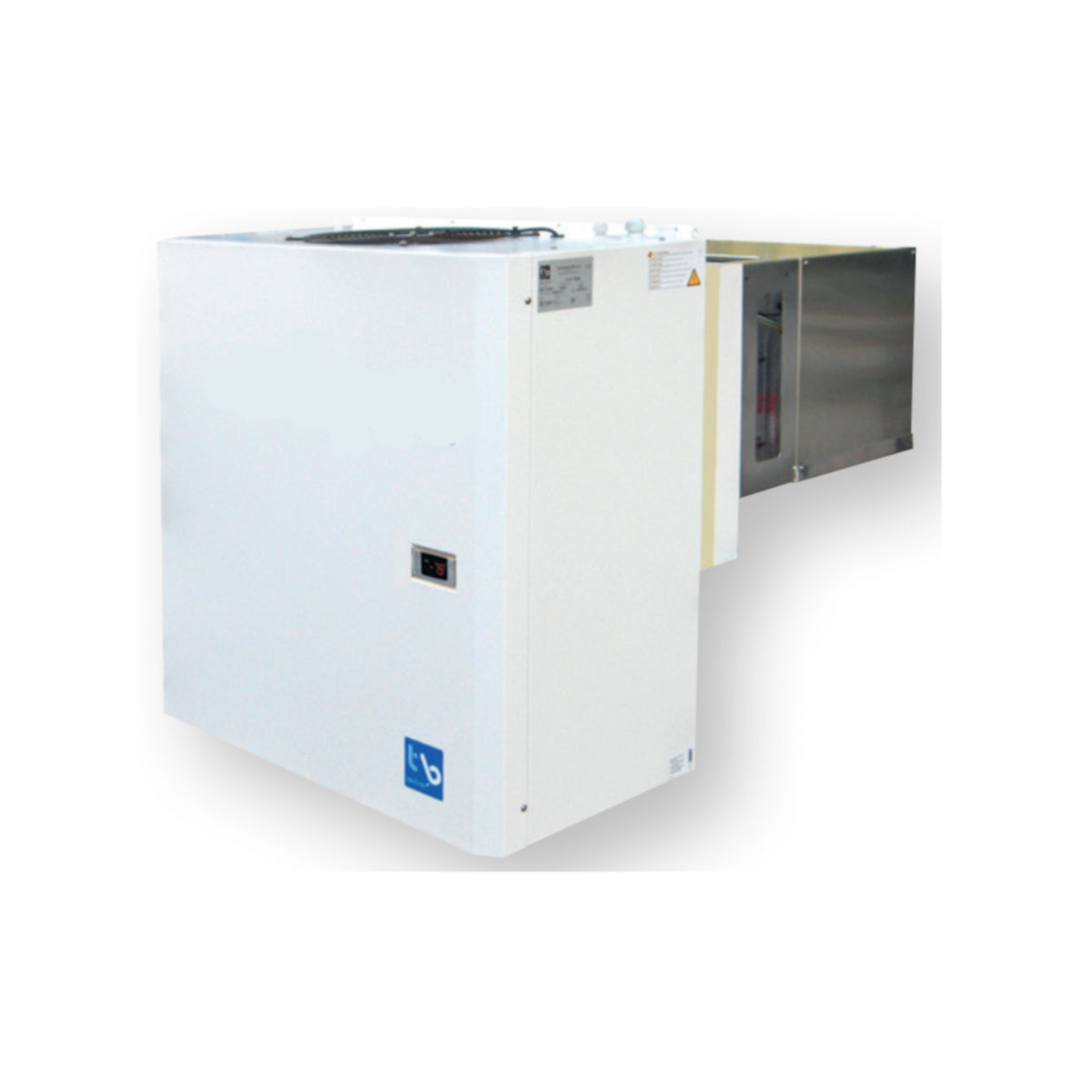

Wall-mounted Refrigeration Unit TTF300

Plug-and-play wall-mounted refrigeration unit TTF300 from Technoblock for deep freezing with high-pressure switch. The unit is pre-filled with refrigerant. For installation, it is hung in a prepared opening in the cold room wall so that the evaporator with fan is inside the cold room and the unit is on the outside of the wall (see installation diagram). Replaces models TTB300, VTK3300 & TTZ300.

The unit is suitable for cold rooms:

• up to 24.5 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -18°C
• up to 18 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -22°C
• up to 14.3 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -25°C

The exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 400V/3/50Hz
• Refrigerant: R449A
• Max. power consumption: 2.47 kW
• Displacement: 11.30 m³/h
• Injection system: Capillary
• Preset temperature range: -18°C to -25°C
• Wall opening: 735 x 475 mm
• Dimensions (W x D x H): 770 x 1070 x 860 mm
