Cooling unit TTF203 wall plug

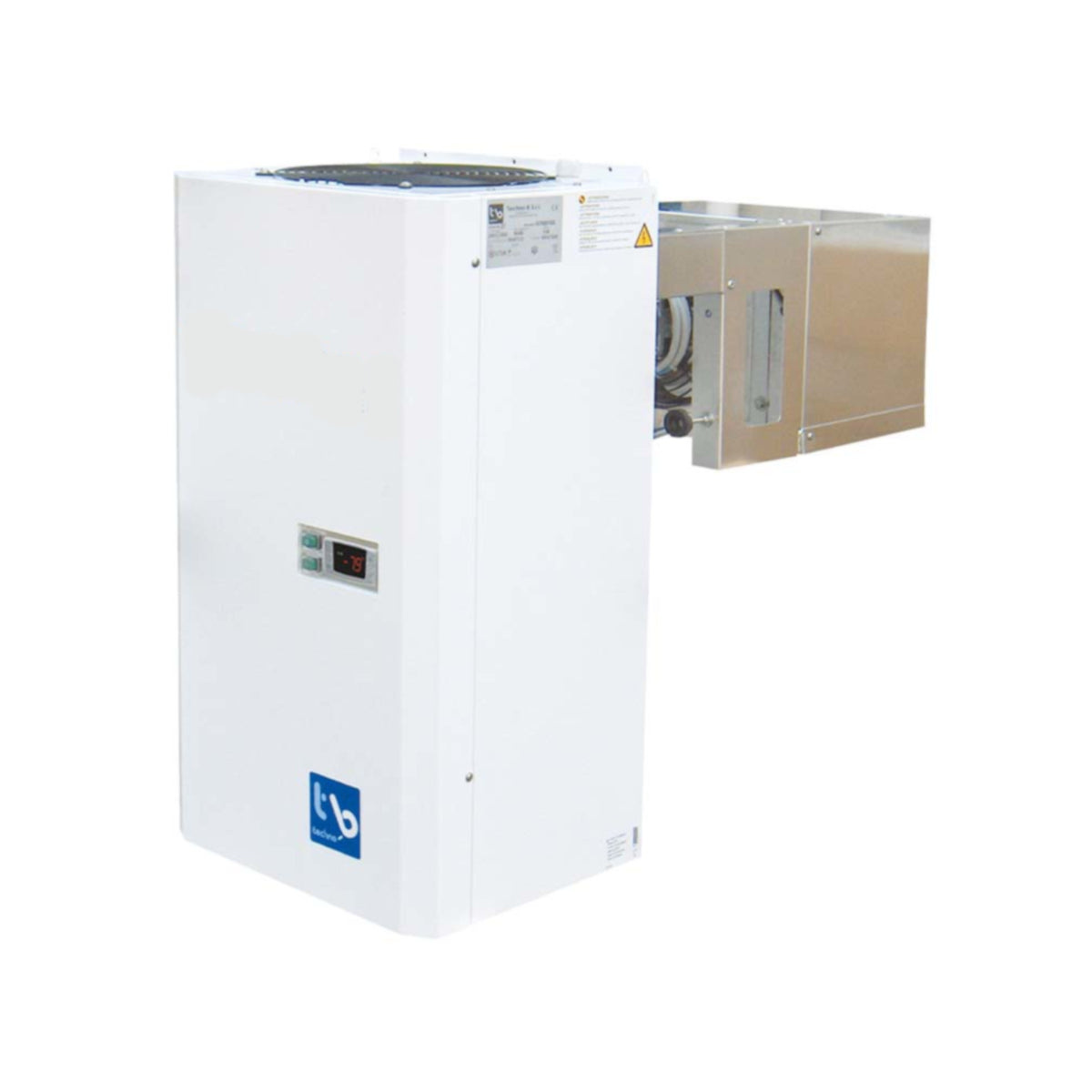

Wall Mounted Unit TTF203

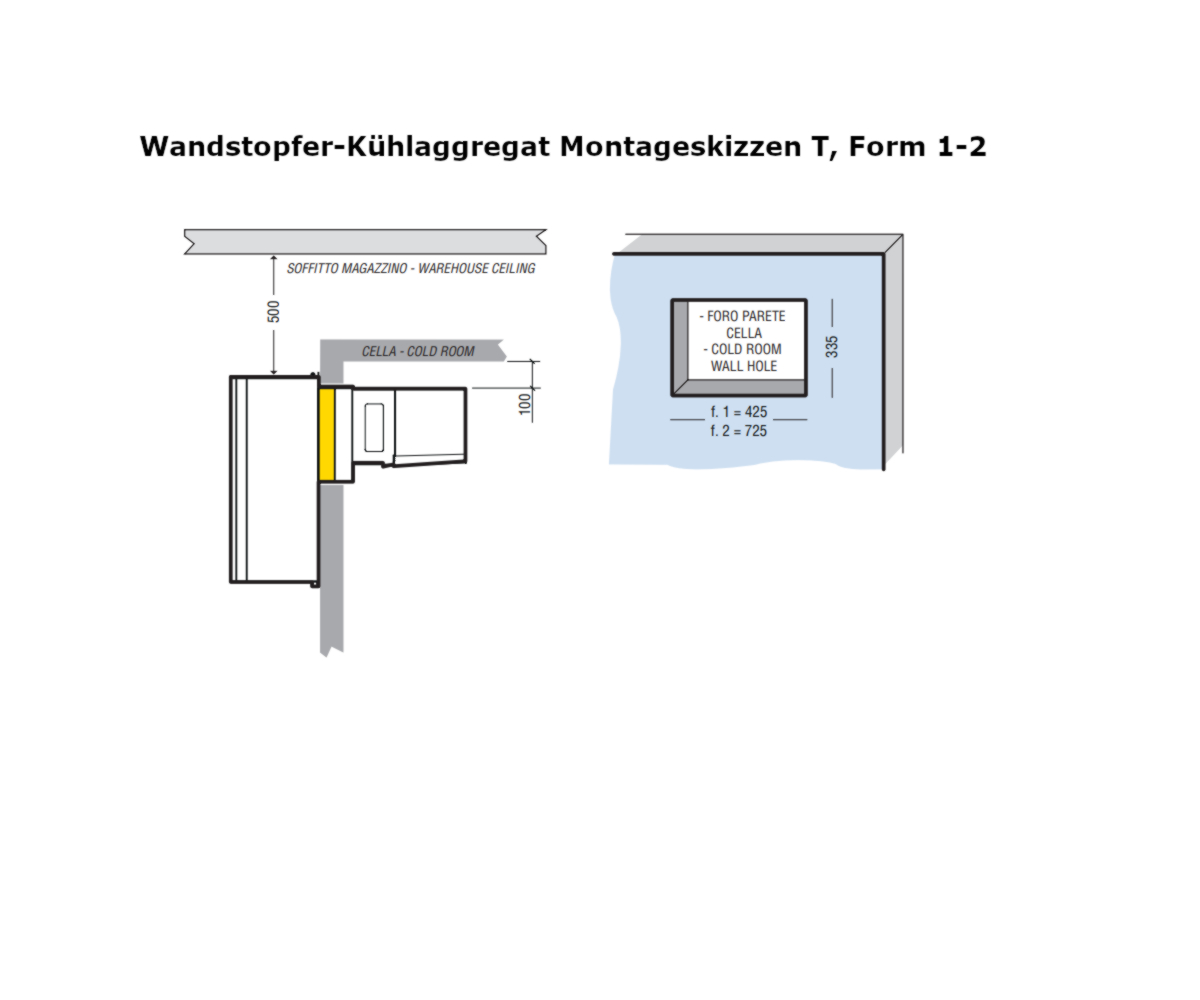

Plug-and-play wall-mounted refrigeration unit TTF203 from Technoblock for deep freezing with high-pressure switch. The unit is pre-filled with refrigerant. For installation, it is hung in a prepared opening in the cold room wall, so that the evaporator with fan is inside the cell and the unit is on the outside of the wall (see installation diagram). Replaces models TTZ300, VK203 and VTK203.

The unit is suitable for cold rooms:

• up to 21.4 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -18°C
• up to 15.6 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -22°C
• up to 12.3 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -25°C

Exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 400V/3/50Hz
• Refrigerant: R449A
• Max. power consumption: 2.63 kW
• Displacement: 11.81 m³/h
• Injection system: Capillary
• Pre-set temperature range: -18°C to -25°C
• Wall opening: 725 x 335 mm
• Dimensions (W x D x H): 785 x 831 x 767 mm
