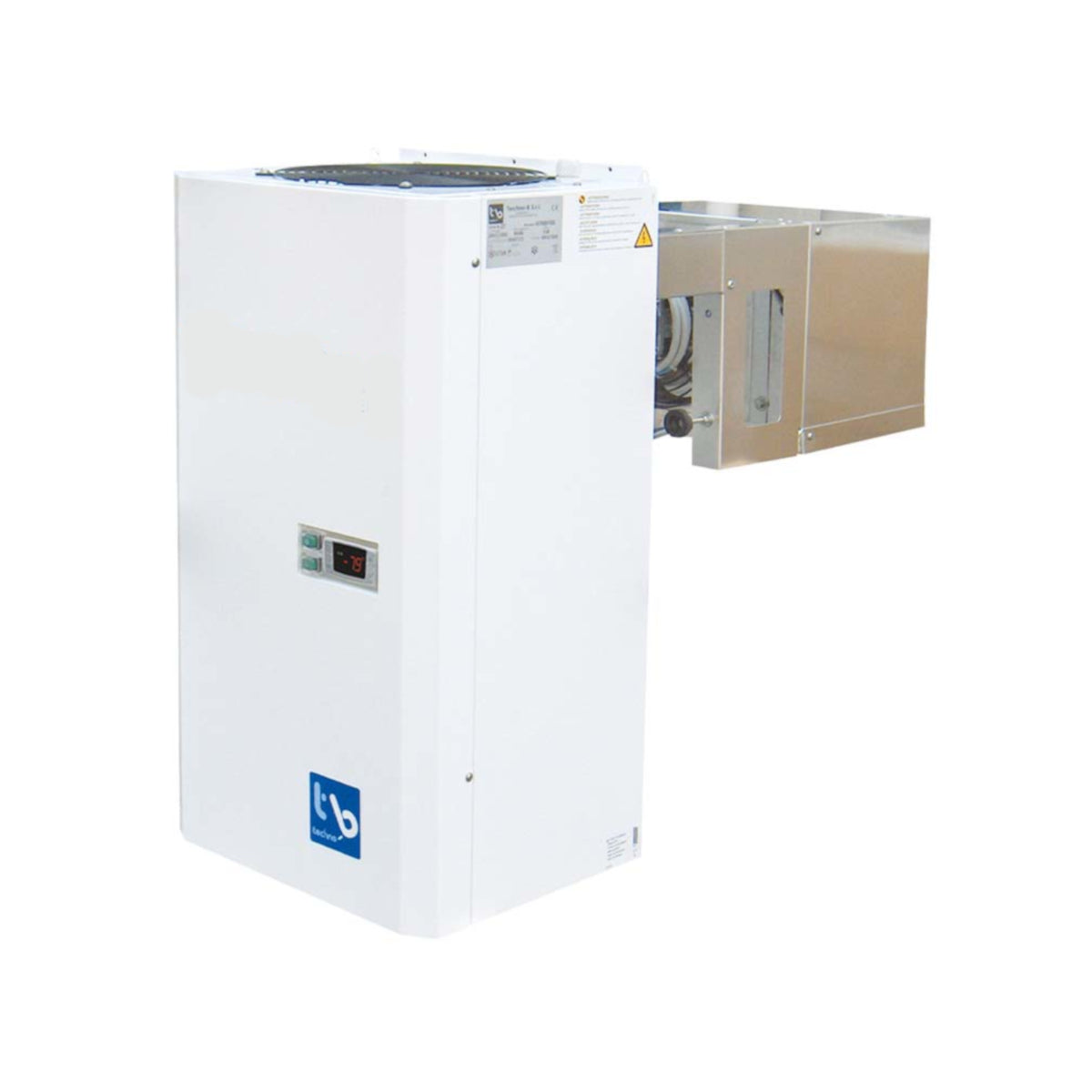

TTX075 Wall Buffer

Up to 20 m³ Wall Stopper TTX075 R452A 1.57 kW at Ti = +5°C/Ta = +32°C, 230V 50Hz, ready to plug in

compact design

quick and easy installation

pre-filled with refrigerant

excl. VAT incl. VAT

1.869,00 € 2.224,11 € incl. VAT

~~1.890,00 € excl. VAT~~ ~~2.249,10 € incl. VAT~~ 1.869,00 € 1.890,00 € excl. VAT 2.224,11 € 2.249,10 € incl. VAT 1.890,00 € 2.249,10 €

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 2011004 Hersteller TechnoB

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Through-wall unit TTX075 R452A 1.57 kW up to 20 m³ at Ti = +5°C/Ta = +32°C, 230V 50Hz, plug-and-play

Through-wall refrigeration unit TTX075 for cold rooms up to 20 cbm / +5 °C, normal refrigeration. With power-saving hot gas defrost, plug-and-play. Replaces models TTN075 and Technoblock VN075 and VTN075.

Technical data

Mains voltage: 230V/1/50Hz
Refrigerant: R452A
Max. power consumption: 1.16 kW
Displacement: 3.15 m³/h
Dimensions (H x W): 767 x 485 mm
Injection system: capillary tube
with high-pressure switch
preset temperature range: +5°C to -5°C
up to 20 cbm at Ta = +32°C and room temperature +5°C
up to 13.4 cbm at Ta = +32°C and room temperature 0°C
up to 10 cbm at Ta = +32°C and room temperature -5°C
Weight: 58 kg

During installation, the refrigeration unit is hung into a prepared opening in the cold room wall so that the evaporator with fan is inside the cell and the unit is on the outside of the wall.
