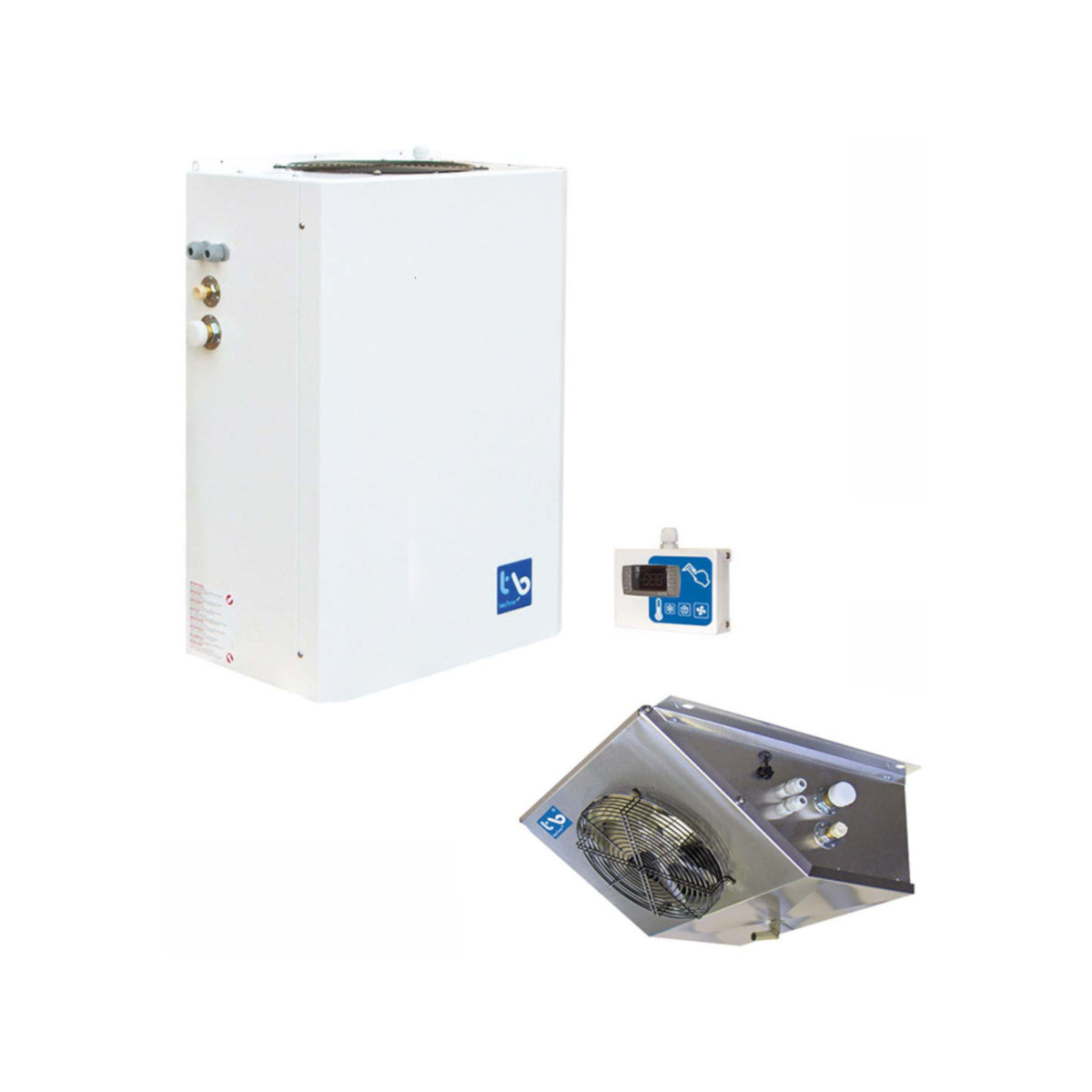

Cooling Unit STW075 Split

STW075 Split Refrigeration Unit

Plug-and-play split refrigeration unit STW075 from Technoblock for normal cooling with high-pressure switch. The unit features quick installation and commissioning and is pre-filled with refrigerant. Replaces models SRX075, CSN075, and CN075.

The unit is suitable for cold rooms:

• up to 17.9 m³ room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 12.1 m³ room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 7.9 m³ room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

The exact performance data can be found in the technical data sheet.

General Features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 1.19 kW
• Displacement: 3.15 m³/h
• Injection system: Capillary
• Pre-set temperature range: +5°C to -5°C
• Dimensions (W x D x H): 485 x 310 x 767 mm
