Starter Regulator PRC-11B Solder 800385

Start Button PRC-11 B Solder 22 mm | Alco 800385

tested brand quality

suitable for continuous operation

durable and robust

excl. VAT incl. VAT

164,70 € 195,99 € incl. VAT

164,70 € excl. VAT 195,99 € incl. VAT

Sale Sold out

Extended delivery times

In approx. 14 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 0090202 Manufacturer Alco

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

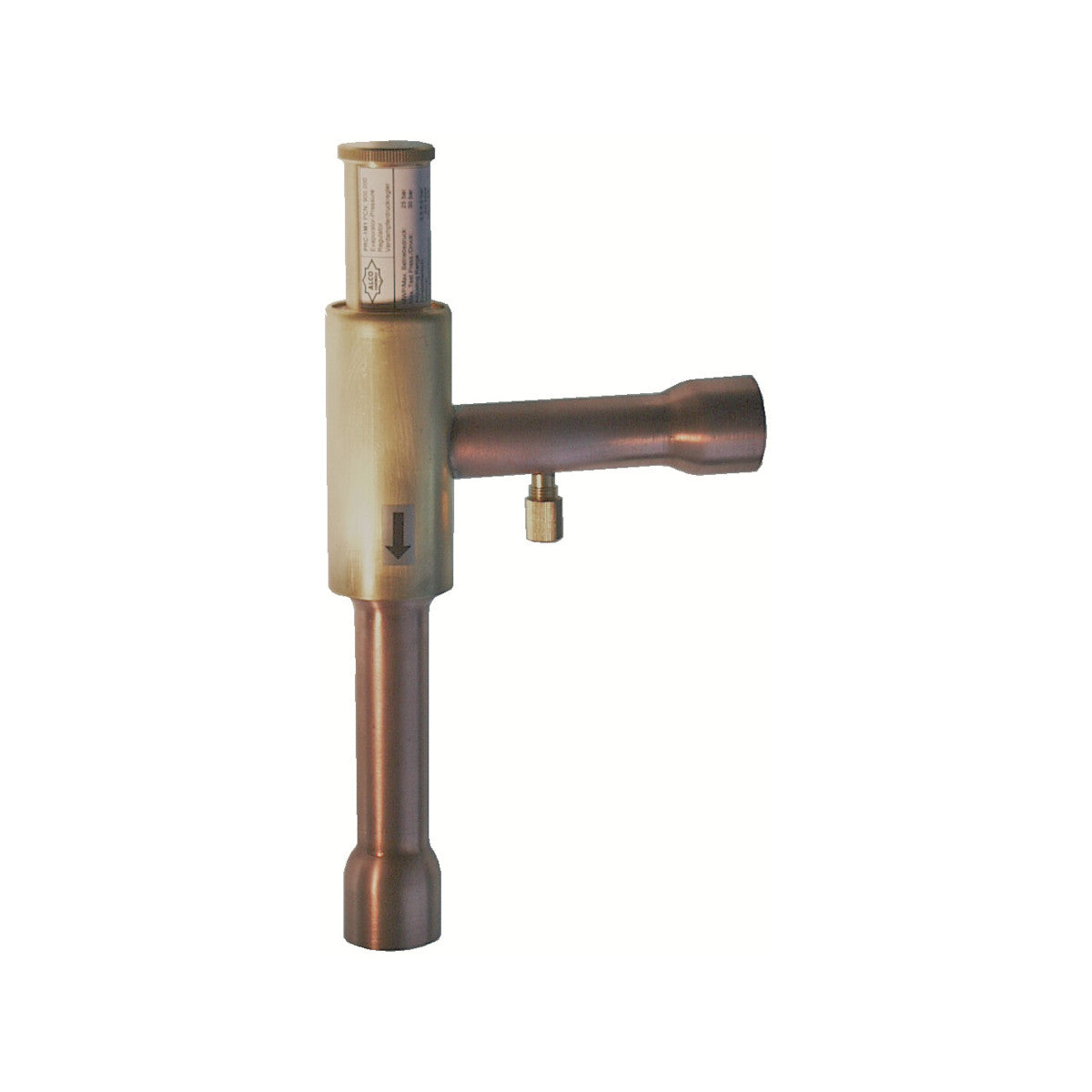

Crankcase Pressure Regulators Alco PRC-11B Solder 22 mm 7/8" | 800385

The crankcase pressure regulator is installed in the suction line before the compressor and protects the compressor against overload when starting up after a long standstill or after defrosting (high pressure in the evaporator).

Technical Data

Connection: 22mm, 7/8" ODF
Nominal capacity: R134a: 3.0kW, R404A/R507A: 4.5kW, R407C: 4.5kW
Max. permissible operating pressure: 25 bar
Medium temperature range: -30°C to +80°C
Refrigerants: HFC, HCFC
Control range: 0.5 - 6.9 bar
Factory setting: 2 bar
Pressure change per turn: Valve size 1 (PRC-11x): 0.6 bar, Valve size 2 (PRC-21x): 0.4 bar
with pressure port: 7/16-20 UNF / 1/4" SAE
