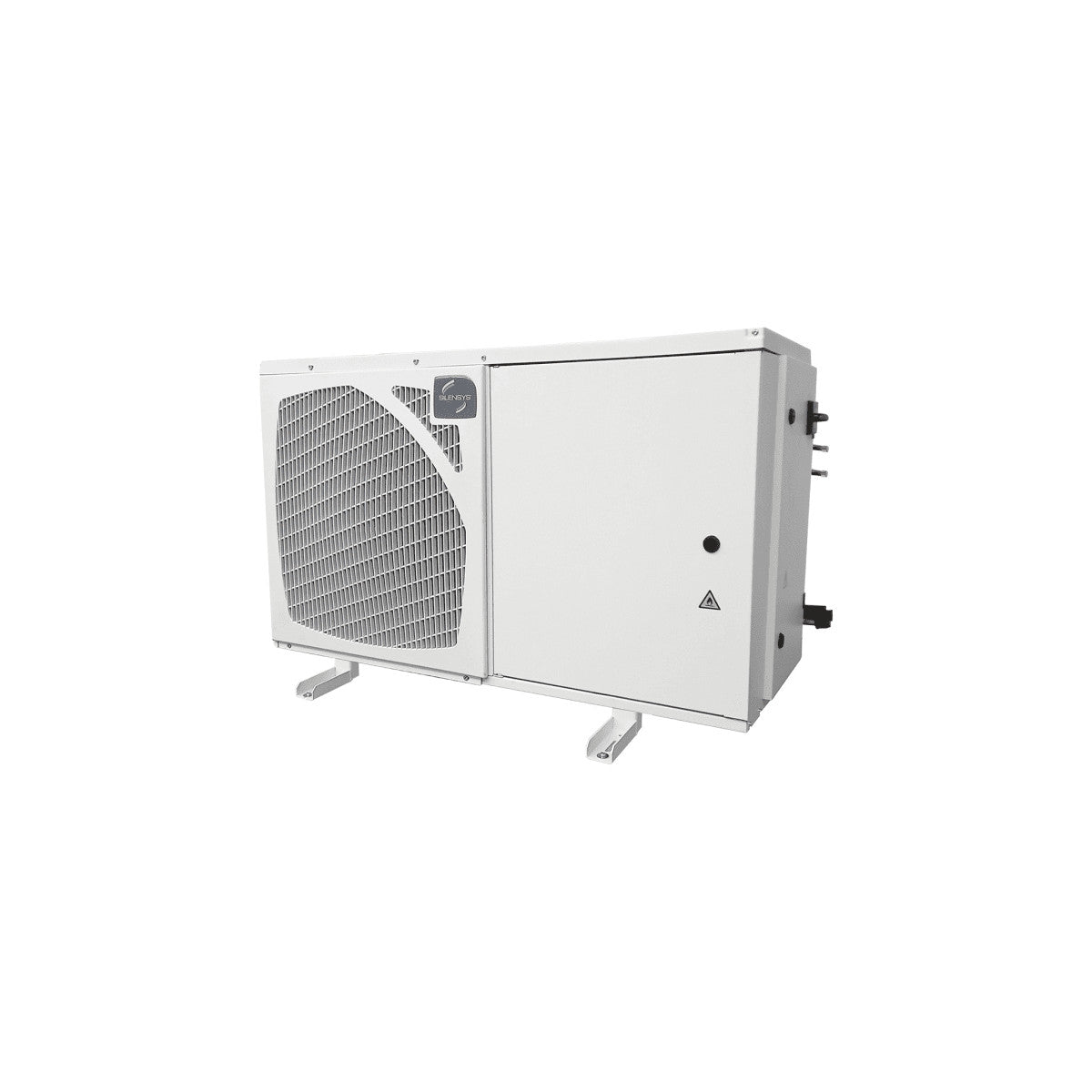

Condensing unit SILAJ2446P-TX 400V Tecumseh Silensys

Condensing unit SILAJ2446P-TX 400V Tecumseh Silensys

Sound-proofed, hermetic condensing unit SILAJ2446P-TX from Tecumseh Silensys Advanced for low-pressure applications with a mains voltage of 400V/3/50Hz. Replaces model SILAJ2446Z-TZ.
excl. VAT incl. VAT
Regular price 1.944,00 € 2.313,36 € incl. VAT
Regular price excl. VAT 0,00 € incl. VAT Sale price 1.944,00 € excl. VAT 2.313,36 € incl. VAT
Sale Sold out
Extended delivery times
In approx. 6 working days
Quantity

ArtNr 9102493 Hersteller Tecumseh Datenblatt

  • 12 months material warranty
  • Purchase on account
  • 14-day return policy
View full details

Product description

Condensing unit SILAJ2446P-TX

Sound-insulated condensing unit SILAJ2446P-TX from Tecumseh for low-pressure applications in a fully hermetic design. Silensys Advanced line condensing units are low-noise and therefore an ideal solution for urban areas. They offer high energy efficiency. Replaces model SILAJ2446Z-TZ.

The exact performance data can be found in the technical data sheet.

General characteristics

  • Motor type: TRI
  • Refrigerants: R452A, R404A, R454C, R455A
  • Mains voltage: 400V/3/50Hz
  • Max. current consumption: 2.9 A
  • Receiver: 1.5 L
  • Air flow rate: 1200 m³/h
  • Liquid line diameter: 1/4"
  • Suction line diameter: 1/2"
  • Fan: 1 x 300 mm / 41 W

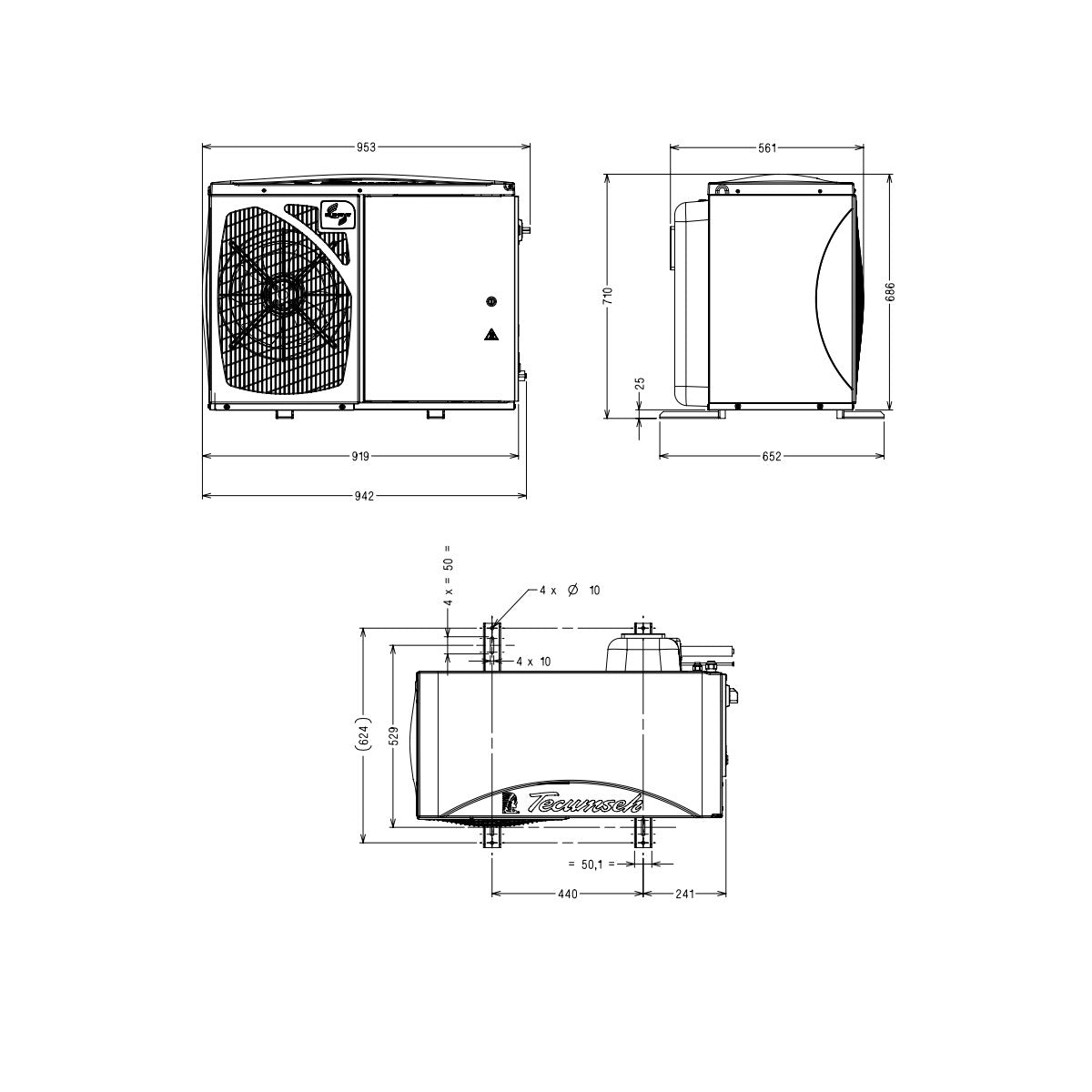

  • Dimensions (LxWxH): 1178 x 652 x 710 mm
  • Shipping class: Freight forwarder
  • Brand: Tecumseh
  • Weight: 85.0 kg
