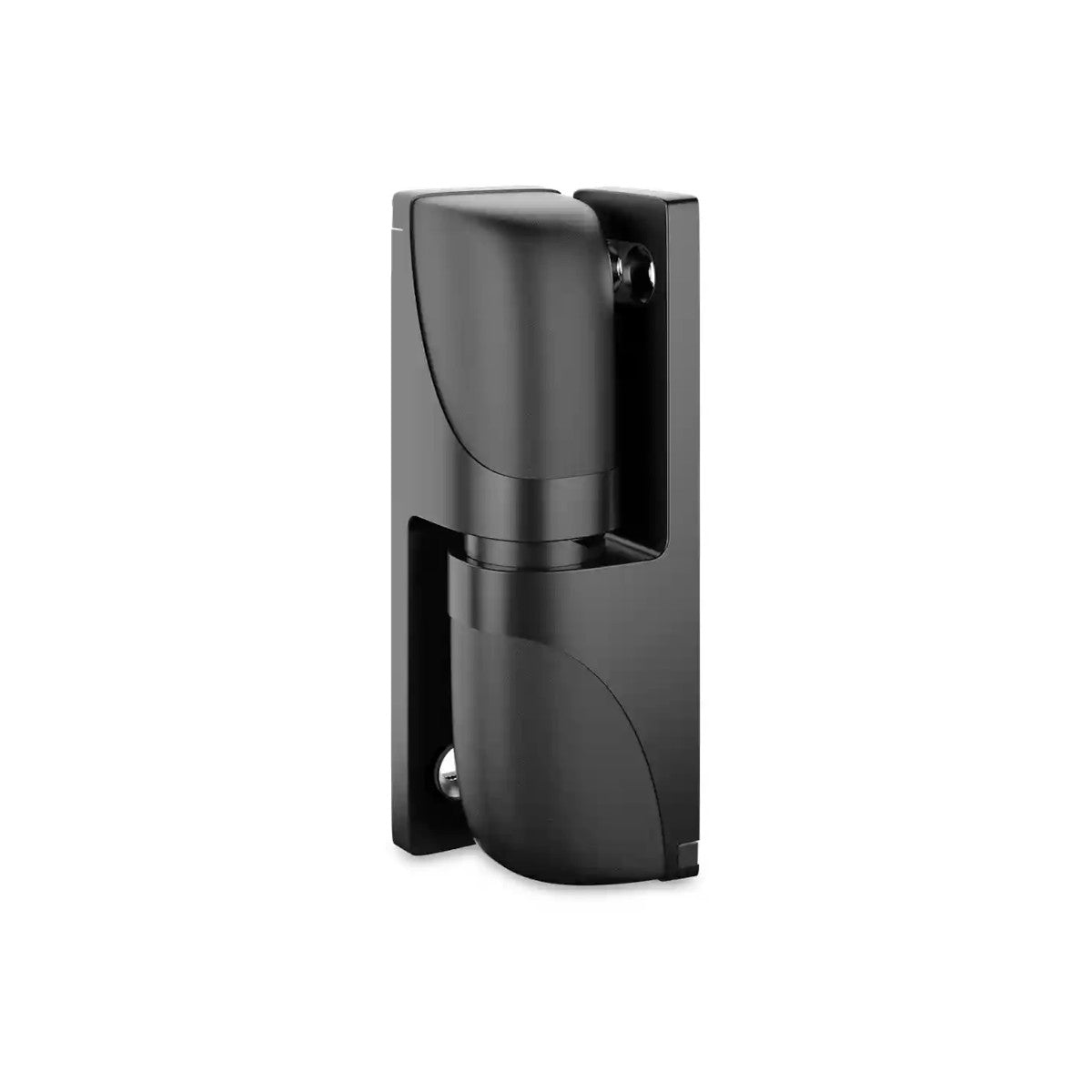

Hinge 3.51.1011.0 Varioflex STUV

Corner Hinge Varioflex 3.51.1001.0 STUV, left / right black, without accessories

robust and durable

corrosion resistant

easy installation

excl. VAT incl. VAT

66,10 € 78,66 € incl. VAT

66,10 € excl. VAT 78,66 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 1001564 Manufacturer STUV

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Corner Hinge Varioflex 3.51.1011.0 from STUV usable left or right without accessories

(Inner parts please order separately, rising or non-rising) Corner hinge, lift-off 3.51.1011.0 from STUV for cold and freezer room doors. Quality Made in Germany.

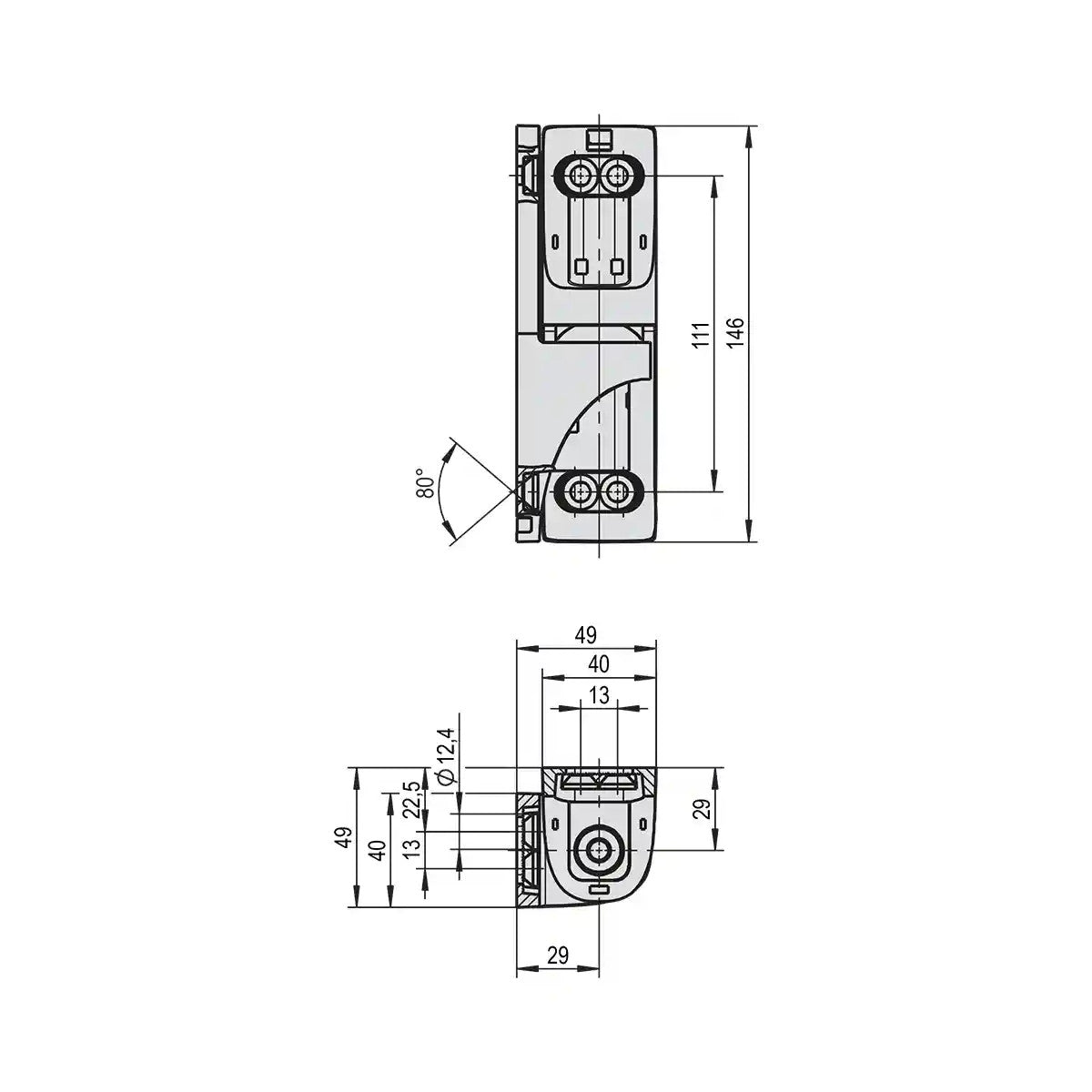

Technical data

Series: Varioflex 3.51.1011.0 | 3.51.1001.0
Version: left or right rising, lockable at approx. 115°, for rebated doors and overlay doors, lift-off, with cover caps, opening angle 180°
Material: Die-cast zinc
Surface: EPS coated, black (RAL 9005)
Overlay: min. 49 mm
Max. door weight: approx. 80 kg
Height adjustable: +/- 4 mm
Max. door size: 2.0 m x 1.0 m
Accessory item number: 1001568 or 1001571, can be ordered separately
