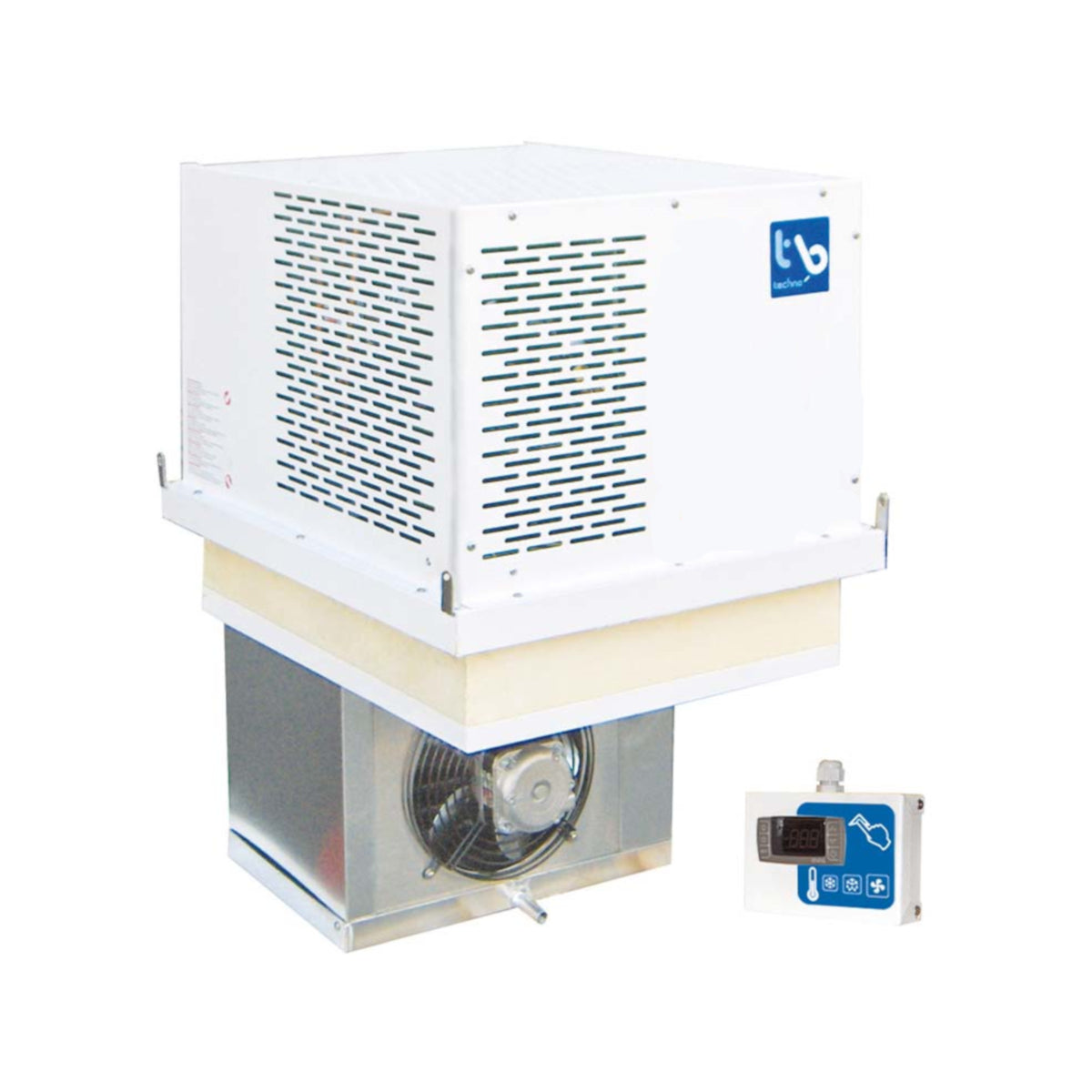

Refrigeration unit PTW075 ceiling plug

Ceiling Plug PTW075

Plug-and-play ceiling plug refrigeration unit PTW075 from Technoblock for normal refrigeration with energy-saving hot gas defrosting, high-pressure switch, and remote control panel with a 5m cable length. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is suspended in a prepared opening in the ceiling, so that the evaporator with fan is inside the cell and the unit is located on top of the cell's ceiling (see installation diagram). Replaces models PTX075 and SFN075.

The unit is suitable for cold rooms:

• up to 19.3 cbm room volume at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 14.1 cbm room volume at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 8.8 cbm room volume at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

The exact performance data can be found in the technical data sheet.

General Features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 1.16 kW
• Swept volume: 3.15 m³/h
• Ceiling cutout: 740 x 520 mm
• Injection system: Capillary
• Pre-set temperature range: +5°C to -5°C
