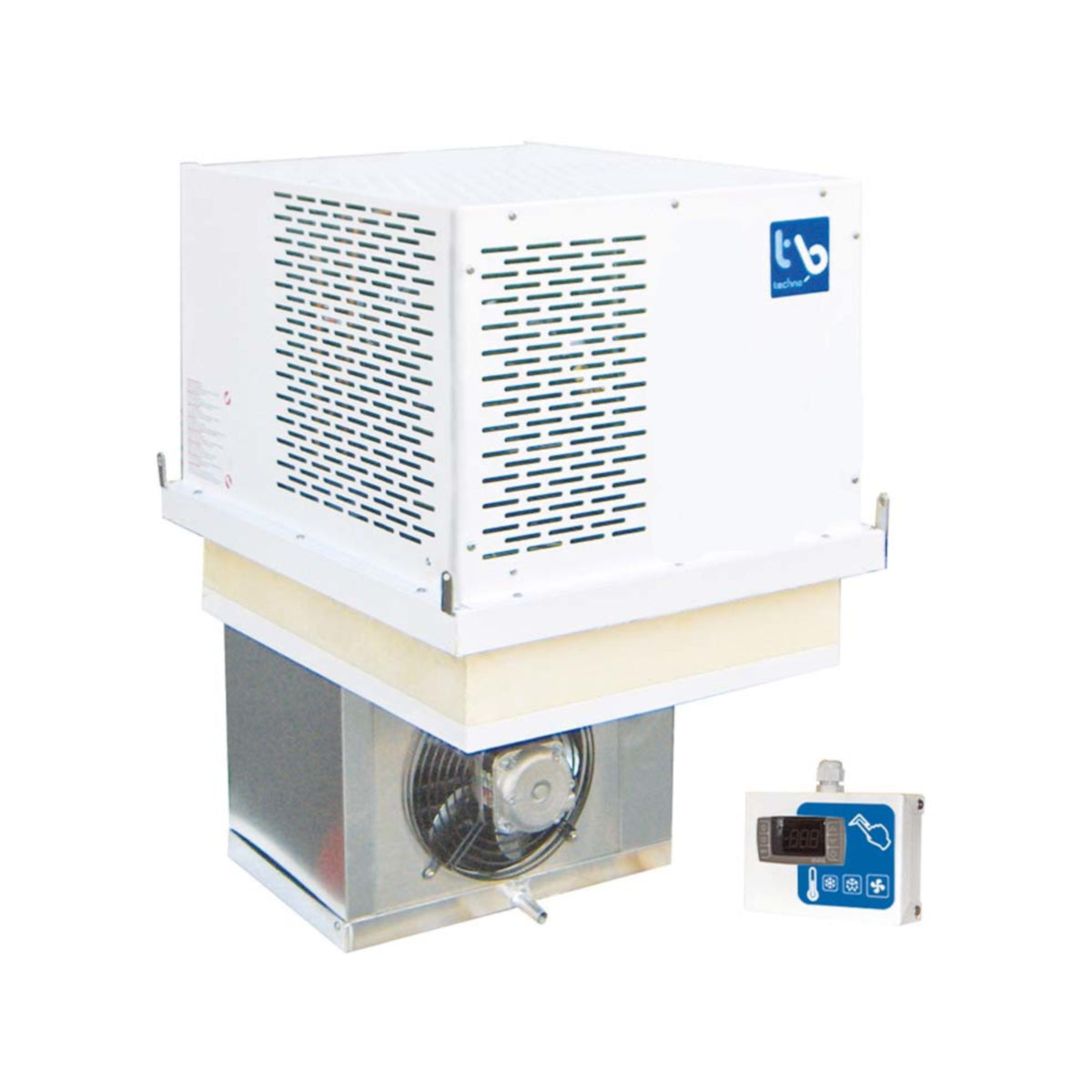

Cooling Unit PTW060 Ceiling Plug

Plug-in ceiling refrigeration unit PTW060 from Technoblock with 1.22 kW at Ti = +5°C/Ta = +32°C up to 15.5 m³. Replaces models PTX060, SFN060 and PTN060.

compact design

quick and easy installation

pre-filled with refrigerant

excl. VAT incl. VAT

2.394,00 € 2.848,86 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 2.394,00 € excl. VAT 2.848,86 € incl. VAT

Sale Sold out

Extended delivery times

In approx. 28 working days

plus shipping costs

SKU 2011020 Manufacturer Technoblock

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Ceiling Plug-in Unit PTW060

The Technoblock PTW060 plug-in ceiling refrigeration unit for normal cooling features energy-saving hot gas defrost, a high-pressure pressostat, and a remote control panel with a 5m cable. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is suspended into a pre-prepared opening in the ceiling, so that the evaporator with fan is inside the cold room and the unit is positioned on top of the cold room ceiling (see installation diagram). Replaces models PTX060, SFN060, and PTN060.

The unit is suitable for cold rooms:

up to 15.5 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
up to 10.4 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
up to 7.8 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

with a maximum wall thickness of 122 mm.

The exact performance data can be found in the technical data sheet.
