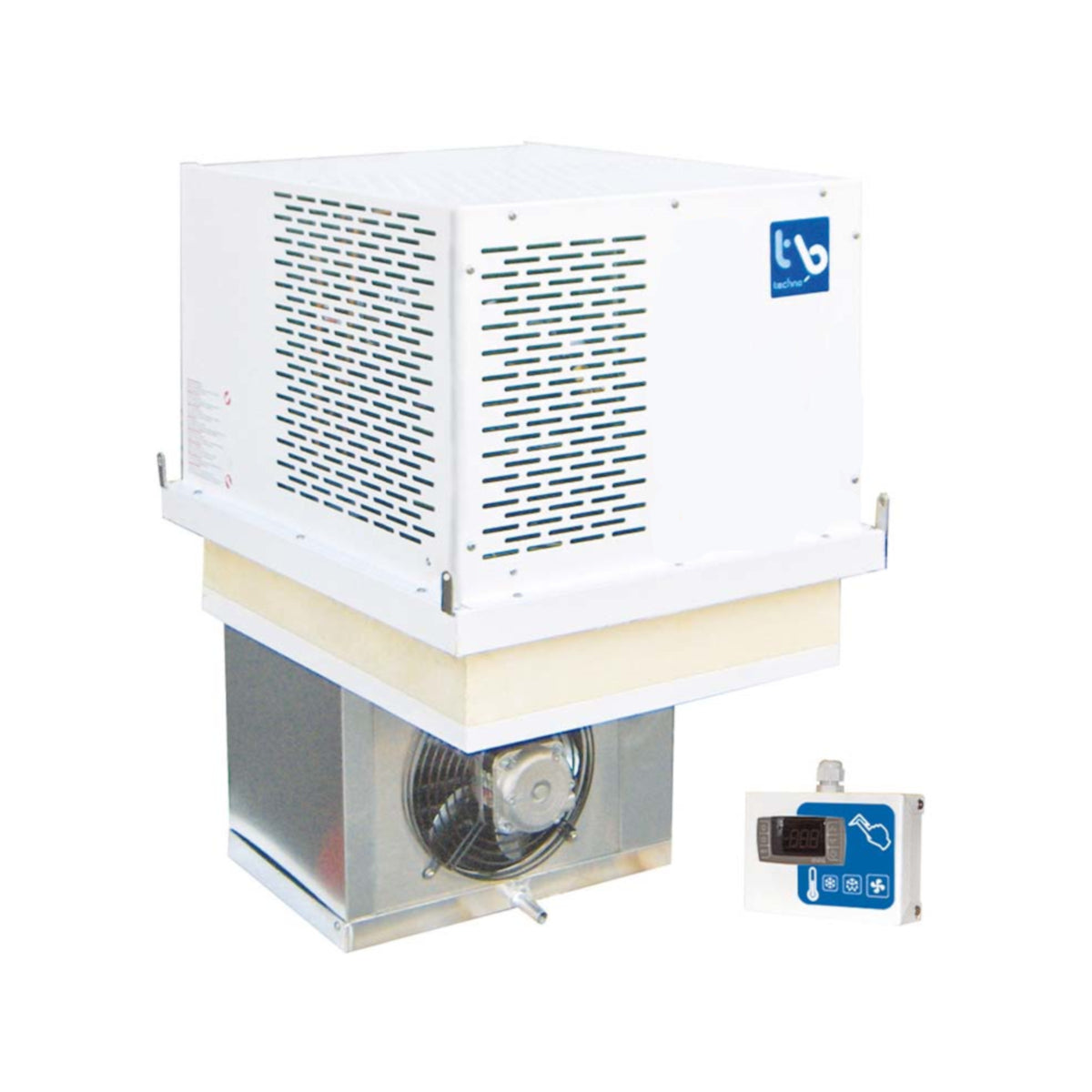

Cooling Unit PTW100 Ceiling Plug

Ceiling-mounted Refrigeration Unit PTW100

Plug-and-play ceiling-mounted refrigeration unit PTW100 from Technoblock for normal cooling with energy-saving hot gas defrost, high-pressure switch, and remote control panel with a 5m cable. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is suspended in a prepared opening in the ceiling, so that the evaporator with fan is inside the cell and the unit is positioned on top of the cell's ceiling (see installation diagram). Replaces models PTN100, PTX100, and SFN100.

The unit is suitable for cold rooms:

• up to 22.5 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 16.1 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 10.5 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

Exact performance data can be found in the technical data sheet.

General Features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 1.47 kW
• Displacement: 3.78 m³/h
• Ceiling cut-out: 740 x 520 mm
• Injection system: Capillary
• Preset temperature range: +5°C to -5°C
