Compressor NX21TBa Cubigel Huayi

Compressor NX21TBa Cubigel Huayi

Fully hermetic compressor NX21TBa from Cubigel Huayi for high and medium pressure applications.


  • high product quality

  • high equipment and system robustness

  • low energy consumption

excl. VAT incl. VAT
324,00 € 385,56 € incl. VAT
excl. VAT 0,00 € incl. VAT 324,00 € excl. VAT 385,56 € incl. VAT
Sale Sold out
Available immediately
1–3 working days
zzgl. Versandkosten

ArtNr 9201142 Hersteller Cubigel / Huayi Datenblatt

  • 12 months material warranty
  • Purchase on account
  • 14-day return policy
View full details

Product description

Compressor NX21TBa Cubigel

Hermetic compressor NX21TBa for high and medium pressure applications from Cubigel Huayi. Compressors of this series are characterized by a compact design, increased displacement, and high efficiency.

Specific performance data can be found in the technical data sheet.

General features:

  • Motor type: CSR
  • Refrigerant: R290
  • Mains voltage: 220-240V/1/50Hz
  • Displacement: 20.72 cm³
  • Oil charge: ISO VG 32 Ester, 0.5L
  • Max. operating current: 8.0 A
  • Suction connection: 9.7 mm
  • Discharge connection: 6.5 mm
  • Injection: Capillary tube / Expansion valve

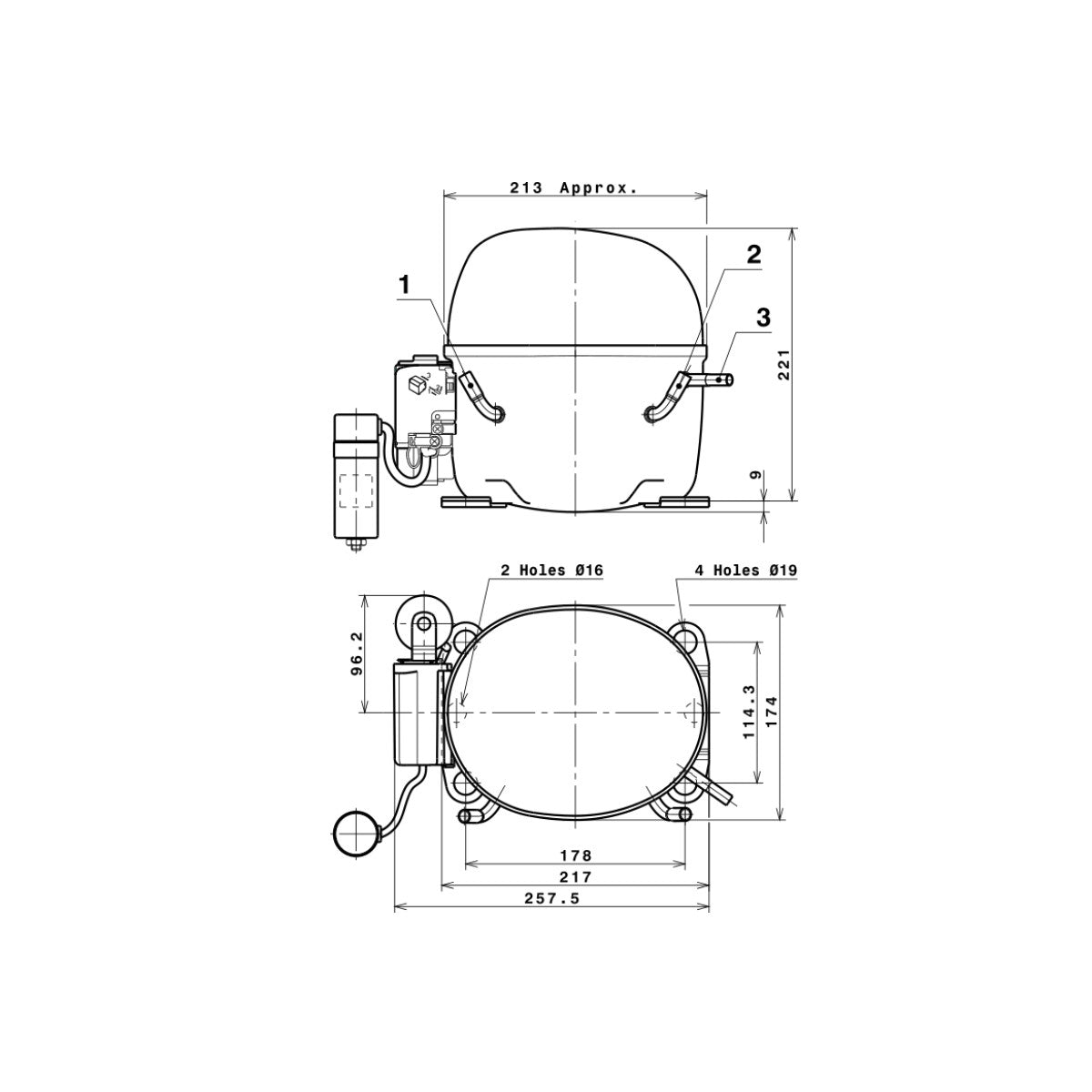

  • Dimensions (LxWxH): 213 x 174 x 221 mm
  • high product quality
  • high equipment and system robustness
  • low energy consumption

General characteristics

  • Versandklasse: Package
  • Marke: Cubigel / Huayi
  • Gewicht: 17.0 kg
