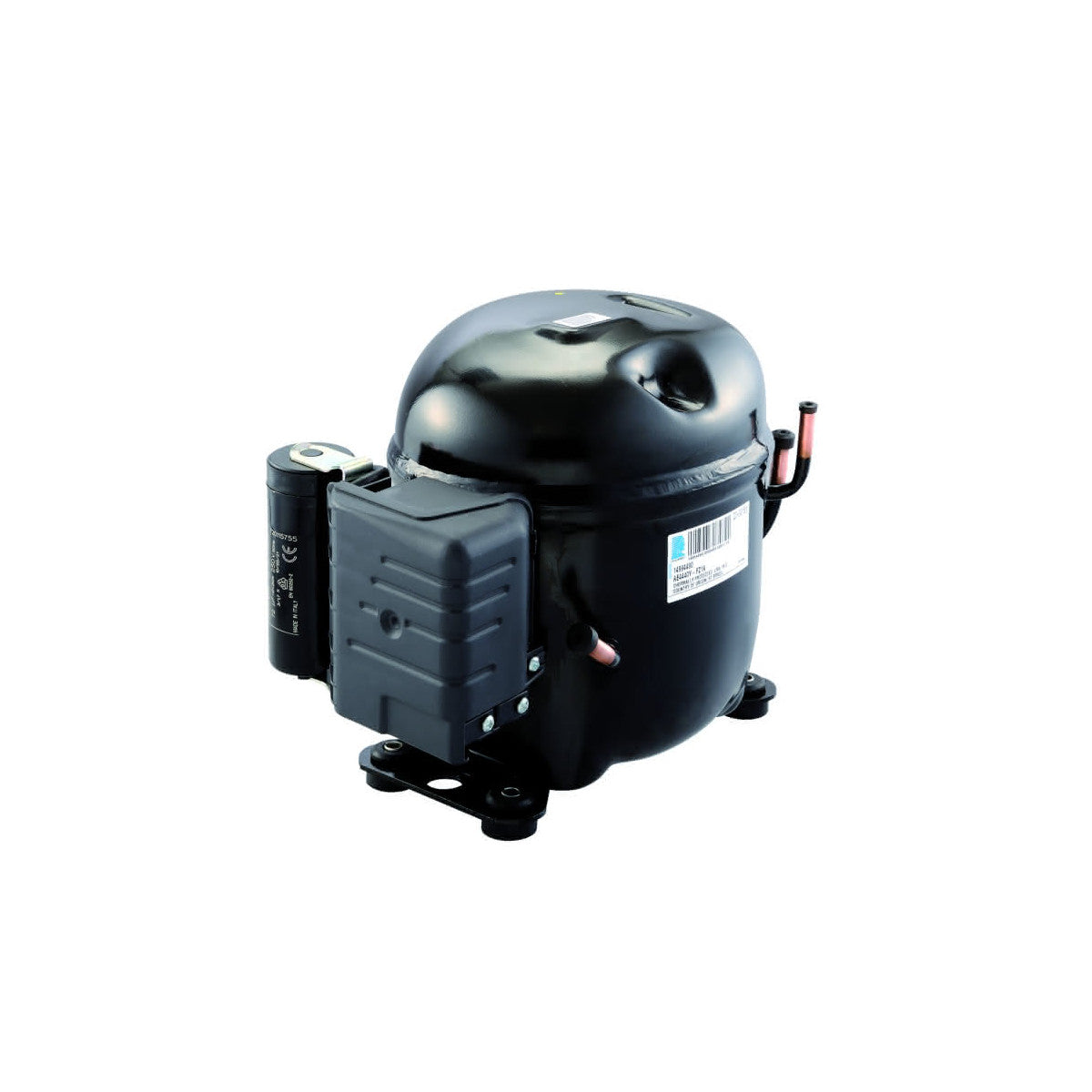

Compressor NEU2155U by Embraco Nidec
Hermetic reciprocating compressor NEU2155U for low-pressure applications from Embraco Nidec's NE series. Compressors in this series feature a fixed speed and two efficiency levels, specifically developed for use in commercial refrigeration, offering robustness and reliability for food retail and food service.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: CSIR
- Refrigerant: R290
- Mains voltage: 220-240V/1/50Hz
- Displacement: 13.54 cm³
- Oil charge: POE 22, 350 ml
- Expansion device: Capillary tube or expansion valve
- Suction connection: 8.1 mm
- Discharge connection: 6.1 mm
- Dimensions (LxWxH): 199 x 162 x 201.1mm
- high product quality
- high equipment and system robustness
- low energy consumption
