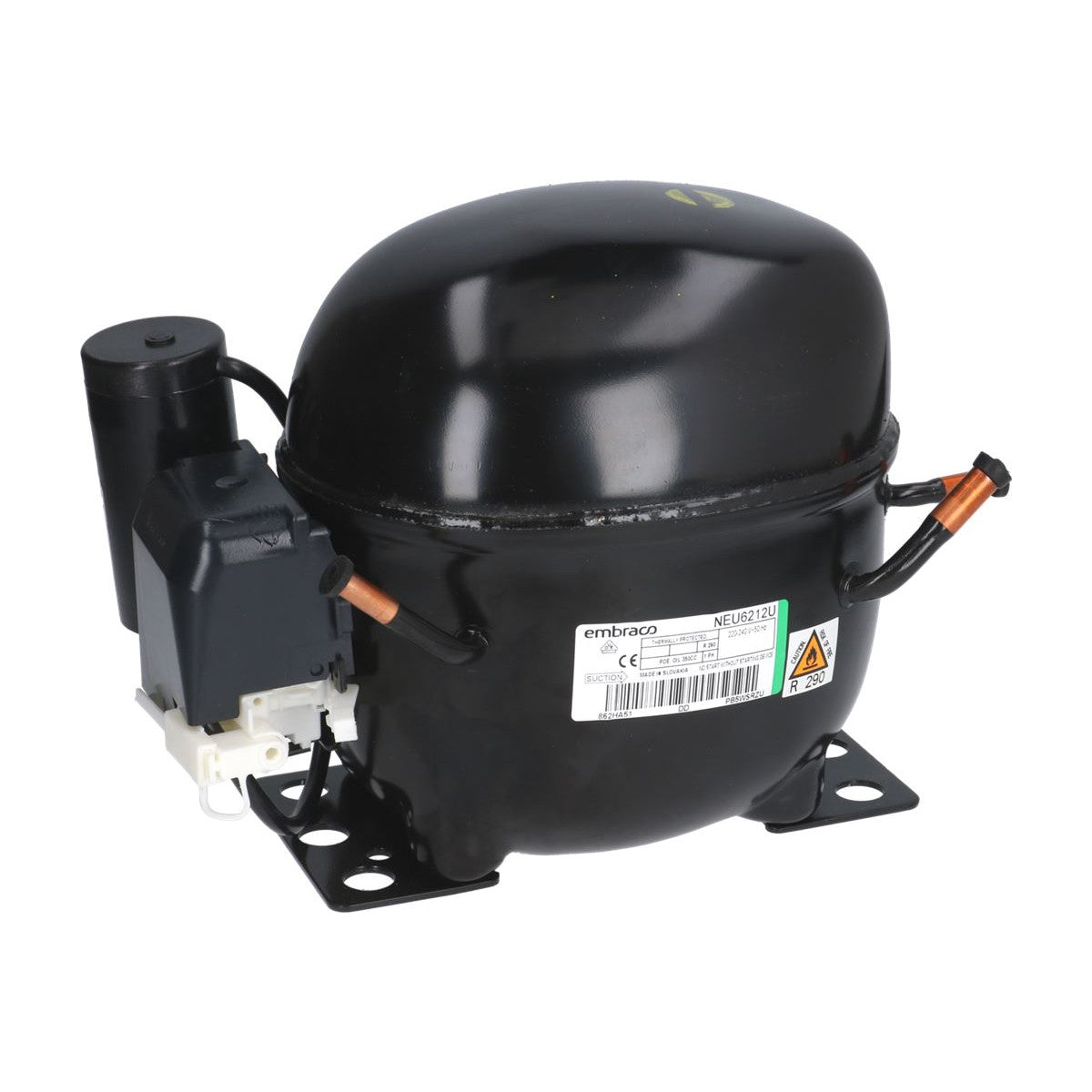

Compressor NEK6212U from Embraco Nidec
Hermetic reciprocating compressor NEK6212U for the medium pressure range from the NE series by Embraco Nidec. Compressors in this series feature a fixed speed and two efficiencies, specially developed for use in commercial refrigeration, offering robustness and reliability for food retail and food service.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: CSIR
- Refrigerant: R290
- Mains voltage: 220-240V/1/50Hz
- Displacement: 8.77 cm³
- Oil charge: POE 22, 350 ml
- Expansion device: Capillary tube or expansion valve
- Suction connection: 8.1 mm
- Discharge connection: 6.1 mm
- Dimensions (LxWxH): 199 x 162 x 188.4mm
- high product quality
- high equipment and system robustness
- low energy consumption
