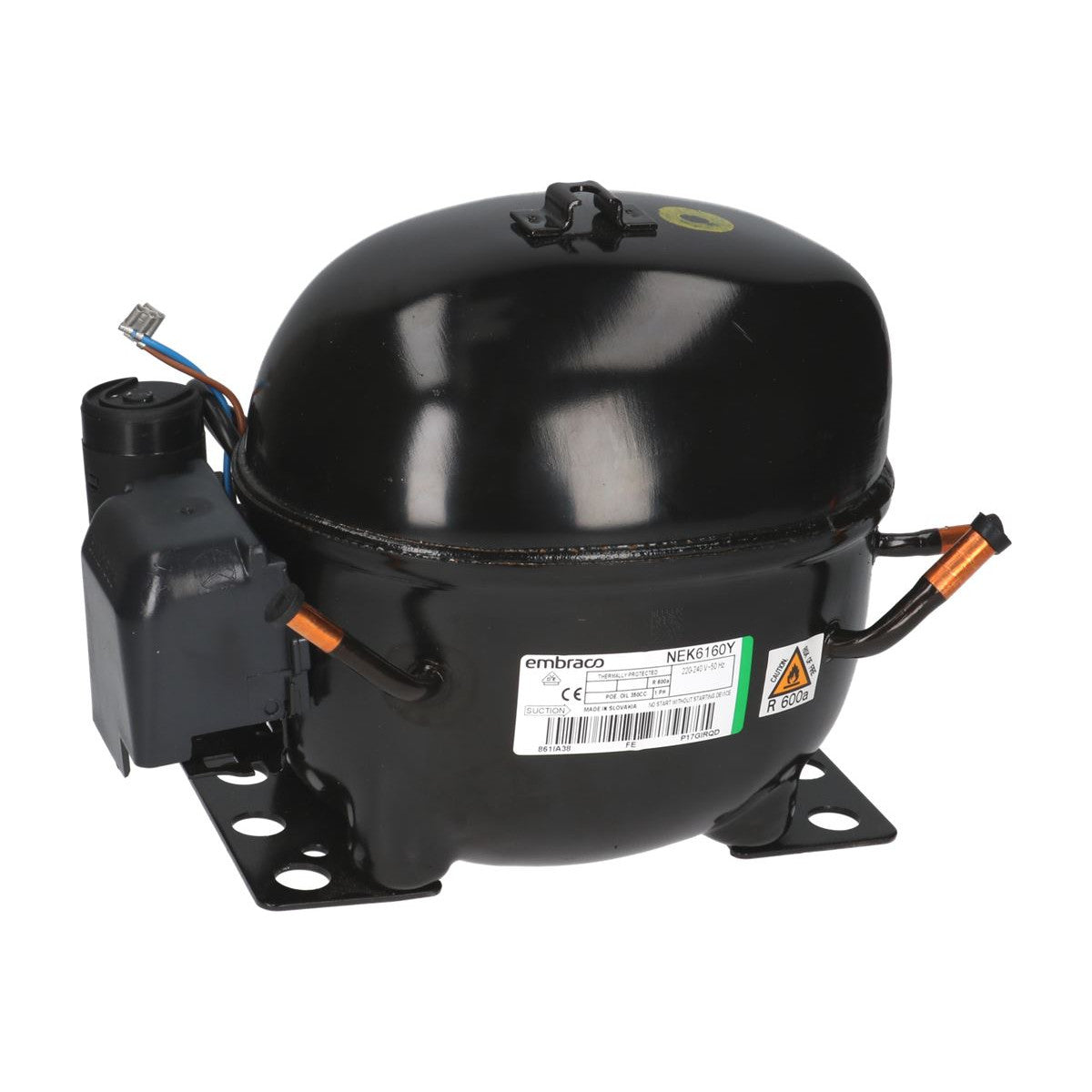

Compressor NEK6160Y by Embraco Nidec
Hermetic reciprocating compressor NEK6160Y for high-pressure applications from the NE series by Embraco Nidec. Compressors of this series feature a fixed speed and two efficiencies, specially developed for use in commercial refrigeration, offering robustness and reliability for food retail and food supply. Can be used as an alternative for ZEL HPKD190A and Embraco EMT6160Y.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: CSIR
- Refrigerant: R600a
- Mains voltage: 220-240V/1/50Hz
- Displacement: 12.11 cm³
- Oil charge: POE 22, 350 ml
- Expansion device: Capillary tube or expansion valve
- Suction connection: 8.1 mm
- Discharge connection: 6.1 mm
- Dimensions (LxWxH): 199 x 162 x 188.4mm
- high product quality
- high equipment and system robustness
- low energy consumption
