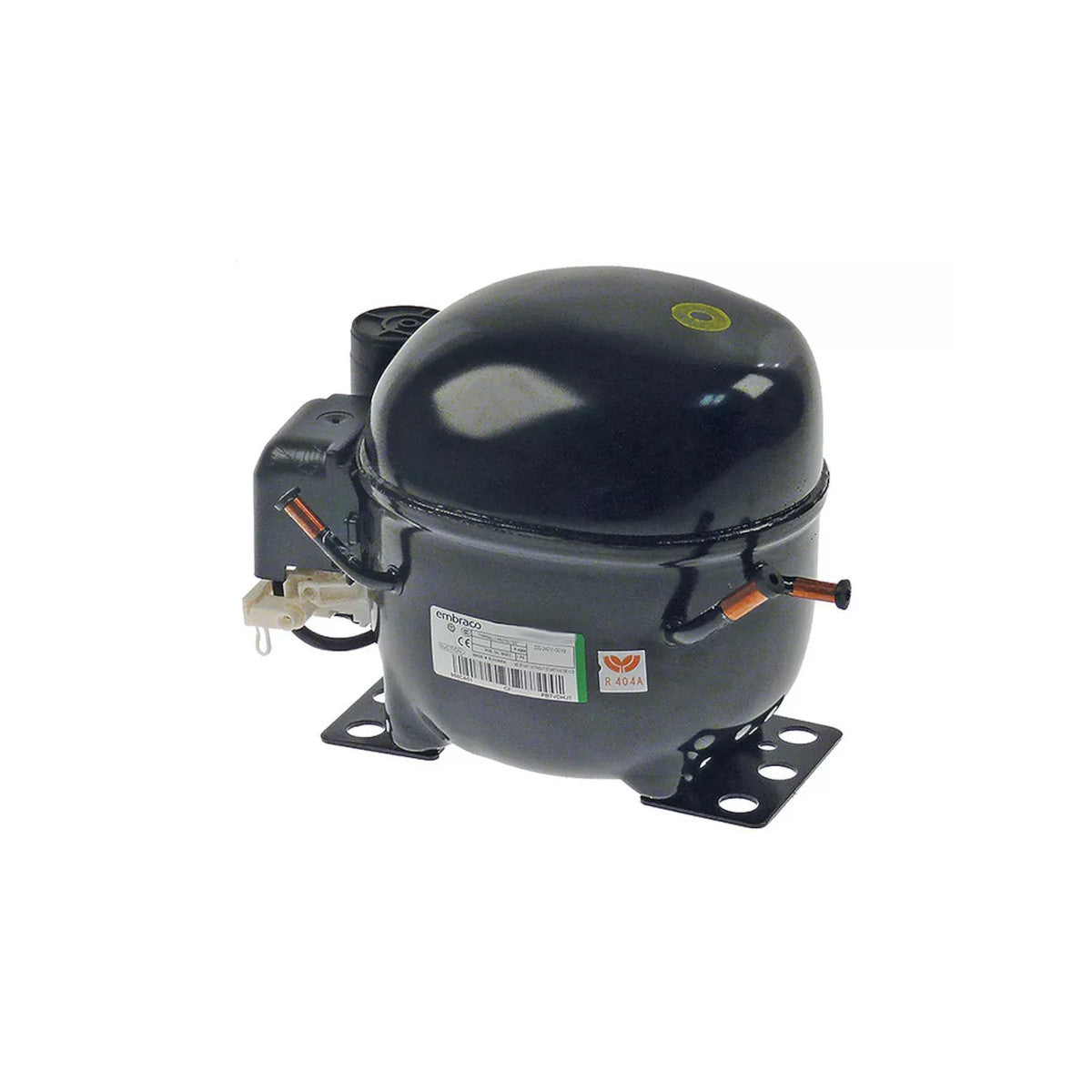

Compressor NEK2134GK from Embraco Nidec
Hermetic reciprocating compressor NEK2134GK for low-pressure applications from the Embraco Nidec NE series. Compressors in this series feature a fixed speed and two efficiencies, specifically designed for use in commercial refrigeration, offering robustness and reliability for food retail and food service.
Exact performance data can be found in the technical data sheet.
General features:
- Motor type: CSIR
- Refrigerant: R404A
- Power supply: 208-230V/1/60Hz
- Displacement: 8.77 cm³
- Oil charge: POE 22, 350 ml
- Expansion device: Capillary tube or expansion valve
- Suction connection: 8.1 mm
- Discharge connection: 6.45 mm

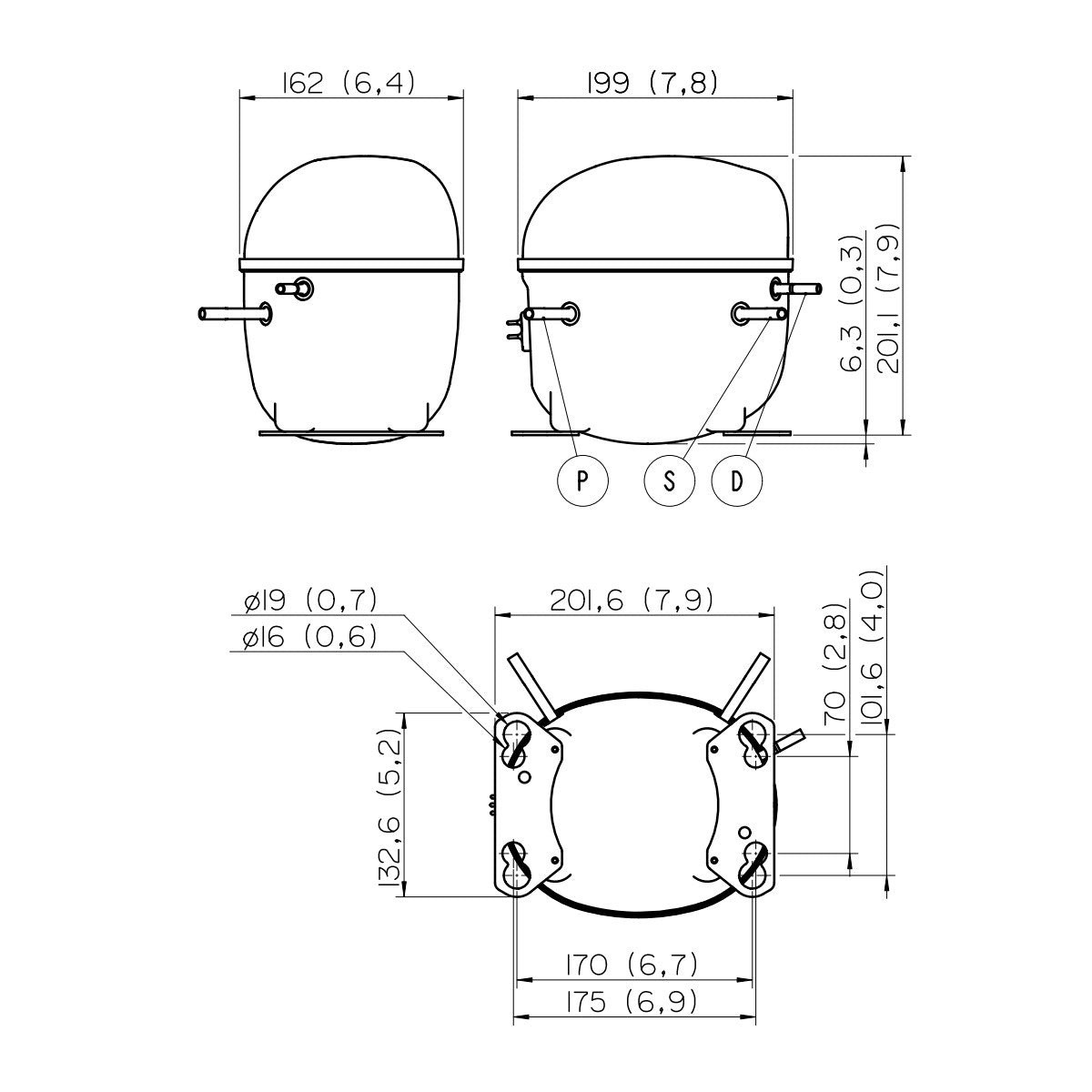

- Dimensions (LxWxH): 199 x 162 x 201mm
- high product quality
- high equipment and system robustness
- low energy consumption
